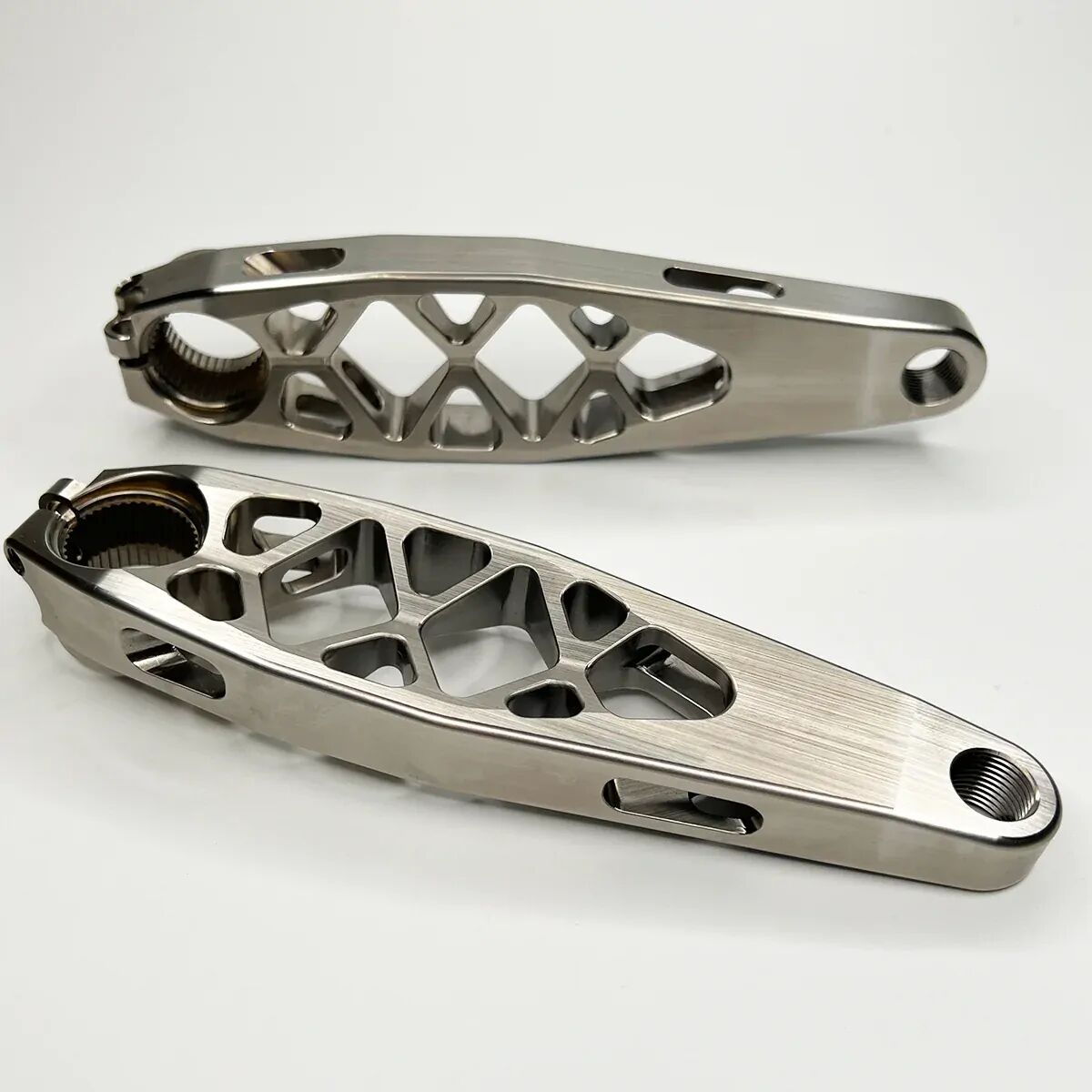

Titanium crank arms for eMTBs with a Shimano EP8 motor, machined by 5DEV on a 5-axis CNC from solid titanium bar stock in San Diego. The 157.5mm length suits riders after 5DEV's shorter-crank approach: fewer rock and pedal strikes on technical climbs.

Highlights

  • For the Shimano EP8 motor
  • 5-axis CNC-machined from solid titanium bar stock
  • 157.5mm crank length
  • Raw titanium finish
  • Pinch-bolt fixing to the EP8 spindle, as on 5DEV's alloy EP8 eCranks
  • Designed and made in San Diego, California

Fitting

Fitting eCranks is a separate workshop service and isn't included in the price. The Tune workshop can fit them to your pedal-assist eBike and confirm your motor first. 5DEV's EP8 mounting instructions: line up the slot in the arm with the small hole in the motor spindle, fit the crank cap with thread locker and torque it to 8Nm (6mm hex), then tighten the two M6 pinch bolts (5mm hex) alternately to 14Nm, inside bolt first, with thread locker on each. The arms go on 180° apart. 5DEV asks for the job to be done by an experienced eBike mechanic and for the bolts to be re-checked after the first ride.

5DEV eCranks by motor

5DEV makes a separate eCrank for each motor interface. Its current eCrank range includes:

  • Shimano EP8 (5DEV says its EP8 cranks also work on EP801): R-SPEC EP8 eCranks and Titanium EP8 eCranks
  • Bosch, TQ, Avinox and the 2025 Specialized Turbo Levo 4: R-SPEC Bosch/TQ/Avinox eCranks and Titanium Bosch/TQ/Avinox eCranks
  • Specialized Turbo Levo and Kenevo, first three generations (Brose motor): Specialized Brose eCranks and Titanium Specialized Brose eCranks
  • Specialized Turbo Levo SL and Kenevo SL (SL 1.2 motor): SL eCranks with the SRAM DUB spline
  • Fazua Ride 60: ETOR eCranks

Compatibility & fit

  • Made for the Shimano EP8 motor. 5DEV's titanium EP8 page names the EP8 only.
  • Riding an EP801 or another Shimano motor? Check your motor's crank interface with our workshop before ordering.
  • 5DEV doesn't publish a Q-factor or weight for the titanium version.
  • No chainring is listed with the arms.
  • Unsure what your bike has? Check your motor's crank interface with our workshop before ordering.
5DEV gives its titanium cranks a limited lifetime warranty against defects in materials or workmanship (its other products carry a limited five-year warranty from the date of manufacture). If 5DEV confirms a defect, it replaces the product with a comparable model. If you suspect a defect, stop riding and contact us before replacing any affected parts: 5DEV's warranty is void if another maker's component is fitted in place of the 5DEV part. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with 5DEV's Australian distributor.
  • Titanium eCranks for the Shimano EP8 motor
  • 5-axis CNC-machined from solid titanium bar stock
  • 157.5mm crank length, raw finish
  • Two M6 pinch bolts per arm (14Nm) and a crank cap (8Nm)
  • Made in San Diego, California
Brand5DEV
ModelTitanium EP8 eCrank
MotorShimano EP8
MaterialTitanium, 5-axis CNC-machined from solid bar stock
Crank length157.5mm
FinishRaw titanium
FixingCrank cap 8Nm (6mm hex); two M6 pinch bolts per arm, 14Nm (5mm hex), with thread locker
Made inSan Diego, California
5DEV codeTESEP8-R1575-T51
SKU DSG-5DTESEP8-R1575-T51
