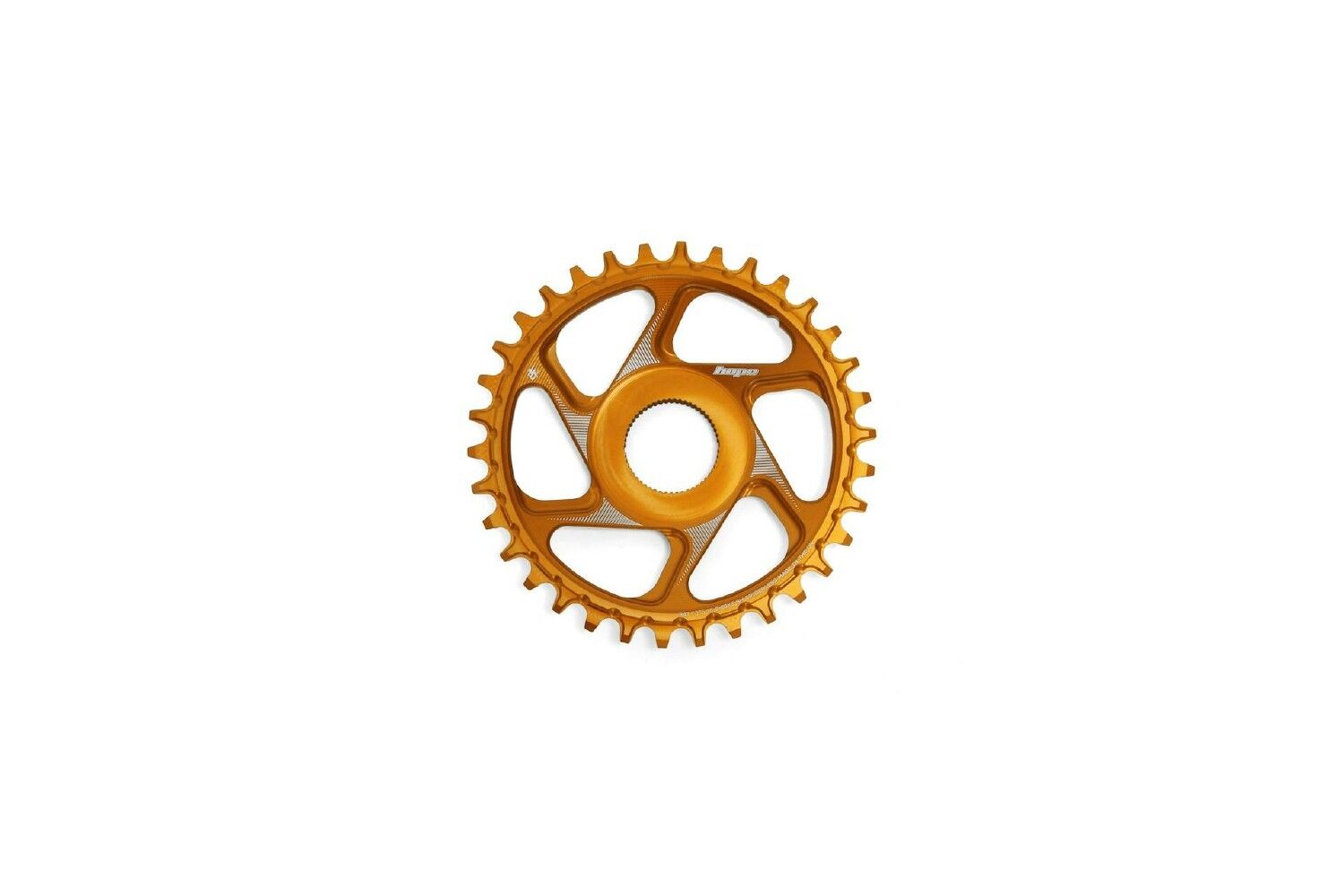

An e-bike motor puts far more load through a chainring than your legs ever will. Hope's R22 e-bike ring mounts straight to your Shimano motor in place of the stock spider, giving you a lighter, cleaner and tougher drive CNC machined in one piece from billet.

Highlights

  • Direct mount – replaces the full spider assembly
  • Asymmetric narrow/wide tooth profile holds the chain without a guide
  • 9/10/11/12-speed, including SRAM T-Type and Shimano HG+
  • CNC machined 7075-T6 aluminium, hard anodised
  • 52mm chainline to suit 148mm Boost frames

Made for motor torque

The R22 tooth profile is engineered to work across modern drivetrains, sheds mud better, holds the chain more securely and copes with extreme chain angles on 1x set-ups. It also tolerates more chain wear before shifting suffers, so it lasts longer. The spiderless legs are redesigned for extra strength and stiffness.

Options

Teeth34T or 36T
ColourBlack, Silver, Blue, Red, Orange, Purple

Compatibility & fit

Hope's Shimano version fits the Shimano E8000 motor, at a 52mm Boost chainline. Hope notes its e-bike rings are not compatible with the Gen 5 motor. Removing the stock ring needs Shimano TL-FC39 or equivalent for the spider lockring. Fitting is a separate Tune Cycles workshop service – book a workshop service.

Hope covers its components for two years from the original date of purchase against manufacturer defects in material and workmanship. The warranty does not cover damage caused by misuse or by not following the instructions in the manual. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.
  • Direct mount to the motor, no spider
  • R22 asymmetric narrow/wide tooth profile
  • 9/10/11/12-speed incl. SRAM T-Type and Shimano HG+
  • 7075-T6 aluminium, hard anodised
  • 52mm Boost chainline
  • 34T or 36T
BrandHope
Motor systemShimano E8000 motor
MountDirect mount (spiderless)
MaterialCNC machined 7075-T6 aluminium, hard anodised
Chainline52mm (148mm Boost)
Speeds9, 10, 11 and 12-speed incl. SRAM T-Type and Shimano HG+
Options34T or 36T; Black, Silver, Blue, Red, Orange, Purple
SKU BSP-HOPCRR22ESHI
Brand Hope
