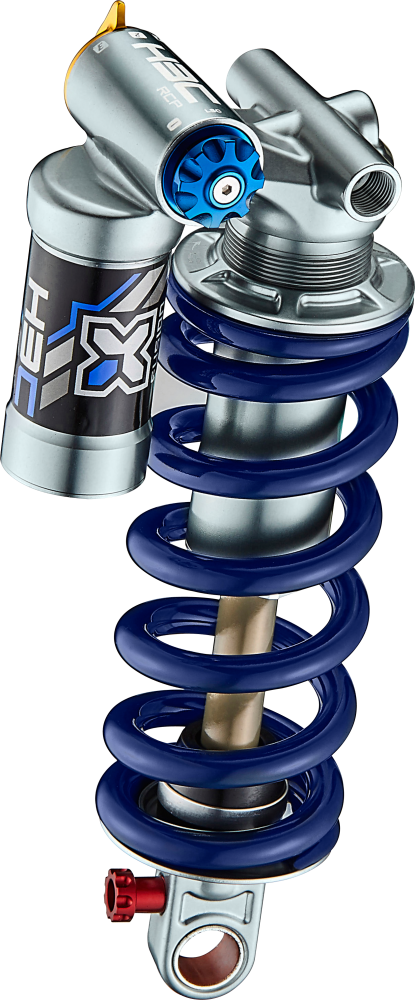

The X-Fusion H3C RCP is a lightweight coil rear shock for all-mountain and enduro riding, with a three-position platform and low-speed compression adjustment to suit climbs and descents alike. This trunnion-mount version is sized 185x55mm.

Highlights

  • Lightweight proprietary metallurgy coil spring
  • Three-position platform with complementary low-speed compression
  • Rebound adjustment
  • Metric and trunnion mounting available
  • IGUS DU bushings

Damper and adjustment

The RCP damper gives rebound and three-position platform compression adjustment (open, mid and firm) plus a low-speed compression fine adjustment, running on a lightweight coil spring rated for enduro-level impacts.

Compatibility & fit

This 185x55mm trunnion shock is not for use on strut-mount or yoke-equipped frames. For a 50-55mm stroke, X-Fusion specifies a maximum strut length of 98mm between the shock mount and pivot axis. Our workshop can fit and set up the shock on a compatible frame.

X-Fusion rear shocks are covered by the brand's standard limited warranty against manufacturing defects. For warranty support, return the product to Tune Cycles and we'll manage the claim with Link Sports, X-Fusion's Australian distributor.
  • Lightweight proprietary metallurgy coil spring
  • Three-position platform compression
  • Low-speed compression adjustment
  • Rebound adjustment
  • IGUS DU bushings
MountTrunnion, 185 x 55mm
SpringCoil
Weight318g (without spring)
AdjustmentsRebound, three-position platform, low-speed compression
BushingsIGUS DU
Max strut length (50-55mm stroke)98mm
SKU LNK-XFU-816022010688
Brand X-Fusion
Shipping Weight 0.4980kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.350m
