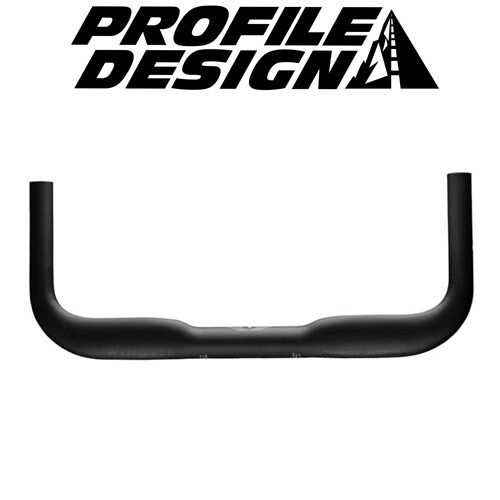

Profile Design WING/10a Alloy Aero Base Bar 40cm
SKU code: BCP-RHW10401
The WING/10a is an aluminium aero basebar with flippable straight grips, so you can change grip height by 10 mm to suit your riding and comfort. Profile Design calls it the most fit-versatile alloy basebar it has made. This is the 40 cm width.
Highlights
- Truncated aerofoil (Kamm tail) wing, UCI 3:1 compliant
- Flippable design moves the grips 10 mm (±5 mm)
- Grips can be trimmed by up to 30 mm
- Tidied underside where the cables used to exit
- 6061-T6 aluminium, 31.8 mm clamp, Di2 compatible
Aero and fit
The truncated aerofoil stays within UCI rules while performing like a deeper section. Flip the bar to set the grips high (15.9 mm grip stack) or low (5.9 mm). Profile Design recommends the low position for the best aero result, because it increases the gap to the armrests. The truncated wing also makes the tops more comfortable when you sit up.
Compatibility & fit
Clamps a 31.8 mm stem; Profile Design says it can be used with any Profile Design clip-on aerobar, brake lever and stem option. The basebar manual lists the Sonic, Supersonic, Subsonic, Neosonic and Hypersonic brackets, other Profile Design clip-ons with a 31.8 mm basebar clamp, and the Aerobar Bracket Riser Kit (15–70 mm). Only internally routed brake levers fit. Torque: stem clamp 6 Nm, aerobar bracket clamp 6 Nm; overtightening either clamp can crack the bar.
Aerobar fitting and position set-up is a separate workshop service and isn't included in the price. Our workshop can fit it and set up your position.
Profile Design warrants this product to the original retail purchaser against defects in materials and workmanship for two years from the date of original retail purchase. The warranty does not cover products that have been modified, misused, involved in a crash or impact, or damaged by improper assembly or by failing to follow the installation instructions.
This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.
For warranty support, return the product to Tune Cycles and we'll manage the claim with Profile Design's Australian distributor.
- 40 cm centre to centre, 100 mm clamp width
- Flippable grips: 5.9 mm or 15.9 mm grip stack
- Grips trimmable by up to 30 mm
- Kamm-tail aerofoil, UCI 3:1 compliant
- Internal routing for internally routed brake levers, Di2 compatible
- 6061-T6 aluminium, matte black
| Width | 40 cm (centre to centre) |
|---|---|
| Centre clamp diameter | 31.8 mm |
| Clamp width | 100 mm |
| Material | 6061-T6 aluminium |
| Finish | Matte black |
| Grip offset | ±5 mm (flippable) |
| Grip stack | High 15.9 mm, low 5.9 mm |
| Max grip cut | 30 mm |
| Pursuit OD / ID | 23.7 / 20.3 mm |
| Brake levers | Internally routed only |
| Di2 | Compatible |
| UCI | 3:1 compliant |
| Weight | 265 g (38 cm, brand-listed) |
| Torque | Stem clamp 6 Nm, aerobar clamp 6 Nm |
| SKU | BCP-RHW10401 |
| Model # | RHW10401 |
| Barcode # | 0723660007126 |
| Brand | Profile Design |
| Shipping Weight | 0.3500kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.100m |
| Shipping Length | 0.800m |
