Profile Design WING/20c Carbon Aero Base Bar 40cm
SKU code: BCP-RHW20C401

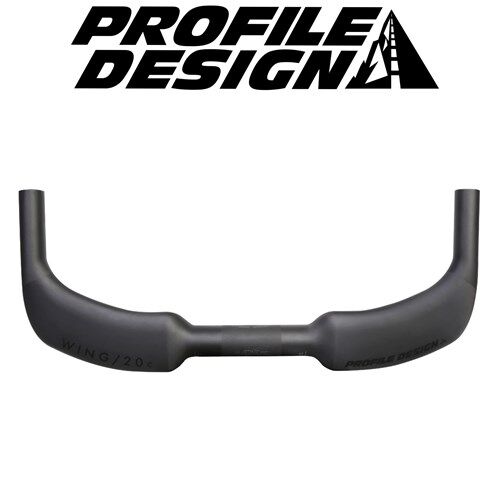

The WING/20c is a carbon aero basebar shaped for aerodynamics, strength and stiffness, with a flip feature that moves the hand grips by 20 mm. This is the 40 cm width.
Highlights
- Truncated aerofoil shape balancing aero, strength and comfort
- Flip the bar to change grip position by 20 mm (±10 mm)
- Smoother wing-to-grip transition for airflow and a better hand rest
- Cable routing designed around the flip feature and modern tri bikes
- Carbon, 31.8 mm clamp, Di2 compatible
Shape and flip
The wing transitions into the grip more smoothly than before, which helps airflow and gives a better platform to rest your hands. Flipping the bar makes it easier to find a comfortable position at the brake levers. Carbon bars come with cable hole plugs.
Compatibility & fit
Clamps a 31.8 mm stem; Profile Design says it can be used with any Profile Design clip-on aerobar, brake lever and stem option. The basebar manual lists the Sonic, Supersonic, Subsonic, Neosonic and Hypersonic brackets, other Profile Design clip-ons with a 31.8 mm basebar clamp, and the Aerobar Bracket Riser Kit (15–70 mm). Only internally routed brake levers fit. Torque: stem clamp 6 Nm, aerobar bracket clamp 6 Nm; overtightening either clamp can crack the bar.
Aerobar fitting and position set-up is a separate workshop service and isn't included in the price. Our workshop can fit it and set up your position.
Profile Design warrants this product to the original retail purchaser against defects in materials and workmanship for two years from the date of original retail purchase. The warranty does not cover products that have been modified, misused, involved in a crash or impact, or damaged by improper assembly or by failing to follow the installation instructions.
This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.
For warranty support, return the product to Tune Cycles and we'll manage the claim with Profile Design's Australian distributor.
- 40 cm centre to centre, 100 mm clamp width
- Flippable: ±10 mm (20 mm) grip offset
- Truncated aerofoil shape
- Internally routed brake levers only, Di2 compatible
- Carbon, matte black, cable hole plugs included
| Width | 40 cm (centre to centre) |
|---|---|
| Centre clamp diameter | 31.8 mm |
| Clamp width | 100 mm |
| Material | Carbon |
| Finish | Matte black |
| Grip offset | ±10 mm (20 mm) |
| Pursuit OD / ID | 24 / 19.8 mm |
| Brake levers | Internally routed only |
| Di2 | Compatible |
| Weight | 200 g (38 cm, brand-listed) |
| Torque | Stem clamp 6 Nm, aerobar clamp 6 Nm |
| SKU | BCP-RHW20C401 |
| Model # | RHW20C401 |
| Barcode # | 0723660009861 |
| Brand | Profile Design |
| Shipping Weight | 0.3500kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.100m |
| Shipping Length | 0.800m |
