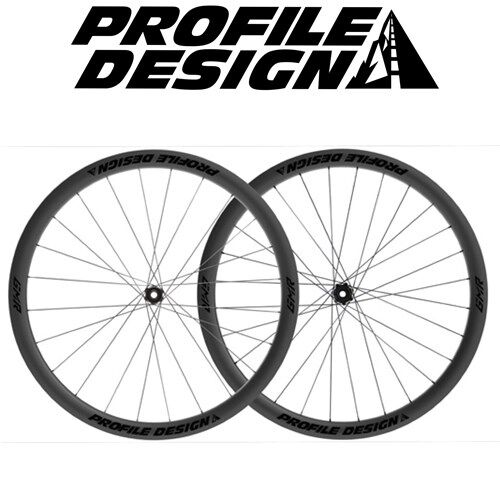

Profile Design GMR 38 Carbon Tubeless Disc-Brake Wheelset 700c
SKU code: BCP-W3826FCCDBS1
Profile Design calls the GMR 38 a great all-rounder: the 38 mm rim gives an aero boost over a standard alloy wheelset without adding so much side area that the wind pushes you around, and the shallower rim is lighter for hilly terrain. It's the pick for everyday riding, especially where it's often windy.
Highlights
- 38 mm deep full carbon clincher rim, tubeless ready
- 19 mm internal width, tests fastest with a 28 mm tyre in most wind angles (Profile Design)
- Centre Lock rotor mount, 12 mm thru-axles
- Sapim CX-Ray bladed spokes with Sapim Polyax double square nipples
- Hand-built, 1600 g a pair
Rims and tyres
The GMR 38 is optimised for wide tyres at lower pressure, for low rolling resistance and compliance, and its 19 mm internal width suits rough roads. Profile Design lists tyre widths of 28–38 mm (700c) and a maximum tyre pressure of 70–100 psi; also follow the limit on the tyre sidewall. Tubeless valve stems and tubeless rim strips are included.
Hubs and build
Proprietary precision-machined 6061-T6 alloy hubs with an extra-stiff shell run sealed cartridge bearings (6901 front, 6802 rear). The front has 20 spokes and the rear 24, all Sapim CX-Ray straight-pull bladed spokes with 7075 alloy Polyax double square external nipples. Spare spokes (two of each length), eight nipples and eight nipple washers come in the box.
Compatibility & fit
Front 12 x 100 mm and rear 12 x 142 mm thru-axle, Centre Lock rotors. The freehub takes Shimano/SRAM 9, 10 and 11-speed cassettes; a 10-speed cassette spacer is included because the wheels are designed around 11-speed cassettes. For 12-speed SRAM XDR, fit Profile Design's aftermarket XDR freehub body (sold separately). Maximum recommended rider weight is 220 lb (about 100 kg). Follow Profile Design's GMR Carbon Tubeless Disc-Brake Wheelset installation instructions.
Fitting, tubeless set-up and moving your cassette and rotors across are workshop services, not included in the price. Our workshop can take care of all of it.
Profile Design warrants this product to the original retail purchaser against defects in materials and workmanship for two years from the date of original retail purchase. The warranty does not cover products that have been modified, misused, involved in a crash or impact, or damaged by improper assembly or by failing to follow the installation instructions, and it does not cover normal wear of parts such as rims, spokes and bearings. For a wheel claim, the serial number must be visible on the rim.
This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.
For warranty support, return the product to Tune Cycles and we'll manage the claim with Profile Design's Australian distributor.
- 38 mm deep UD carbon clincher rim, tubeless ready
- 19 mm internal, 26 mm external rim width
- Centre Lock, 12 x 100 / 12 x 142 mm thru-axle
- Sapim CX-Ray spokes, 20 front / 24 rear, hand-built
- Shimano/SRAM 9–11-speed freehub, XDR available separately
- 1600 g wheelset weight
| Wheel size | 700c |
|---|---|
| Rim | Full carbon clincher, tubeless ready, UD carbon |
| Rim depth | 38 mm |
| Rim width | 26 mm external, 19 mm internal |
| Tyre width | 700c x 28–38 mm |
| Max tyre pressure | 70–100 psi (also refer to tyre sidewall) |
| Hubs | 6061-T6 alloy, sealed cartridge bearings (6901 front, 6802 rear) |
| Axles | 12 x 100 mm front, 12 x 142 mm rear thru-axle |
| Rotor mount | Centre Lock |
| Freehub | Shimano/SRAM 9/10/11-speed; XDR with aftermarket freehub body |
| Spokes | Sapim CX-Ray straight-pull bladed; 20 front, 24 rear |
| Spoke pattern | Front 2-cross, rear 3-cross |
| Nipples | 7075 alloy Polyax double square, external |
| Weight | 680 g front, 920 g rear, 1600 g pair |
| Max rider weight | 220 lb (about 100 kg) |
| Includes | Tubeless valve stems, tubeless rim strips, 10-speed cassette spacer, 8 spare spokes, 8 nipples, 8 nipple washers |
| SKU | BCP-W3826FCCDBS1 |
| Model # | W3826FCCDBS1 |
| Barcode # | 0723660009229 |
| Brand | Profile Design |
| Shipping Weight | 2.6000kg |
| Shipping Width | 0.700m |
| Shipping Height | 0.240m |
| Shipping Length | 0.700m |
