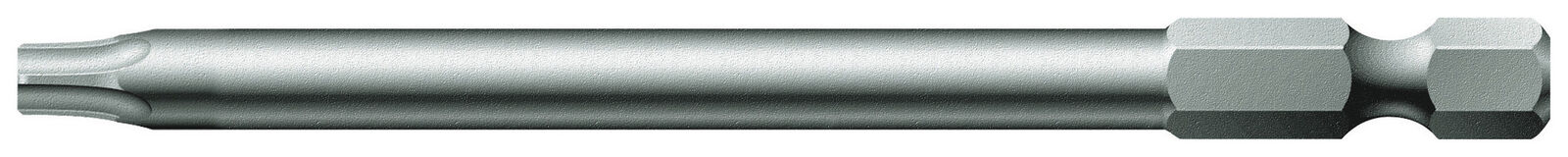

Bits for TORX PLUS screws, whose elliptical profile spreads the load over a bigger contact area than standard TORX, so more torque goes in and both screw and bit last longer.

Highlights

  • For TORX PLUS (IP) screws
  • Elliptical profile: larger torque-transferring flanks than standard TORX
  • Tough bits resist premature tip breakage
  • 1/4" hex shank to DIN ISO 1173-F 6.3
  • 50 or 89 mm length depending on size

TORX PLUS

Compared with the circular form of the standard TORX profile, TORX PLUS uses an elliptical form to enlarge the six flanks that carry torque. Wera says this transfers higher torque and extends the life of screw and tool.

Options

SizeLengthBlade diameterWera article no.
10 IP50 mm4.0 mm05134683001
15 IP50 mm4.0 mm05134685001
20 IP50 mm4.5 mm05134687001
25 IP89 mm6.0 mm05134674001
27 IP89 mm6.0 mm05134675001
30 IP50 mm6.0 mm05320430001
40 IP89 mm–05134677001

Compatibility & fit

For TORX PLUS (IP) screws only; check the screw head marking, as standard TORX screws take TX bits. 1/4" hex shank for bit-holding screwdrivers and holders.

Wera warrants its tools against defects in materials and workmanship. Bits and bit holders are wear items, so wear from normal use, misuse or modification is not a defect. This sits alongside your rights under the Australian Consumer Law.

For warranty support, return the product to Tune Cycles and we'll manage the claim with Wera's Australian distributor.

  • For TORX PLUS (IP) screws
  • Elliptical profile: larger torque-transferring flanks than standard TORX
  • Tough bits resist premature tip breakage
  • 1/4" hex shank to DIN ISO 1173-F 6.3
  • 50 or 89 mm length depending on size
ProfileTORX PLUS (IP)
Drive1/4" hex (DIN ISO 1173-F 6.3)
Sizes10, 15, 20, 30 IP (50 mm); 25, 27, 40 IP (89 mm)
TypeTough (Z)
