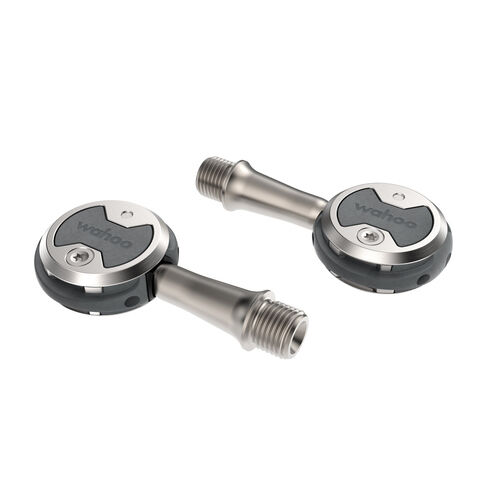

Wahoo SPEEDPLAY NANO Titanium Road Pedals
SKU code: FES-WFPRN1S53
In Stock
For climbers and racers counting every gram, the SPEEDPLAY NANO pairs a titanium spindle with a carbon composite body to make the lightest pedal in Wahoo's SPEEDPLAY range, at 168 g per pair.
Highlights
- The lightest SPEEDPLAY: 168 g per pair
- Titanium spindle and carbon composite body
- Dual-sided entry: clip in from either side
- Adjustable float from 0° to 15°
- Standard Tension walkable cleats included
Light, with one limit
Titanium saves weight over the ZERO's stainless spindle, but it comes with a rider-weight limit: Wahoo rates the NANO to 82 kg (180 lb). Riders above that should choose the ZERO, AERO or COMP, which have no limit.
Same adjustable SPEEDPLAY fit
The cleat adjusts fore-aft (up to 13 mm), side to side and for float (0° to 15°), each independently. Stack height is a low 11.5 mm with 3-hole shoes, keeping your foot close to the spindle.
Compatibility & fit
Fits standard 3-hole road shoes. Speedplay-specific 4-hole shoes need Wahoo's 4-hole adaptor plate, sold separately. Wahoo SPEEDPLAY Standard Tension and Easy Tension Walkable Cleats both fit every current Wahoo SPEEDPLAY pedal, so you can swap tension without changing pedals. The NANO comes in the standard 53mm spindle only. Designed for road and indoor trainer use only. Dirt and grit in the cleat affect engagement, so keep cleats clean and lubricate the springs with a PTFE dry lube.
In the box: left and right pedals, Standard Tension cleat assembly (with walkable covers), screw packet, quick start guide.
Want it set up properly? Tune Cycles can fit the pedals and mount and adjust your cleats as a separate workshop service, booked with our Melbourne workshop.
Wahoo warrants this product against defects in materials and workmanship for one year from the original date of purchase, for the original purchaser under normal use. Warranty claims are handled in the country of purchase. This sits alongside your rights under the Australian Consumer Law.
Wahoo SPEEDPLAY pedals are sealed and not user-serviceable: taking the pedal apart voids the warranty. Cleats are wear items and are not covered for normal wear.
For warranty support, return the product to Tune Cycles and we'll manage the claim with Wahoo's Australian distributor.
- The lightest SPEEDPLAY: 168 g per pair
- Titanium spindle and carbon composite body
- Dual-sided entry: clip in from either side
- Adjustable float from 0° to 15°
- Standard Tension walkable cleats included
- Low 11.5 mm stack height with 3-hole shoes
- Triple-sealed cartridge and needle bearings
- Rated to a maximum rider weight of 82 kg
| Spindle length (Q-factor) | 53 mm |
|---|---|
| Spindle material | Titanium |
| Body material | Carbon composite |
| Weight | 168 g per pair |
| Stack height | 11.5 mm (3-hole), 8.5 mm (4-hole) |
| Bearings | Triple-sealed cartridge and needle bearings |
| Float | Adjustable from 0° to 15° |
| Release angle | Micro-adjustable from 0° to 7.5° |
| Cleat fore-aft adjustment | Up to 13 mm |
| Cornering clearance | 39° |
| Max rider weight | 82 kg (180 lb) |
| Entry | Dual-sided |
| Cleats included | Standard Tension walkable |
| SKU | FES-WFPRN1S53 |
| Model # | FES-WFPRN1S53 |
| Barcode # | FES-WFPRN1S53 |
| Brand | Wahoo |
