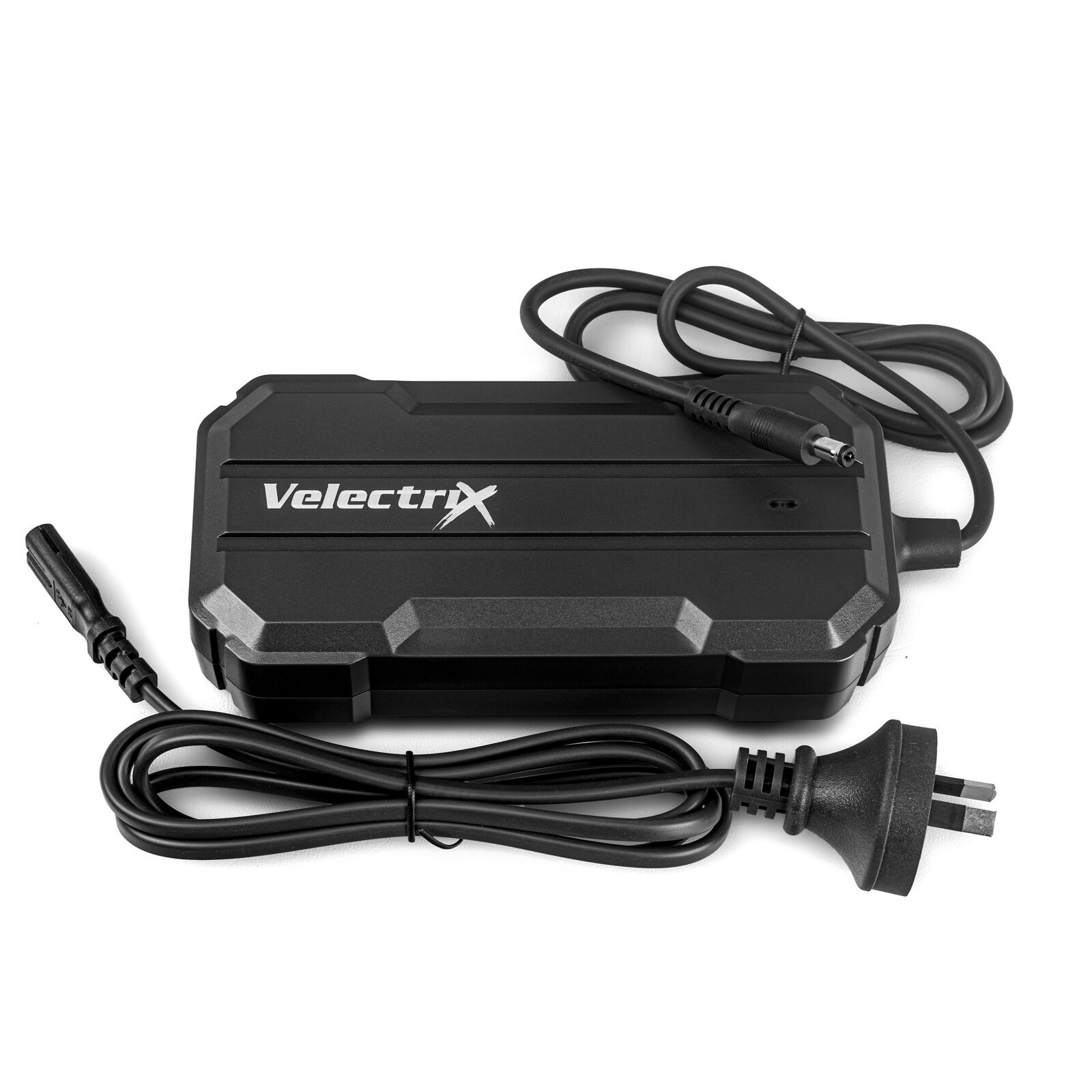

The single-pin version of VelectriX's 36 V smart charger, with a DC 2.1 / 5.5 mm plug. If your battery's charge port takes one pin rather than three, this is the charger to order.

  • DC 2.1 / 5.5 mm single-pin connector – for single-pin charge ports.
  • 36 V, 3 A smart charging – matches the charger spec listed for current VelectriX bikes.
  • State-of-charge light – shows how the battery's charge is coming along.
  • Tested to Australian standards – AS/NZS 60335-2-29 for battery chargers and AS/NZS CISPR 14.1 for EMC, under Australian approval number NSW29334.
  • Battery bag compatible – VelectriX lists it as compatible with its Lithium-ion Battery Bag.

Single pin or 3-pin?

VelectriX sells a 3 A, 36 V smart charger with either plug. Check the port on your battery before ordering; the 3-pin version is VXAUS10833.

Fit and compatibility

Suits VelectriX 36 V batteries with a single-pin charge port. VelectriX lists the Reention Bee (378 Wh) and Greenway Narrow Silverfish (396 Wh) with single-pin ports; in the current range that's the Ascent 24 and Ascent 27.5. Check your port, or ask Tune.

A spare at work saves carrying the charger back and forth.

VelectriX warranty. 1 year against manufacturing defects in materials and workmanship (battery chargers, displays, wiring looms, pedal-assist and gear-shift sensors). The warranty covers the original purchaser of a product bought through an authorised VelectriX dealer (Tune Cycles is one), with proof of purchase. Claims go through the dealer you bought from.

  • For 36 V batteries, 3 A charge current
  • DC 2.1 / 5.5 mm single-pin connector
  • Grey casing with state-of-charge light
  • Tested to AS/NZS 60335-2-29 and AS/NZS CISPR 14.1
  • Australian approval number NSW29334
Battery voltage36 V
Charge current3 A
ConnectorSingle pin, DC 2.1 / 5.5 mm
CasingGrey
IndicatorState-of-charge light
StandardsAS/NZS 60335-2-29, AS/NZS CISPR 14.1 (EMC)
Approval numberNSW29334
FitsVelectriX 36 V batteries with a single-pin charge port
VelectriX part codeVXAUS10854
SKU VLX-VXAUS10854
Brand VelectriX
Shipping Weight 0.9000kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.250m
