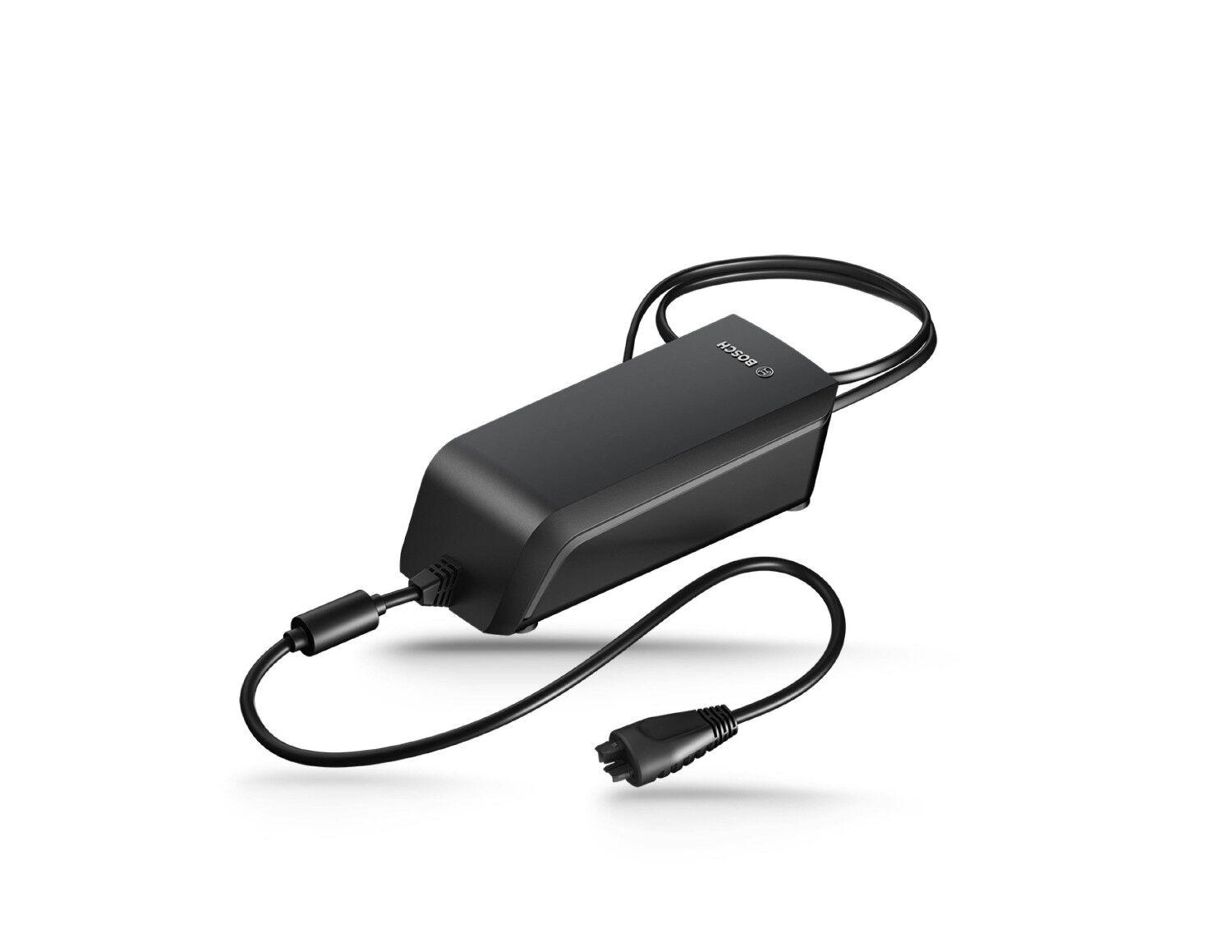

Bosch Standard Charger 4A for Bosch eBike System 2
SKU code: BSP-BOS-0275007917
The all-rounder of the Bosch charger range: quick enough to top up between rides, light enough to keep at work. The Bosch Standard Charger delivers up to 4 A to Bosch eBike System 2 batteries and fills a 500 Wh PowerPack or PowerTube in about four and a half hours.
Highlights
- Up to 4 A charging current for Bosch eBike System 2 batteries
- Charges a PowerPack or PowerTube 500 in about 4.5 hours
- Closed, vent-free housing keeps dust and grime out
- Charge the battery on the bike or off it
- Supplied with an Australian power cable and operating instructions
Why a genuine Bosch charger
A Bosch eBike battery talks to its charger. Using the charger Bosch designed for it keeps charging within the battery management system's limits, which protects the cells and your warranty. The Standard Charger sits between the travel-friendly 2 A Compact Charger and the 6 A Fast Charger, balancing charge speed, weight and size.
Charging times (approx.)
| Battery | Time |
|---|---|
| PowerPack 300 | 2.5 h |
| PowerPack / PowerTube 400 | 3.5 h |
| PowerPack / PowerTube 500 | 4.5 h |
| PowerTube 625 | 4.9 h |
| DualBattery 1250 | 9.8 h |
Compatibility & fit
For Bosch eBike System 2 (Active Line, Active Line Plus, Cargo Line, Performance Line and Performance Line CX). Classic+ Line batteries need the Bosch adapter plug. It will not charge Bosch Smart System batteries, which use their own chargers. Not sure which system your bike has? Our workshop can check it for you.
This genuine Bosch eBike Systems part is covered by the manufacturer's warranty against defects in materials and workmanship. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.
- Genuine Bosch eBike Systems charger
- Max. 4 A charging current, 36 V battery charging voltage
- 220–240 V mains input, Australian power cable included
- Vent-free housing protects against dust and dirt
- Approx. 1.5 m mains cable and 1.0 m charging cable
- Suits Bosch eBike System 2 PowerPack and PowerTube batteries
| Specification | Details |
|---|---|
| Brand | Bosch eBike Systems |
| Model | Standard Charger (BCS220) |
| Bosch part number | 0275007917 |
| System | Bosch eBike System 2 |
| Charging current | max. 4 A |
| Battery charging voltage | 36 V |
| Mains voltage | 220–240 V |
| Size (approx.) | 190 x 86 x 54 mm |
| Cable lengths (approx.) | AC input 1.5 m, DC output 1.0 m |
| Weight (approx.) | 800 g |
| Operating temperature | 0–40 °C |
| Protection rating | IP40 |
| In the box | Charger, Australian power cable, operating instructions |
| SKU | BSP-BOS-0275007917 |
| Brand | Bosch |
| Shipping Weight | 1.1000kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.060m |
| Shipping Length | 0.220m |
