TRP Trail EVO 4-piston hydraulic disc brakes, front and rear, with rotors

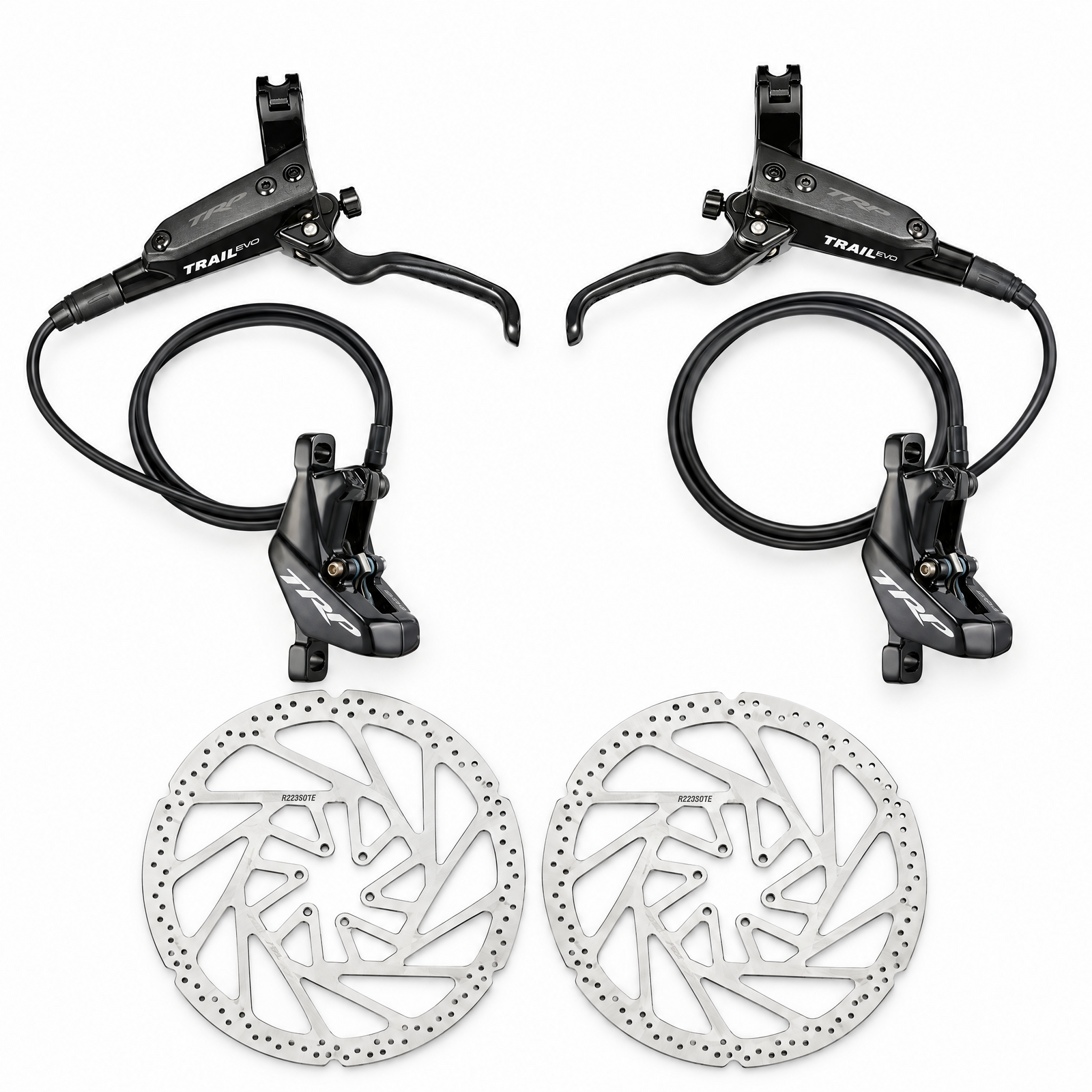

A complete 4-piston hydraulic disc brake upgrade for mountain biking: two pre-bled TRP Trail EVO assembled sets (lever, hose and caliper Trail EVO with pads fitted) plus a pair of TRP 2.3 mm rotors. Each side arrives assembled, filled and bled, so it bolts on without a bleed when the hose lengths suit your bike.

Kit includes

Options

Rotor sizes: 6-bolt: TRP 2.3 mm 180, 203, 220 mm. The kit defaults to two 180 mm (TRP 2.3 mm); set that row to 0 and pick another size, or mix sizes (a larger rotor at the front is common). Trail EVO takes 180 to 223 mm rotors (TRP figures).

Fit-up parts, sold separately (linked here and shown with this kit): TRP mineral oil, a bleed kit. Add what your bike needs to the cart alongside the kit.

This kit is the 6-bolt version - ask us for Centre Lock rotors if your hubs need them.

Already have rotors? Untick them and the price follows the parts you keep. Every part in this kit can be deselected, so a bike that only needs one end, or already has the right rotors, is not charged for the rest.

Fitting notes

Australian convention: the right-hand lever works the front brake and the left-hand lever the rear; the sets are built that way. Most post-mount forks and frames take a 160 mm rotor directly; check your fork or frame's native size - a larger rotor needs the matching TRP adapter only when the mount is smaller than the rotor (not part of this kit - reuse the bracket already on your bike, or ask us). 6-bolt rotors bolt straight to a 6-bolt hub. Service fluid: TRP mineral oil.

Tune Cycles supplies and fits these brakes. Choose your options above; if you are unsure what your fork, frame or hubs take, ask us before you order.

Every part in this kit is covered by TRP's manufacturer warranty against defects in materials and workmanship. Brake pads and rotors are wear items; wear from normal use, incorrect installation, crash damage or modification is not covered. For any warranty claim or support, return the part to Tune Cycles and we will handle it with TRP.

  • Trail EVO 4-piston post-mount hydraulic caliper, front and rear
  • Assembled and pre-bled sets - fit without a bleed
  • Two 180 mm TRP 2.3 mm 6-bolt rotors included
  • Rotor options: 6-bolt 180, 203, 220 mm - mix front and rear sizes
  • Rotor range for Trail EVO: 180 to 223 mm (TRP figures)
  • Hydraulic system: TRP mineral oil
  • Sold separately, linked in the description: oil, bleed kit
  • Editable kit: deselect any part you already have; the price follows the parts you keep
Brand TRP
Series TRP Trail EVO
Caliper Trail EVO, 4-piston, post-mount
Lever Trail EVO lever
Build Two assembled, pre-bled sets: front (right lever) and rear (left lever)
Pads fitted as supplied by the manufacturer
Fluid TRP mineral oil
Rotors included 2 x TRP 2.3 mm 180 mm 6-bolt
Rotor options 6-bolt: TRP 2.3 mm 180, 203, 220 mm
Rotor range (caliper) 180-223 mm
Oil (sold separately) TRP Branded 270c High Temp Brake fluid 100ml Bottle
Bleed kit (sold separately) BleedKit - Bleed kit PREMIUM GOLD TRP (for Tektro/TRP and Shimano hyd. brakes) BK-40028 Premium product Made in Slovenia
SKU TRP-TRAILEVO-6B-BRAKESET
Brand TRP
