Confident, fade-free stopping for aggressive trail and enduro riding. This Shimano Deore XT four-piston hydraulic disc brake pairs the BR-M8220 caliper with the SERVO WAVE BL-M8200 lever, giving you strong initial bite, easy modulation and consistent power lap after lap. Supplied as a complete front brake (right-hand lever) with the hose pre-fitted and bled, ready to mount.

Highlights

  • Four-piston caliper for high stopping power and excellent heat management on long descents
  • SERVO WAVE lever delivers quick pad engagement and a progressive, controllable power curve
  • Tool-free reach adjustment plus free-stroke adjustment to dial in lever feel
  • Finned metal pads (pre-installed) for better cooling and durability under heavy braking
  • Low-viscosity Shimano mineral oil keeps power consistent across a wide temperature range

Strong, controllable power

The BR-M8220 caliper uses four pistons to clamp the rotor evenly, so you get more outright power and a planted, predictable feel when the trail points down. The redesigned SERVO WAVE mechanism in the BL-M8200 lever speeds up pad-to-rotor contact and then smooths the power delivery, so braking stays balanced rather than grabby.

Dial in your fit

Tool-free reach adjustment moves the alloy lever blade closer to or further from the grip, while free-stroke adjustment sets how far the lever travels before the pads engage. A closer pivot point follows the natural arc of your finger for comfortable one- or two-finger braking.

Cooler running

The pre-installed finned metal pads shed heat to help resist brake fade on sustained descents, and Shimano's low-viscosity mineral oil helps maintain a firm, consistent lever feel as temperatures climb.

Compatibility & fit

This is the front brake: in the Australian setup the right-hand lever operates the front caliper. The BR-M8220 is a Post Mount caliper and is supplied without a mount adapter, so add the correct Shimano adapter for your rotor size and frame/fork. The 1000 mm hose length suits a typical front-brake routing. Rotors are not included. The lever clamp accepts a standard band mount and is also I-SPEC EV compatible for integration with matching Shimano shifters. Uses Shimano metal (or resin) disc brake pads and Shimano mineral oil only.

Shimano components carry a manufacturer's warranty against defects in materials and workmanship. Wear items such as brake pads and brake fluid are excluded, and the warranty does not cover damage from crashes, improper installation, incorrect bleeding, modification, or normal wear and tear. Correct installation and bleeding using Shimano mineral oil is required.

For warranty support, return the item to Tune Cycles and we'll manage the claim for you.

This warranty is in addition to your rights under the Australian Consumer Law: our goods come with guarantees that cannot be excluded under the Australian Consumer Law, including a right to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.

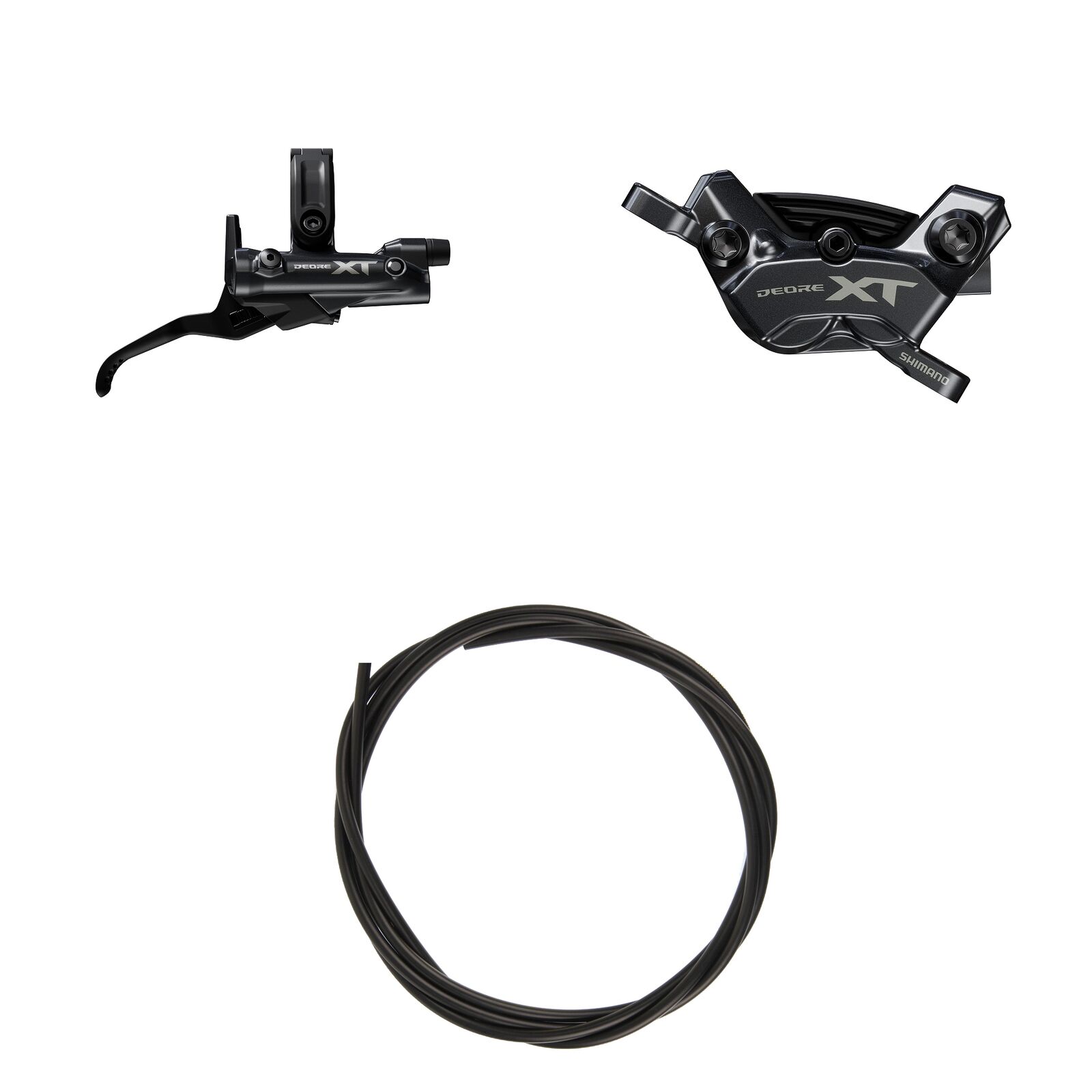

  • Shimano Deore XT four-piston hydraulic disc brake (BR-M8220 caliper, BL-M8200 lever)
  • Front brake assembly with right-hand lever
  • SERVO WAVE lever mechanism for quick engagement and progressive power
  • Tool-free reach adjustment and free-stroke adjustment
  • Stamped alloy lever blade
  • Post Mount caliper (mount adapter not included)
  • Finned metal disc brake pads pre-installed
  • 1000 mm hose, factory-fitted and bled
  • I-SPEC EV and band-clamp compatible
  • Uses Shimano low-viscosity mineral oil
  • Rotors not included
BrandShimano
SeriesDeore XT M8200 / M8220
Caliper modelBR-M8220
Lever modelBL-M8200
TypeHydraulic disc brake
Pistons4
Brake positionFront (right-hand lever)
Caliper mountPost Mount
Mount adapterNot included
PadsMetal with cooling fin (pre-installed)
Lever bladeStamped alloy
Lever adjustmentTool-free reach; free-stroke adjustment
SERVO WAVEYes
ClampBand clamp / I-SPEC EV compatible
Hose length1000 mm
FluidShimano mineral oil
RotorNot included
ColourBlack
SKU SHM-IM82201JRFXNA100
Barcode # 4550170749040
