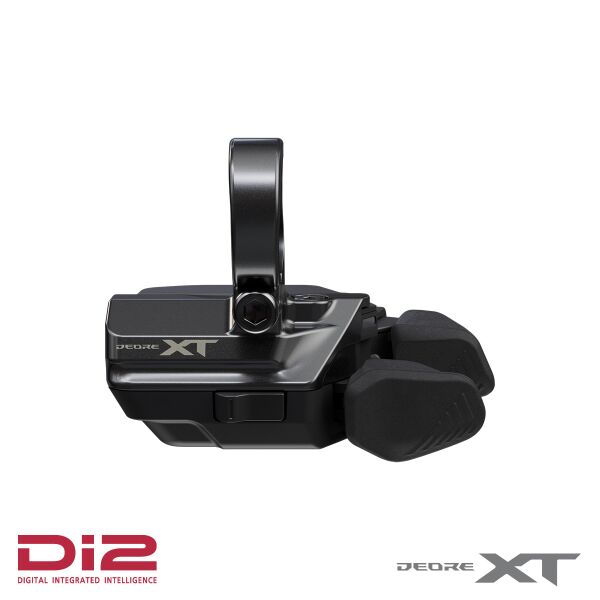

The Shimano Deore XT SW-M8250-R is a wireless Di2 electronic shift switch designed for 12-speed mountain drivetrains. Mounting via a conventional clamp band, it delivers precise, cable-free rear shifting with three-button control and full customisation through the E-TUBE PROJECT app — ideal for riders who want XT-level electronic performance with maximum brake-lever compatibility.

Highlights

• Wireless Di2 shifting: Communicates with the rear derailleur wirelessly via Bluetooth, eliminating shift cables for a cleaner cockpit build.
• Rapid ES multi-shift modes: Choose from hold-down multi-shift, two-step double shift, or locked single shift — adapting the control style to your riding.
• Clamp band mount: Universal 22.2 mm handlebar clamp gives full brake-lever compatibility, including non-Shimano levers.
• Programmable third button: Assign a custom function via the E-TUBE PROJECT app — additional system tuning or connection to supported third-party components.
• Tactile click mechanism: Positive click feedback on every button press prevents accidental or missed shifts.
• Ergonomic adjustability: Multi-axis position adjustment and short-stroke paddles suit a wide range of hand sizes and riding positions.
• Rubber traction pad: Textured contact surface maintains secure thumb and finger placement in wet or muddy conditions.

Wireless & Electronic System

The SW-M8250-R pairs with a compatible Shimano Di2 rear derailleur (such as the RD-M8250) via Bluetooth wireless. There are no E-Tube ports on the shifter body and firmware cannot be updated — initial pairing is done through the Shimano E-TUBE RIDE app using QR code scanning, or via the derailleur's pairing button on an unpaired unit. Power is supplied by two CR1632 coin cells housed in the shifter body.

Fit & Mounting

The clamp band design fits standard 22.2 mm (7/8 in) handlebar ends, making the SW-M8250-R well suited to flat-bar builds where integrated brake lever mounting is not required or desired. The three-button layout and multi-axis clamp angle can be dialled to match rider preference.

Compatibility & Fit

Designed for Shimano 12-speed Di2 mountain drivetrains. Compatible rear derailleurs include the RD-M8250 (Deore XT Di2). Works with 11- and 12-speed Di2 wireless systems. Mount: clamp band (handlebar diameter 22.2 mm). Power: 2× CR1632 coin cells (not included). No wired E-Tube connection. Pairing via E-TUBE RIDE app or direct button pairing.
