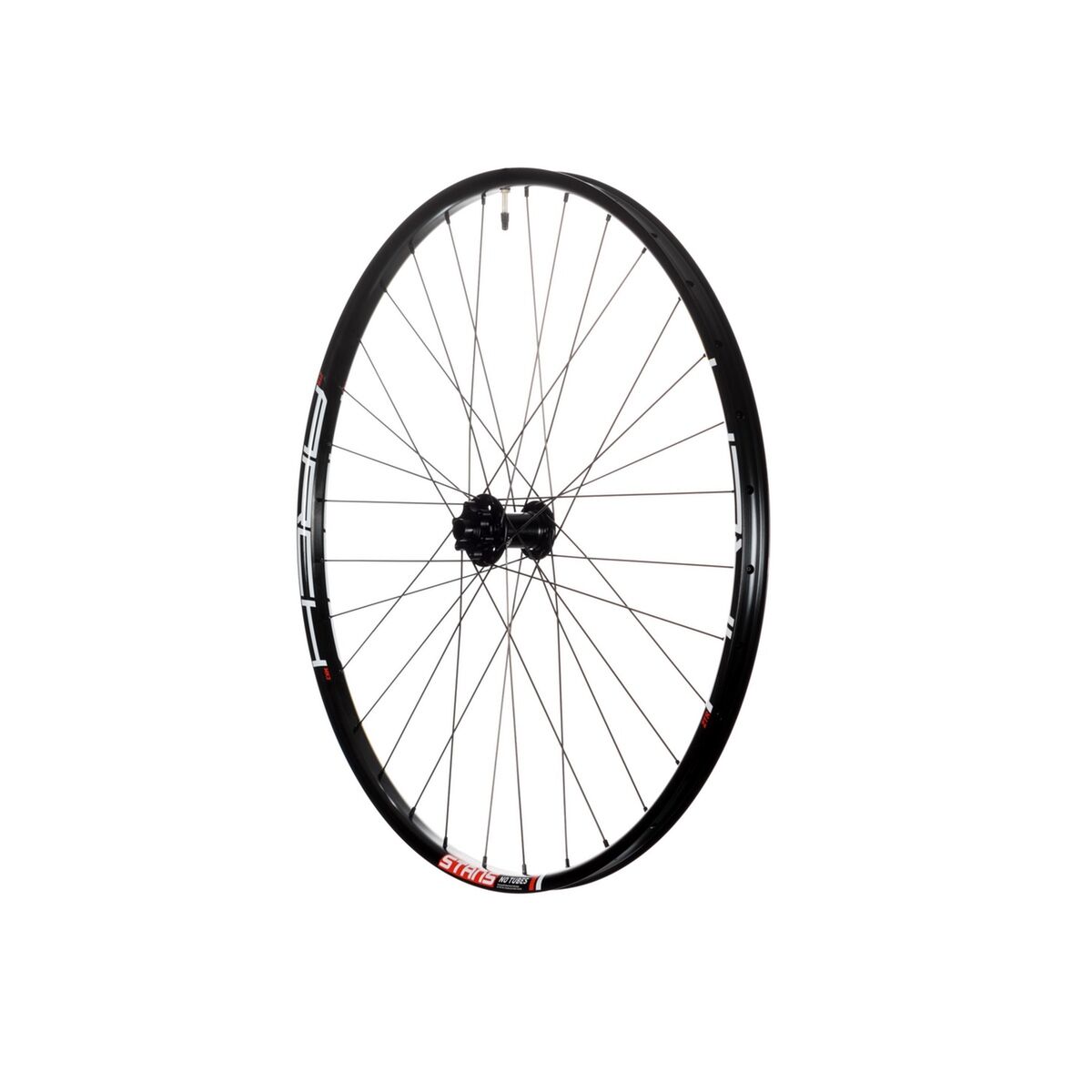

The Stan's NoTubes Arch MK3 is a wide, light 27.5 trail and enduro front wheel developed with input from Stan's Enduro World Series teams, built to hold a stable tyre shape and seal tubeless with the least fuss.

Highlights

  • WideRight profile, optimised for 2.25–2.5″ trail tyres
  • Bead Socket Technology (BST) for easy tubeless inflation and a reliable seal
  • Tubeless ready — rim tape and valve installed
  • Neo hub with Durasync for quick engagement and long service life
  • Sapim Force spokes with Sapim Secure Lock aluminium nipples

Rim & hub

A proprietary 6069 aluminium alloy and low-profile rim shape are built for durability, with a 26.0mm internal width and 29.3mm external width that widen tyre volume without distorting tread shape. The Neo hub with Durasync gives fast, reliable engagement in front-wheel duty.

Compatibility & fit

This wheel is built for a 15×110mm Boost front axle with a 6-bolt disc rotor mount, laced 32-hole with a 35mm Presta valve. Our workshop can handle tubeless tyre set-up on request.

Stan's NoTubes backs its wheels, rims, hubs and accessories against defects in materials and workmanship for the original owner under its published warranty policy; it excludes misuse, crash damage outside a registered crash-replacement claim, and normal wear and tear. For warranty support, return the product to Tune Cycles and we'll manage the claim with JetBlack Cycling, Stan's NoTubes' Australian distributor. For warranty support, return the product to Tune Cycles and we'll manage the claim with JetBlack Cycling, Stan's NoTubes' Australian distributor.
WideRight rim profile for 2.25–2.5″ trail tyres, Bead Socket Technology (BST) tubeless-ready rim, Tubeless ready with rim tape and valve pre-installed, Neo hub with Durasync engagement, Sapim Force spokes, Sapim Secure Lock aluminium nipples, 6-bolt disc rotor mount
Wheel positionFront
Axle15×110mm (Boost)
Brake mount6-bolt disc
Rim internal width26.0mm
Rim external width29.3mm
Rim depth16.0mm
ERD567mm
ISO27.5″ × 29.3mm
Hole count32-hole
Rim material6069 aluminium alloy
Rim colourBlack
HubNeo with Durasync, black
SpokesSapim Force, black, 2.0/1.7/1.8mm
NipplesSapim Secure Lock, alloy, black
Valve35mm Presta
Rim tape width27mm
Rim weight425g (27.5″)
Front wheel weight781g (27.5″)
Max spoke tension125kgf (1225N)
Max pressure, 2.25″ tyre39psi
Max pressure, 2.5″ tyre36psi
Max rider weight104kg (230lb)
SKU JET-NT-DWAT70002
Brand Stan's
Shipping Weight 1.4000kg
Shipping Width 0.700m
Shipping Height 0.120m
Shipping Length 0.700m
