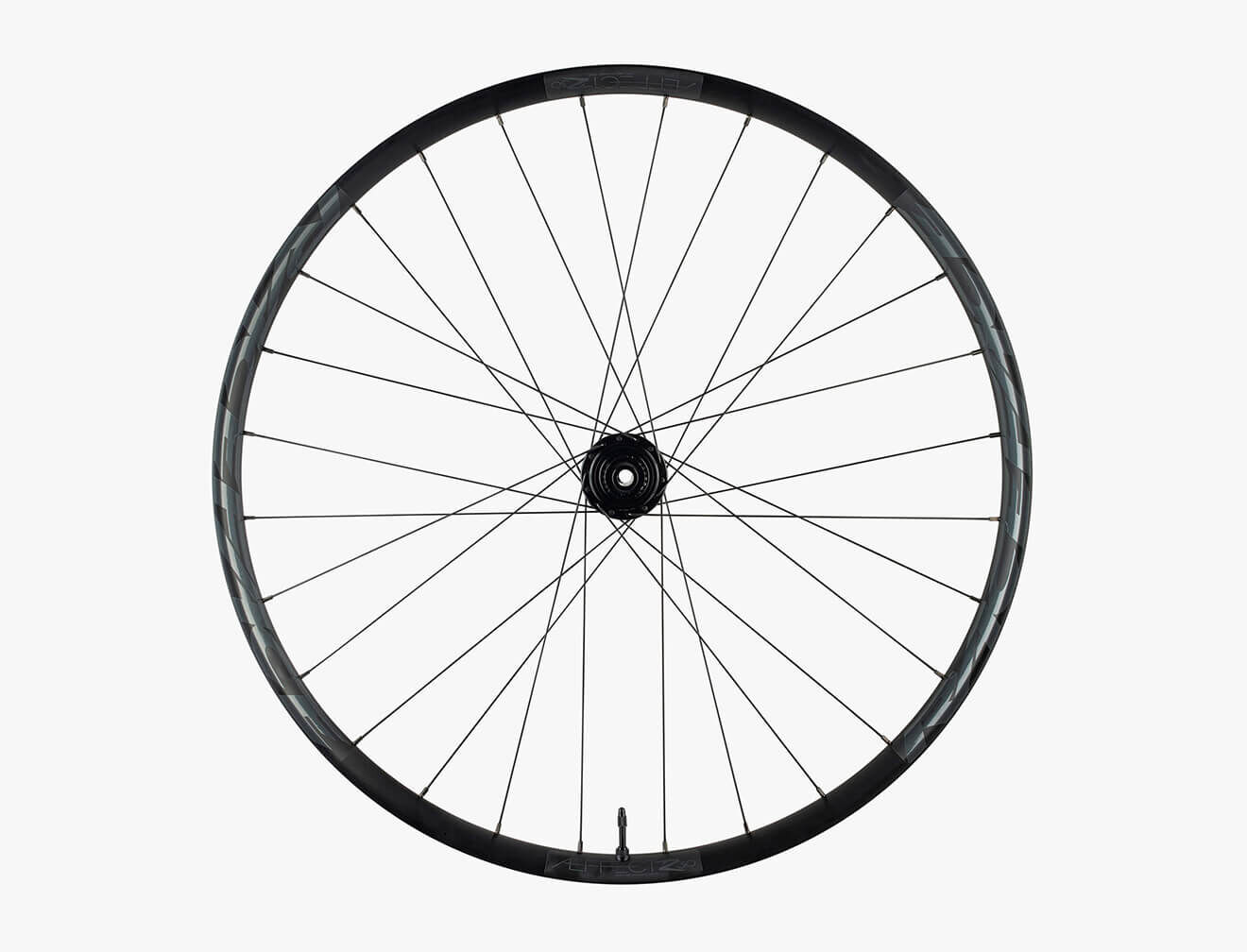

The Aeffect R front wheel is built for the abuse of all-mountain and enduro riding. Race Face rates it eMTB Ready, designed to hold up even on full-power e-bikes, with a 30mm-wide 6069 alloy rim and a simple, durable Trace hub.

Highlights

  • 29in wheel, 15x110mm Boost front axle
  • 6069 alloy rim, 30mm internal and 34mm external width, tubeless ready
  • eMTB Ready: designed for all-mountain and enduro abuse, even on full-power e-bikes
  • Trace hub with durable cartridge bearings
  • 28 J-bend spokes, 2.0/1.7/2.0 butted, laced 3-cross with black brass nipples
  • Backed by Race Face's Lifetime Warranty, crashes included

Rough and rowdy rim

The Aeffect R rim is a stout 6069 alloy extrusion with a 30mm inner width, tubeless ready out of the box. A 4.5mm offset spoke bed balances spoke tension for a stiffer wheel and better fatigue life.

eMTB Ready

Race Face designed this front wheel for all-mountain and enduro riding, including full-power e-bikes. It pairs with the Aeffect R eMTB rear wheel for a matched e-bike wheelset, or with the standard Aeffect R rear.

Compatibility & fit

Fits forks with a 15x110mm Boost axle and a 29in wheel. The hub takes a 6-bolt disc rotor. This is a single front wheel; tyre and disc rotor aren't included. Fitting isn't included. Our Marrickville workshop can fit the wheel, set it up tubeless and move your rotor across as a separate service.

Race Face Lifetime Warranty, crashes included. Race Face covers its wheels for their expected usable life of regular riding, including damage from crashes while you're riding, whether the wheel came on a new bike or was bought as an upgrade. It doesn't cover normal wear and tear such as hub bearings or dings and flat spots in alloy rims, intentional damage, or damage that doesn't happen while riding (a roof-rack strike, for example). For warranty support, return the product to Tune Cycles and we'll manage the claim with Ride Fox Australia, Race Face's Australian distributor.
  • 29in, 15x110mm Boost front wheel
  • 30mm internal, tubeless-ready 6069 alloy rim
  • eMTB Ready for all-mountain and enduro
  • Trace hub with durable cartridge bearings
  • Lifetime Warranty, crashes included
PositionFront
Wheel size29in
Axle15x110mm Boost
Rim material6069 aluminium
Internal rim width30mm
External rim width34mm
Spoke offset4.5mm
TubelessTubeless ready
HubRace Face Trace, cartridge bearings
Rotor mount6-bolt
Spokes28, J-bend, 2.0/1.7/2.0 butted
Lacing3-cross
NipplesBlack brass
ColourBlack
Claimed weight2000g per 29in wheelset
SKU RFX-RWARF30F29
Brand Race Face
Shipping Weight 2.6000kg
Shipping Width 0.700m
Shipping Height 0.120m
Shipping Length 0.700m
