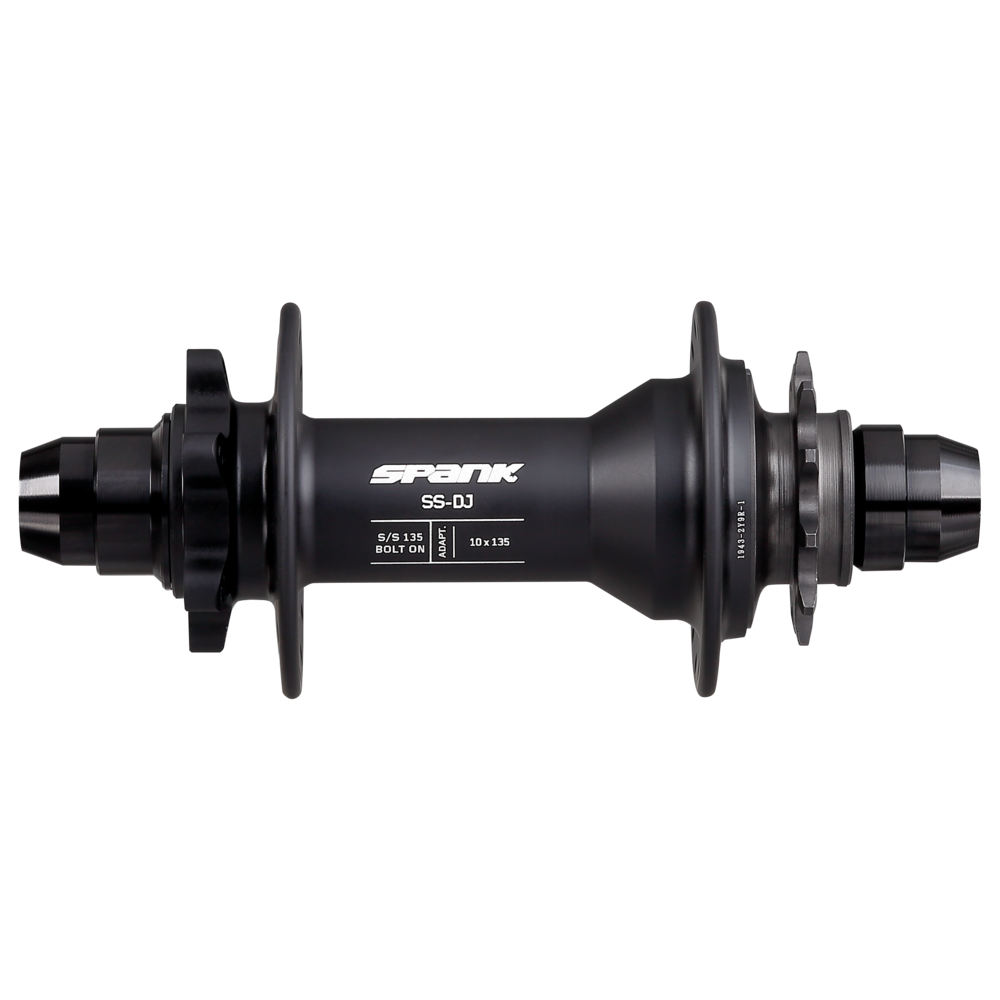

The Spank SS-DJ hub is a dedicated singlespeed rear hub for all-mountain, dirt jump, freeride and pump track riding, with an integrated 11T cog freehub built into the hub body rather than bolted on as a separate part. A wide-flange, 5-bearing design keeps the wheel stiff and the drive sharp, run after run.

Highlights

  • Integrated 3mm 11T cog freehub built for 1/8" singlespeed chains; 12T and 13T cog freehubs are available separately
  • 24-tooth engagement for a reliable drive under hard pedalling
  • 135x10mm bolt-on female axle with M10 lock-down bolts
  • Wide-flange design eliminates dish in the rear wheel, maximising strength and stiffness
  • Alloy hub body and end caps with a steel freehub, running on 5 bearings
  • 6-bolt disc mount, 32-hole for spoke lacing

Built for singlespeed abuse

The wide-flange alloy body and five-bearing axle are built to take repeated hits from dirt jump, freeride and pump track riding, while the female bolt-on axle and M10 lock-down bolts keep the wheel securely located.

Compatibility & fit

Takes a 6-bolt disc rotor and builds into a 32-hole wheel on a 135x10mm bolt-on rear end. Runs 1/8" singlespeed chains on its integrated 11T cog freehub; because the cog freehub is built into the hub body, it isn't compatible with standard multi-speed cassettes or freehub bodies. Spank also offers 12T and 13T cog freehub options separately for different gearing.

Spank backs the SS-DJ hub with a 2-year warranty from the original date of purchase against defects in materials and workmanship. It excludes normal wear and tear, impact damage, incorrect assembly and alterations made outside Spank's own facility (spank-ind.com/pages/spank-warranty-application). For warranty support, return the product to Tune Cycles and we'll manage the claim with Link Sports, Spank's Australian distributor.
  • Integrated 11T cog freehub for 1/8" singlespeed chains
  • 24T engagement for a reliable, direct drive
  • 135x10mm bolt-on female axle with M10 lock-down bolts
  • Wide-flange alloy body eliminates dish for a stronger wheel
  • 5-bearing build for durability under repeated hits
  • 6-bolt disc mount, 32-hole for spoke lacing
Axle / Spacing135x10mm bolt-on, female axle, M10 lock-down bolts
Hole Count32H
Disc Mount6-bolt
MaterialAlloy body and end caps, steel freehub
WeightApprox. 510g with bolts and caps
Engagement24T
Cog FreehubIntegrated 11T (12T and 13T available separately)
Bearings5
