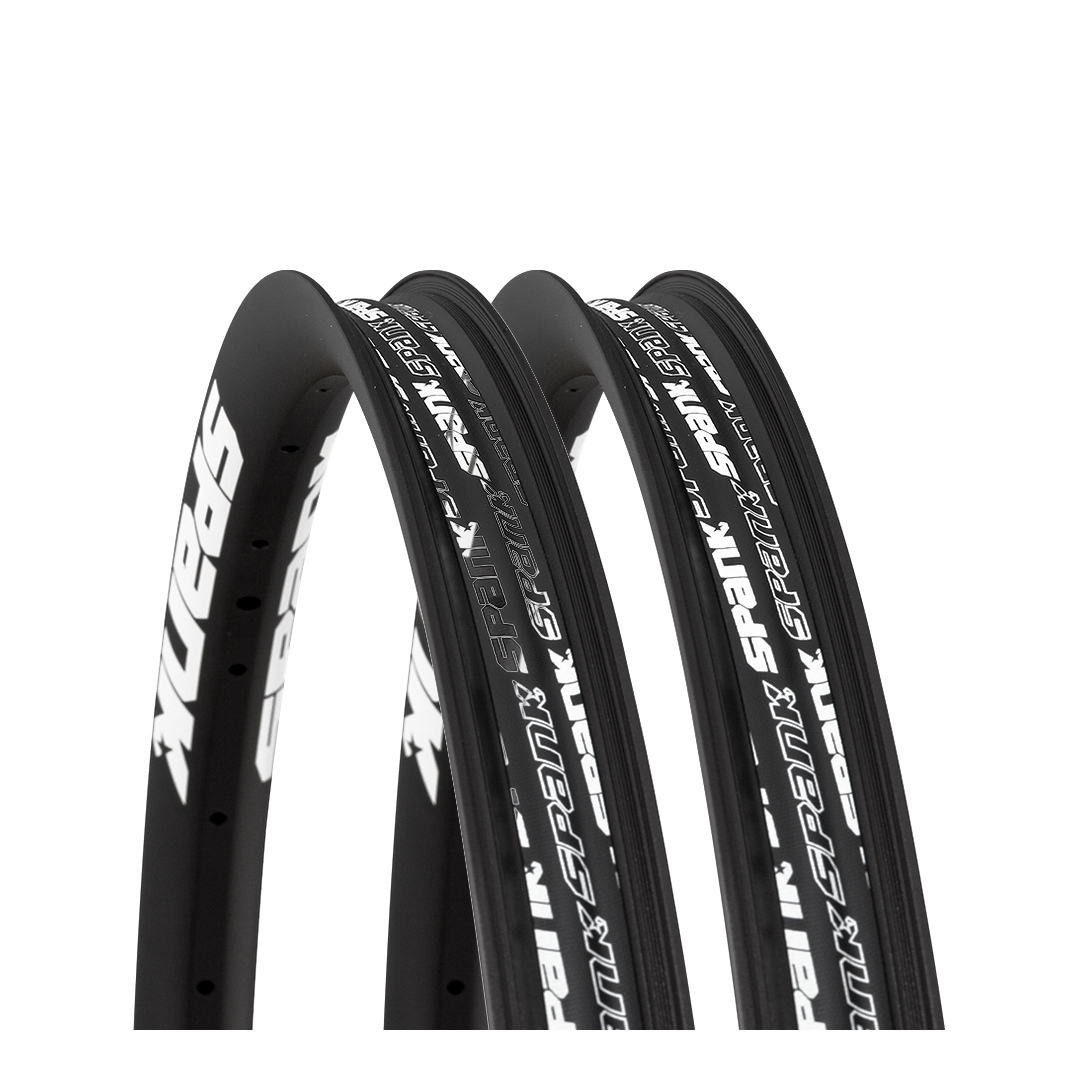

Spank Oozy Trail 395+ rim set, 32H, 29", 27.5" or Mullet (29" front / 27.5" rear)

Two Spank Oozy Trail 395+ rims packed as one set: the rim pair inside our hand-built Spank trail wheelsets, and the same pair on its own for your own build. An ultra-wide 35 mm trail rim for 2.3 to 3.0 inch tyres. Spank's OohBah inverted inner wall, a corrugated centre, stiffens the wide profile without adding material, and Bead Bite ridges on the bead seats hold the tyre at low pressure.

What is in the box

  • Two Spank Oozy Trail 395+ rims, 32H, in the diameter you choose: 29", 27.5" or Mullet (29" front / 27.5" rear)
  • Rims only: each ships with a protective rim strip (not tubeless tape) that comes off before building. No nipples, washers, tape or valves.

For your own build you need 64 flat-head external nipples, 64 nipple washers (Spank double-concave nipple washers (65-pack)), 30 mm tubeless tape and two Presta tubeless valves. Our wheel kits supply all of it.

The rim

  • 35 mm internal, 39.5 mm external, 22 mm deep: for 2.3-3.0" (2.3-2.6" trail tyres and Plus sizes) tyres (Spank's range)
  • Hooked tubeless (Bead Bite anti-burp): tubeless-ready with 30 mm tape and a Presta valve
  • Sleeved joint, shot-peened then anodised; OohBah inverted inner wall
  • ASTM 5. Spank lists it for Trail, all-mountain, e-bike. Maximum system weight 120 kg (rider, bike and gear, Spank's limit for every rim)
  • ERD 591 mm (29") / 554 mm (27.5") (Spank's figure, nipple heads excluded); weight about 590 g (29") / 560 g (27.5") (Spank's figures)
  • Disc brake only

Building your own

Spank's build rules for this rim: butted spokes, a washer under every nipple (Spank's Australian distributor requires them for the warranty), 3-cross. Spank publishes ERD without nipple heads: add twice your nipple's head height (595 mm / 558 mm with standard 2 mm-head nipples). Tension: 110-120 kgf (Spank's general target).

Warranty

Spank warrants its rims against defects in materials and workmanship when bought from an authorised seller. Any claim comes back to Tune Cycles: bring the rim to Marrickville or contact us with your order number and we handle it with Link Sports, Spank's Australian distributor. Wear, crash damage, incorrect building and commercial use are not covered.

Spank warrants its rims against defects in materials and workmanship when bought from an authorised seller. Any claim comes back to Tune Cycles: bring the rim to Marrickville or contact us with your order number and we handle it with Link Sports, Spank's Australian distributor. Wear, crash damage, incorrect building and commercial use are not covered.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.

  • Spank Oozy Trail 395+ x 2, 32H, 29", 27.5" or Mullet (29" front / 27.5" rear)
  • 35 mm internal, 22 mm deep, ASTM 5, 120 kg system weight
  • Bead Bite tubeless hooks; 2.3-3.0" (2.3-2.6" trail tyres and Plus sizes) tyres; 30 mm tape
  • OohBah inverted inner wall stiffens the 35 mm profile
  • E-bike use listed by Spank
  • The rim pair in our hand-built Spank trail wheelsets; sold here on its own too
SpecificationValue
Rims2 x Spank Oozy Trail 395+
Diameter29", 27.5" or Mullet (29" front / 27.5" rear)
Spoke holes32H
Internal / external width35 mm / 39.5 mm
Rim depth22 mm
ERD (Spank, heads excluded)591 mm (29") / 554 mm (27.5")
ERD with 2 mm-head nipples595 mm / 558 mm
Weightabout 590 g (29") / 560 g (27.5")
Constructionalloy, sleeved joint, shot-peened, OohBah inner wall
Tyre interfacehooked tubeless (Bead Bite anti-burp)
Tyres2.3-3.0" (2.3-2.6" trail tyres and Plus sizes)
Tape / valve30 mm / Presta
Nipplesflat-head external only, with a washer under each
Spoke tension110-120 kgf (Spank's general target)
ASTM / system weightASTM 5 / 120 kg
E-bikelisted by Spank
BrakeDisc only
In the boxRims only
WarrantySpank, against defects; claims via Tune Cycles
SKU SPK-OZY395-RIMSET
Brand Spank
