Every wear part on a Shimano Dura-Ace R9200 Di2 disc drivetrain, in one box. When the cassette, chain and chainrings have done their kilometres and the rotors, pads and hoods are due at the same time, this kit replaces the lot in one go rather than piecing the order together part by part.

Highlights

• A complete drivetrain refresh: CS-R9200 11-34T cassette, CN-M9100 12-speed chain and the FC-R9200 52T / 36T chainring pair
• Braking sorted at the same time: RT-CL900 Ice-Tech Freeza rotors (160 mm and 140 mm) and two pairs of L05A-RF finned resin pads
• Fresh ST-R9270 bracket covers so the levers feel new again
• Genuine Shimano parts throughout, matched to the R9200 series
• Sold as one fixed bundle at a single kit price

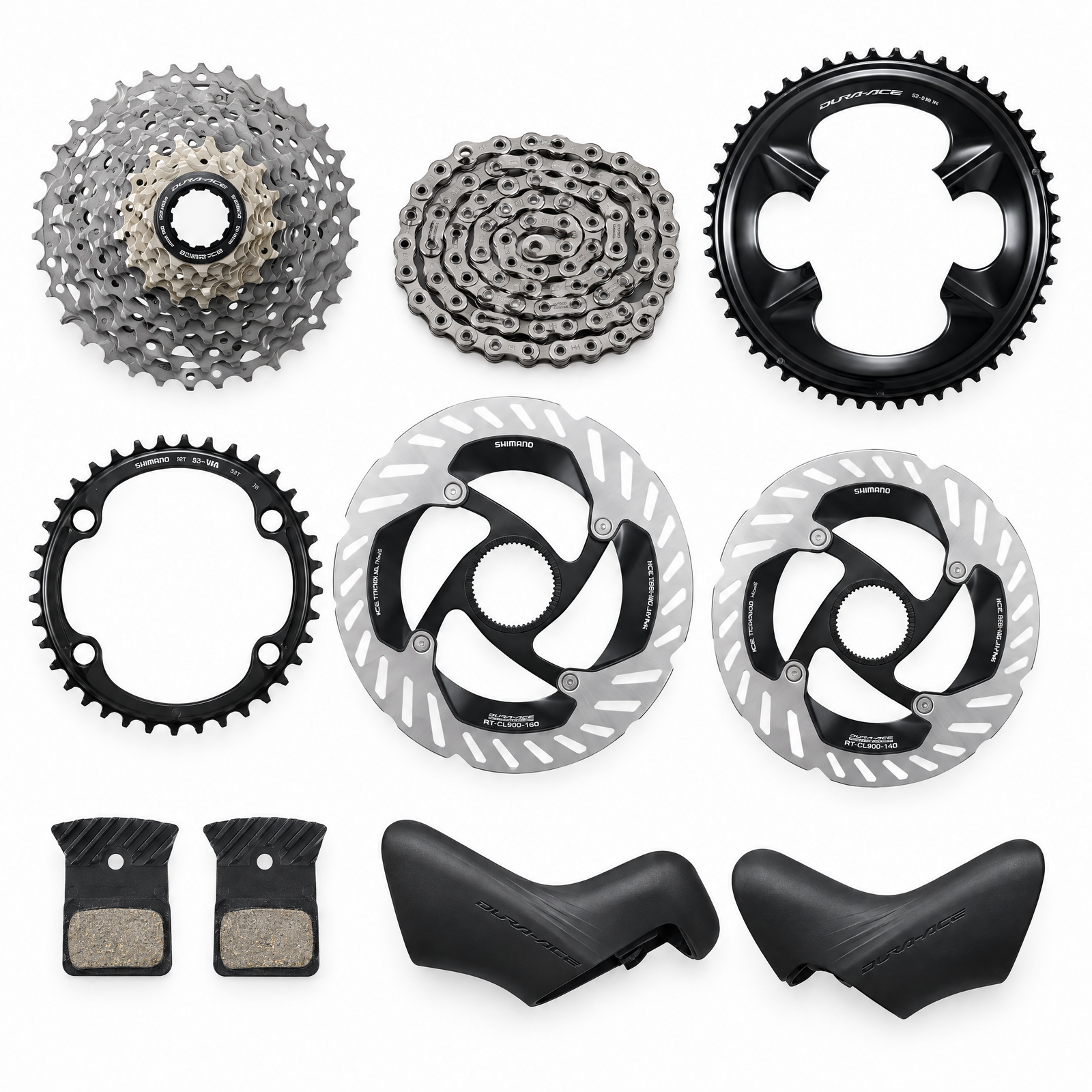

Kit includes

• 1 × Shimano Dura-Ace CS-R9200 cassette, 12-speed, 11-34T
• 1 × Shimano CN-M9100 12-speed chain, 126 links, with Quick Link
• 1 × Shimano Dura-Ace FC-R9200 52T outer chainring (Y0MZ98020)
• 1 × Shimano Dura-Ace FC-R9200 36T inner chainring (Y0MZ36000)
• 1 × Shimano Dura-Ace RT-CL900 Centre Lock disc rotor, 160 mm, internal-serration lockring included
• 1 × Shimano Dura-Ace RT-CL900 Centre Lock disc rotor, 140 mm, internal-serration lockring included
• 2 × Shimano BP-L05A-RF resin disc brake pads with cooling fin (two pairs, front and rear calipers)
• 1 × Shimano ST-R9270 bracket covers (lever hoods), pair

Why replace them together

A worn chain wears the cassette and chainrings with it, so a new chain on old cogs skips and a new cassette on an old chain wears out early. Replacing all three at once is how Shimano intends a HYPERGLIDE+ drivetrain to be serviced, and it keeps the shifting as sharp as the day the groupset was fitted. The rotors and pads follow the same logic: a fresh pad on a worn rotor beds in badly, and worn rotors are the usual cause of noise and fade on long descents.

Compatibility and fit

This kit is specified for a Shimano Dura-Ace R9200 12-speed drivetrain with an FC-R9200 crankset in the 52-36T combination, ST-R9270 Di2 Dual Control levers and BR-R9270 hydraulic disc calipers on Centre Lock hubs. The cassette fits Shimano 11-speed and 12-speed road freehub bodies. The rotor pair suits a 160 mm front / 140 mm rear setup, and both use an internal-serration lockring fitted with a cassette lockring tool. The two pairs of pads cover the front and rear calipers; the hoods fit ST-R9270-L and ST-R9270-R. The kit contents are fixed, so if your bike runs different rotor sizes or a different chainring combination, get in touch before ordering and we will quote the right parts.
