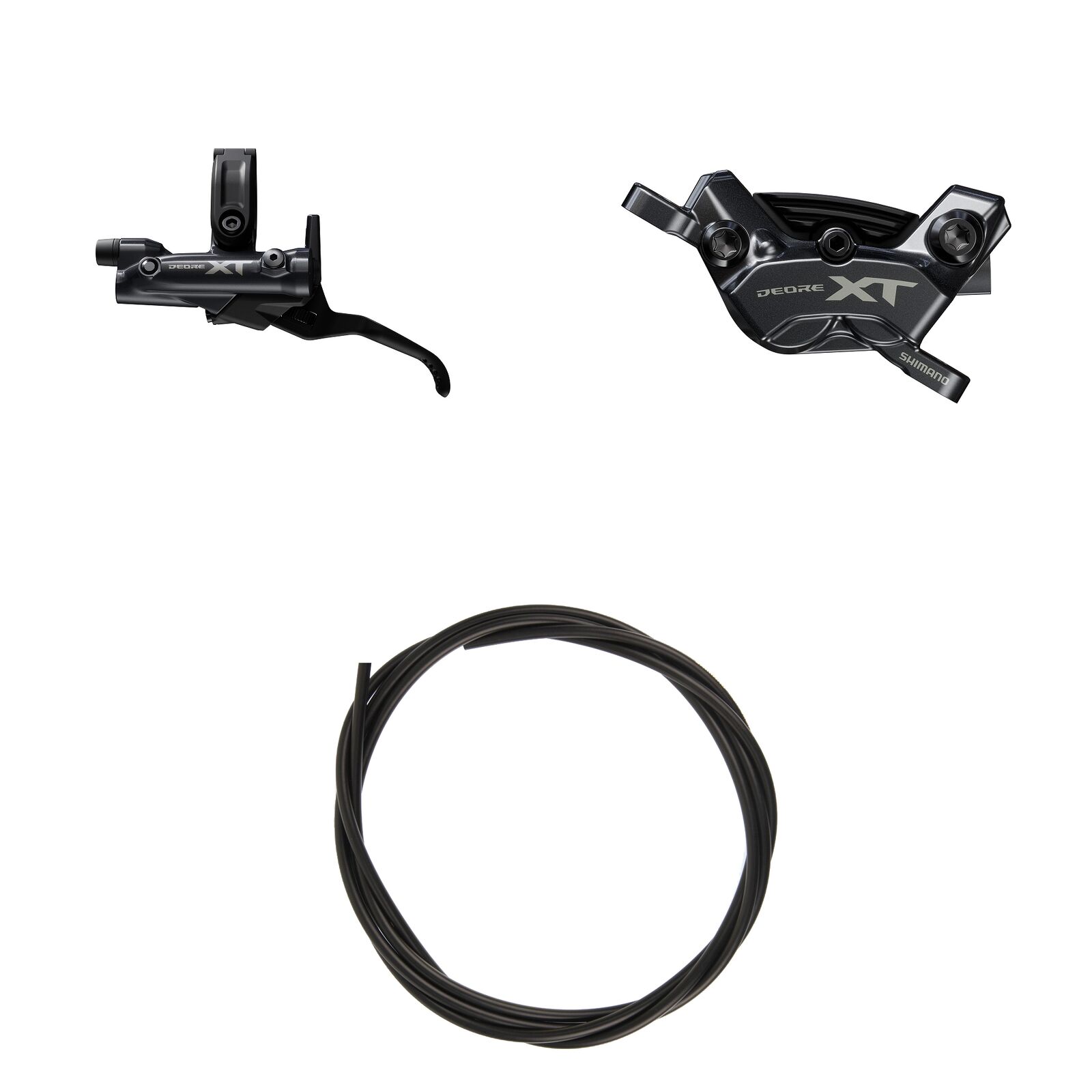

Shimano Deore XT BR-M8220 / BL-M8200 Hydraulic Disc Brake - Left (Rear)
SKU code: SHM-IM82201JLRXNA170
Sold Out
Confident, controlled stopping power for trail and enduro riding, this Shimano Deore XT brake pairs the four-piston BR-M8220 caliper with the refined Servo Wave BL-M8200 lever for strong, consistent bite that holds up on long, demanding descents. This is the left lever assembly, which in the Australian setup operates the rear brake.
Highlights
- Hard-hitting four-piston BR-M8220 caliper for high power and control on steep, technical terrain
- Updated Servo Wave lever delivers fast pad contact then a smooth, building power curve for better modulation
- Metal brake pads with a cooling fin resist heat fade on sustained descents
- Low-viscosity mineral oil keeps the bite point consistent across a wide temperature range
- Tool-free reach adjustment and free stroke adjustment to dial in lever feel
- Supplied as a complete left (rear) brake assembly with a 1700 mm hose fitted
Power and control
The two-piece BR-M8220 is the most powerful caliper in the M8200 family, using a four-piston design to clamp the rotor evenly for strong, repeatable stopping. Combined with the Servo Wave lever, the brake brings the pads to the rotor quickly with little lever movement, then ramps up power for greater braking force with improved feel under your finger.
Heat management and feel
Metal pads with an integrated cooling fin shed heat to help maintain performance on long descents, while Shimano's low-viscosity mineral oil helps keep the bite point stable in changing trail and weather conditions. The redesigned pad and seal arrangement also helps reduce vibration-related rattle.
Ergonomics and adjustment
The BL-M8200 lever uses Shimano's Ergo Flow shaping with a closer pivot point that follows the natural arc of your finger. Tool-free reach adjustment and free stroke adjustment let you tune the lever position and engagement to suit your hands and riding style.
Compatibility & fit
- Left lever (operates the rear brake in the Australian setup)
- BR-M8220 four-piston caliper, post mount
- SM-BH90-SBM hose, 1700 mm length as supplied
- Metal pad with cooling fin fitted
- BL-M8200 lever clamp is I-Spec EV compatible for shifter integration
- Uses Shimano low-viscosity mineral oil
- Disc rotor and rotor mount adapter are not included with this unit
Designed as a hydraulic disc brake for mountain bikes; confirm your frame uses a post-mount caliper interface and select the correct rotor and adapter for your wheel size.
Shimano components are covered by the manufacturer's warranty against defects in materials and workmanship. Wear items such as brake pads are excluded, and the warranty does not cover damage from misuse, incorrect installation, accident or normal wear.
For warranty support, return the item to Tune Cycles and we'll manage the claim for you.
This warranty is in addition to your rights under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
- Four-piston BR-M8220 caliper, the most powerful in the Deore XT M8200 family
- Two-piece caliper construction for rigidity and consistent braking
- Updated Servo Wave lever action for fast pad contact and a building power curve
- Ergo Flow lever shape with a closer, more natural pivot point
- Tool-free reach adjustment
- Free stroke adjustment
- Metal brake pad with cooling fin for heat resistance
- Low-viscosity mineral oil for a consistent bite point across temperatures
- Post-mount caliper
- SM-BH90-SBM hose, supplied at 1700 mm
- I-Spec EV compatible lever clamp
- Black finish
| Series | Shimano Deore XT M8200 |
|---|---|
| Caliper | BR-M8220 |
| Lever | BL-M8200 |
| Pistons | 4-piston |
| Caliper construction | Two-piece |
| Caliper mount | Post mount |
| Brake side | Left lever (rear brake, Australian setup) |
| Lever technology | Servo Wave, Ergo Flow |
| Reach adjustment | Tool-free |
| Free stroke adjustment | Yes |
| Brake pad | Metal pad with cooling fin |
| Hose | SM-BH90-SBM, 1700 mm |
| Fluid | Shimano low-viscosity mineral oil |
| Clamp compatibility | I-Spec EV |
| Colour | Black |
| Included | Lever, caliper and hose assembly (rotor and adapter not included) |
| SKU | SHM-IM82201JLRXNA170 |
| Barcode # | 4550170749019 |
| Brand | Shimano |
