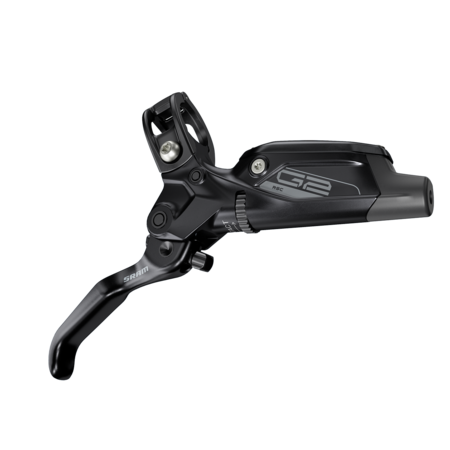

The SRAM G2 RSC is the full-featured variant in SRAM's G2 brake family — a Code-derived hydraulic disc brake with the adjustability and power that trail, enduro, and all-mountain riders need. RSC stands for Reach, SwingLink, and Contact — three independent adjustments that let you dial in lever feel precisely for your hand size and riding style.

Highlights

  • Code-derived braking power — serious stopping force for trail and enduro MTB
  • Reach adjustment — lever distance from bar to suit different hand sizes
  • SwingLink — adjusts lever arc for a more ergonomic and consistent pull
  • Contact point adjustment — sets where in the lever stroke the pads touch the rotor
  • Mineral oil hydraulic system — low maintenance, no fluid hygroscopy
  • Four-piston caliper for high clamping force

RSC adjustment system

Three independent adjustment points means you can fit the lever precisely rather than adapting your riding style to the brake. Reach positions the lever for your hand size. SwingLink changes the arc the lever travels through for a more natural pull angle. Contact sets where braking begins in the stroke — useful for fine-tuning initial bite point and modulation feel.

Fit and compatibility

Hydraulic disc brake. Compatible with standard hydraulic brake routing. Pairs with SRAM disc brake rotors (CenterLine, HS2 and compatible). Confirm brake mount standard (post mount) and rotor diameter before ordering.

Installation. Service. Compatibility. Find all the documentation needed to set up, use, and maintain your components in the SRAM Service hub.

Visit product service page
Features
  • Useful reach and contact point adjustments for every type of rider. we design our brakes to give each individual rider distinct control of their ride.
  • Added stiffness in the caliper and a new pad compound that offers more bite really delivers the Mini-Code feel.
  • Engineered for easy installation

Specifications

Application (DB) MTB
Brake type Hydraulic
Color (DB) Diffusion Black
Blade material Aluminum - Stamped
Orientation Front, Rear
Pad type (Disc) Steel-backed organic
Bracket (Disc Brake) Direct mount DIR
Reach adjust Tool-free
Contact adjust Yes
Hydraulic fluid DOT 5.1
Lever pivot Bushing
Weight (g) 248
Weight Based On Direct Mount 800mm Hose, no clamp/mounting hardware
SKU SRM-DB-G2-RSC-A2
Model # DB-G2-RSC-A2
Barcode # DB-G2-RSC-A2
Brand SRAM
