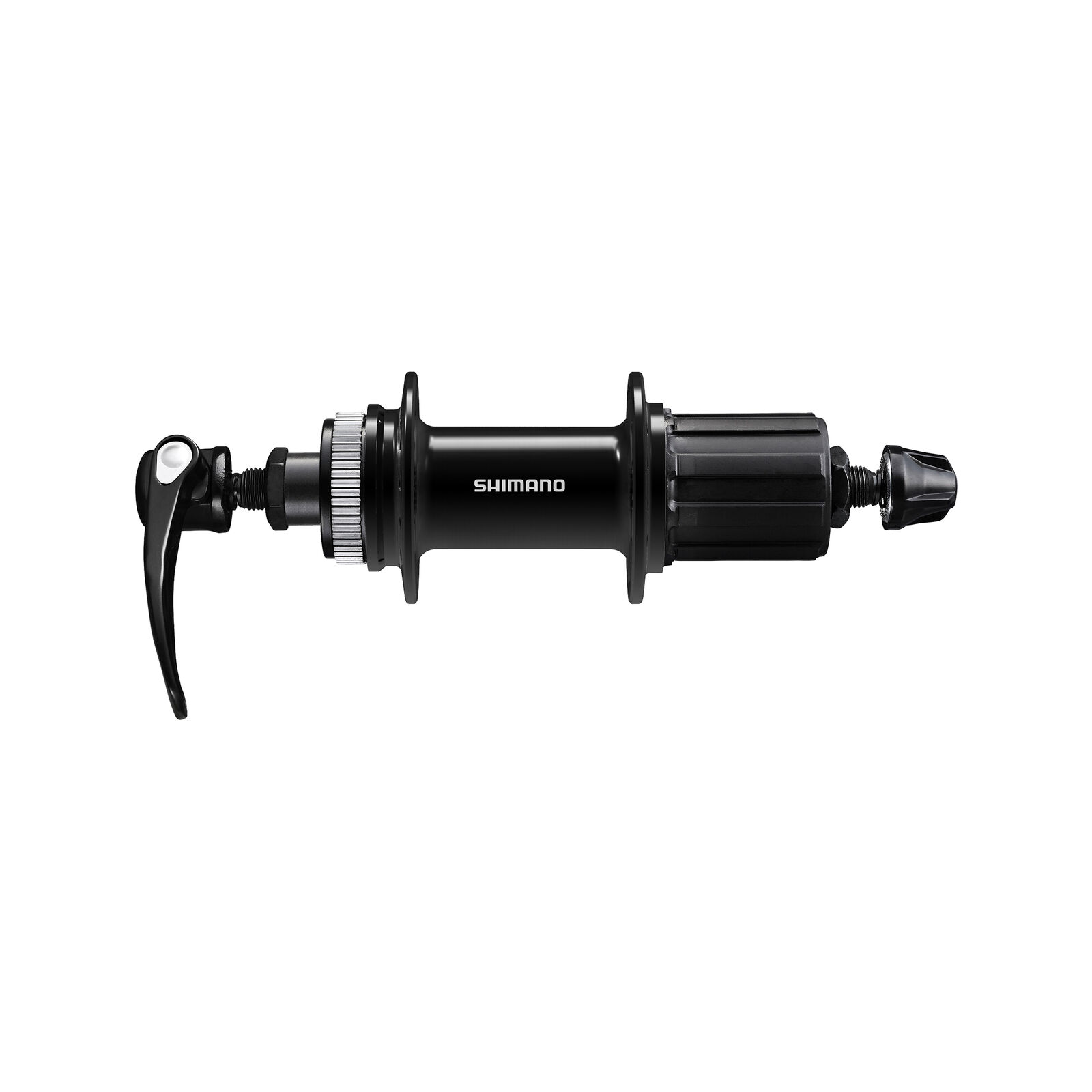

Shimano Deore FH-QC400-HM Rear Hub - QR 135mm, 32H, Center Lock
SKU code: SHM-EFHQC400HMBZBP
Sold Out
The Shimano Deore FH-QC400-HM is a dependable quick-release rear hub built for everyday trail and commuter wheels, pairing smooth, well-sealed bearings with hassle-free Center Lock rotor changes. It is a versatile workhorse that handles 8- to 11-speed setups on a single hub.
Highlights
- Smooth-running, well-sealed bearings for long, low-maintenance service life
- Center Lock rotor mount for quick, secure rotor fitting and removal
- Wide 8/9/10/11-speed compatibility from one HG spline freehub body
- Traditional 135 mm quick-release fitment for a huge range of frames
- 32-hole drilling for a strong, easily serviced wheel build
Sealed, serviceable performance
High-quality seals keep grit and water out of the bearings, helping the hub spin freely season after season. As a cup-and-cone Shimano hub, it can be cleaned, regreased and adjusted rather than thrown away, which keeps a quality wheelset running for years.
Center Lock made simple
The Center Lock disc mount uses a splined interface and a single lock ring, so swapping rotors is faster and the rotor sits more precisely than a six-bolt fitting. The result is consistent, confident braking.
One hub, many drivetrains
The HG spline freehub body accepts Shimano and compatible HG cassettes from 8-speed right through to road and MTB 11-speed, making this an easy choice for builds, upgrades and replacement wheels alike.
Compatibility & fit
- Frame spacing: 135 mm over-locknut distance (rear)
- Axle: quick-release (skewer included)
- Freehub body: Shimano HG spline M, for 8/9/10-speed and MTB/road 11-speed HG cassettes
- Disc mount: Center Lock (use a Center Lock rotor and lock ring; lock ring sold separately if not supplied)
- Spoke holes: 32H
- Spoke gauge: compatible with #13 and #14 spokes
This is a rear hub only; rotor, cassette, spokes and rim are not included.
Shimano components are warranted against defects in materials and workmanship for the period required under Australian Consumer Law and Shimano's standard warranty terms. The warranty covers manufacturing defects and does not cover normal wear, damage from crashes or improper installation, or wear of bearing surfaces from lack of service.
For warranty support, return the item to Tune Cycles and we'll manage the claim for you.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
- Shimano Deore quick-release rear hub (FH-QC400-HM)
- HG spline M freehub body for 8/9/10-speed and 11-speed HG cassettes
- Center Lock disc rotor mount for fast, precise rotor fitting
- 135 mm over-locknut distance with quick-release axle
- 32-hole drilling, compatible with #13 and #14 spokes
- High-quality seals protect the bearings from water and grit
- Serviceable cup-and-cone bearing design
| Brand | Shimano |
|---|---|
| Series | Deore |
| Model | FH-QC400-HM |
| Type | Rear hub (freehub) |
| Over-locknut distance (O.L.D.) | 135 mm |
| Axle | Quick-release |
| Freehub body | HG spline M |
| Speeds | 8 / 9 / 10-speed and MTB/road 11-speed |
| Disc mount | Center Lock |
| Spoke holes | 32H |
| Spoke compatibility | #13 and #14 |
| Colour | Black |
| SKU | SHM-EFHQC400HMBZBP |
| Barcode # | 4550170641122 |
| Brand | Shimano |
