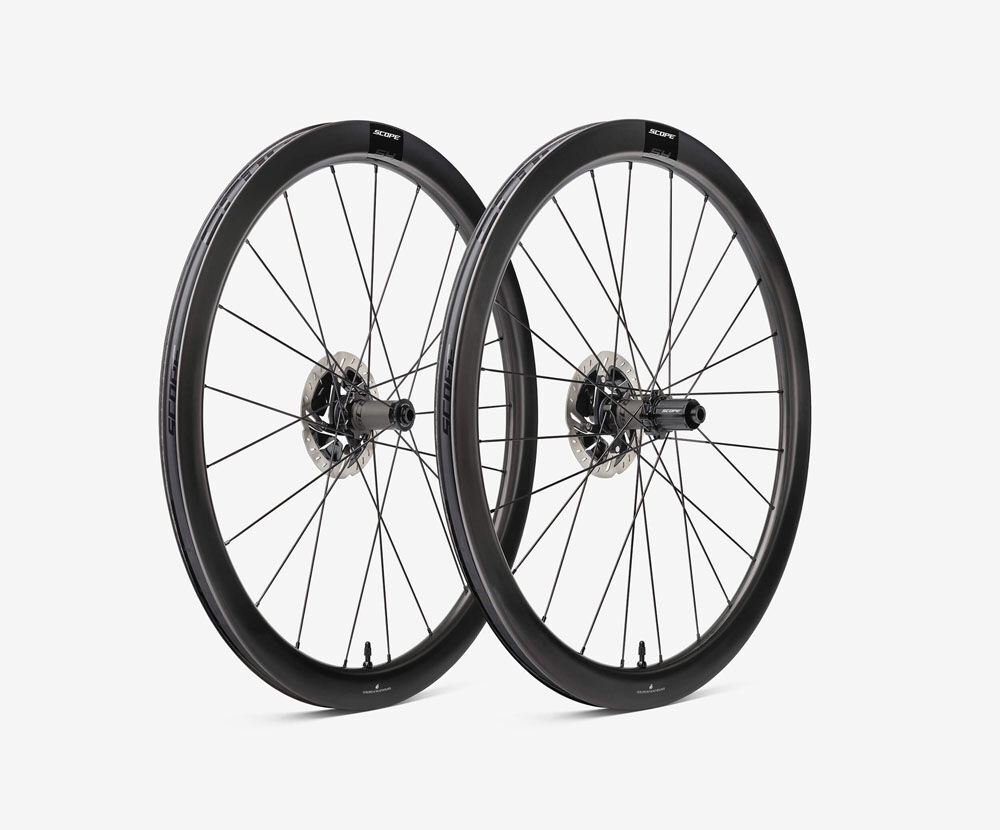

Scope's S4 is its outstanding all-rounder: 45mm deep carbon rims that balance aero speed, weight and stiffness at a claimed 1623g, hand-built with proven Scope technology.

Highlights

  • 45mm deep carbon rims, 26mm external / 19mm internal width
  • 1623g claimed set weight
  • Tubeless ready, optimum tyre width 25mm
  • Scope S-Series hubs with 3-pawl engagement and custom SKF bearings
  • Hand-built, with tubeless valves and tubeless rim tape pre-installed

Sport Series: proven Scope technology

Scope's Sport Series carries over proven technology from its previous generation of carbon wheels. Like the Race Series, the wheels are hand-built to the same quality standards and developed in the Netherlands for a balance of aerodynamics, stiffness and durability. Local Reinforcement adds carbon layers only around the spoke holes to save weight while keeping strength and stiffness, and the Scope Tubeless System is designed for easy mounting, direct inflation and long-lasting pressure.

Hubs and spokes

Scope S-Series hubs use a 3-pawl engagement system and custom SKF bearings. Wheels are laced with Sapim CX-Leader spokes, 21 front / 24 rear.

Compatibility & fit

Disc brake version with Centerlock rotor mounts and 12 x 100mm front / 12 x 142mm rear thru-axles; Scope offers special end caps for other axle configurations. Choose a Shimano HG freehub body for Shimano road cassettes or SRAM XDR for SRAM XDR cassettes. Scope recommends 25-30mm road tyres or 35-57mm gravel tyres, with an optimum of 25mm; the rims also run clincher tyres with inner tubes. Wheel fitting, tyre installation and set-up are separate Tune Cycles workshop services and are not included.

Options

OptionValueDescription
FreehubShimano HGShimano HG freehub body
FreehubSRAM XDRSRAM XDR freehub body
Scope provides a limited three-year warranty on its Race and Sport series wheels against manufacturing and material defects. It covers the original purchaser and is activated by registering the product with Scope within 30 working days of purchase. Wear parts such as rim tape, freehub bodies, pawls, springs, bearings and decals are excluded, as is damage from crashes, impacts, improper use or incorrect assembly. Scope also runs a separate lifetime crash replacement programme. For warranty support, return the product to Tune Cycles and we'll manage the claim with the brand's Australian distributor.
  • 45mm carbon rims, 19mm internal width
  • Tubeless ready with valves and rim tape pre-installed
  • 3-pawl S-Series hubs
  • Sapim CX-Leader spokes
  • Centerlock disc, 12 x 100 / 12 x 142mm thru-axles
  • Hand-built, developed in the Netherlands
SeriesScope Sport Series
UseRoad, all-round
Rim materialCarbon
Rim depth45mm front and rear
External rim width26mm
Internal rim width19mm
Tubeless readyYes, rim tape and valves pre-installed
Optimum tyre width25mm
Recommended tyre widthRoad 25-30mm; gravel 35-57mm
Claimed set weight1623g (disc brake)
Rider weight limitNo weight limit, disc brake version (Scope)
HubsScope S-Series
Engagement3-pawl
BearingsFront 61802 + 61902; rear 2 x 61902 (custom SKF)
Axles12 x 100mm front, 12 x 142mm rear (thru-axle)
BrakeDisc, Centerlock
SpokesSapim CX-Leader, 21 front / 24 rear
Freehub optionsShimano HG, SRAM XDR
DecalsBlack
SKU ECH-P-SC2021148
Brand Scope
