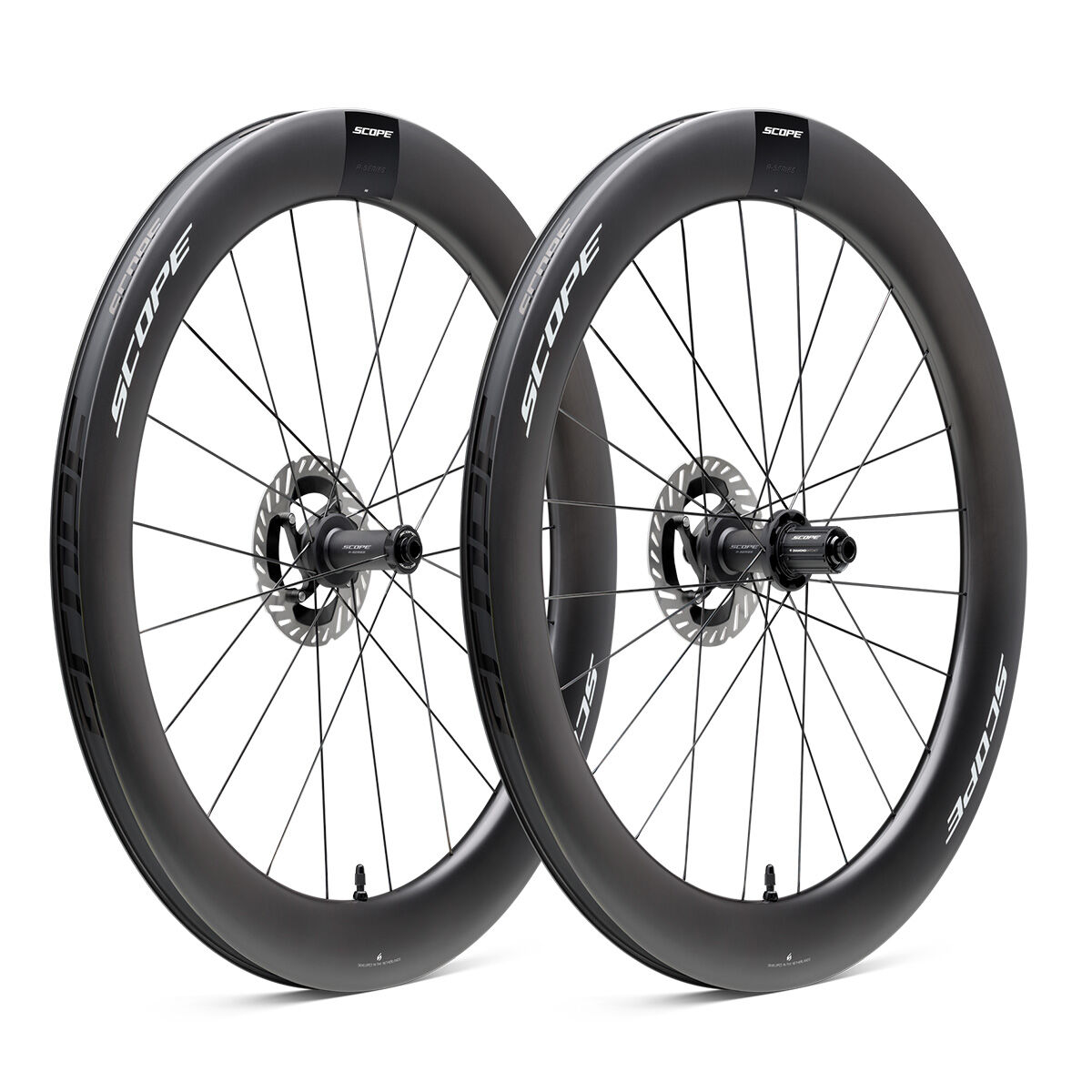

The R6 is Scope's aero road wheelset: 65mm deep rims taken from the Artech series, a 23mm hooked internal width for 28mm tyres, and a claimed 1525g set weight.

Highlights

  • 65mm deep carbon rims with 23mm internal width, optimised for 28mm tyres
  • 1525g claimed set weight (without rim tape and valves)
  • 36T Diamond Ratchet SL rear engagement with titanium, DLC-coated ratchets
  • SKF bearings and a labyrinth seal to keep dirt out
  • Tubeless valves and tubeless rim tape pre-installed

Race Series technology

Scope's Race Series borrows the rim profiles of its Artech series, shaped by Scope's Algorithm Enhanced Aerodynamics (AEA) process, without the Artech's Aeroscales. Local Reinforcement adds carbon layers only around the spoke holes to save weight while keeping strength and stiffness, and the Scope Tubeless System is designed for easy mounting, direct inflation and long-lasting pressure.

R-Series hubs

The rear hub uses Scope's 36T Diamond Ratchet SL engagement: titanium, finished with a diamond-like carbon coating for direct engagement, durability and low weight. Both hubs run SKF bearings and a mechanical labyrinth seal that keeps dirt out for long-term reliability. Wheels are laced with Sapim CX-Ray spokes.

Compatibility & fit

Disc brake only, with Centerlock rotor mounts. Axles are 12 x 100mm thru-axle front and 12 x 142mm thru-axle rear. Choose a Shimano HG freehub body for Shimano road cassettes or SRAM XDR for SRAM XDR cassettes. The hooked rim is tubeless ready and compatible with tubeless and clincher tyres; Scope's optimum tyre width is 28mm. Wheel fitting, tyre installation and set-up are separate Tune Cycles workshop services and are not included.

Options

OptionValueDescription
DecalsWhiteWhite decals
DecalsBlackBlack decals
FreehubShimano HGShimano HG freehub body
FreehubSRAM XDRSRAM XDR freehub body
Scope provides a limited three-year warranty on its Race and Sport series wheels against manufacturing and material defects. It covers the original purchaser and is activated by registering the product with Scope within 30 working days of purchase. Wear parts such as rim tape, freehub bodies, pawls, springs, bearings and decals are excluded, as is damage from crashes, impacts, improper use or incorrect assembly. Scope also runs a separate lifetime crash replacement programme. For warranty support, return the product to Tune Cycles and we'll manage the claim with the brand's Australian distributor.
  • 65mm carbon rims derived from Scope's Artech profiles
  • 23mm internal width, hooked, tubeless ready
  • 36T Diamond Ratchet SL hub engagement
  • SKF bearings with labyrinth sealing
  • Sapim CX-Ray spokes, 21 front / 24 rear
  • Centerlock disc, 12 x 100 / 12 x 142mm thru-axles
SeriesScope Race Series
UseRoad (aero)
Rim materialCarbon
Rim depth65mm front and rear
External rim width31mm
Internal rim width23mm
Rim bedHooked
Tubeless readyYes, rim tape and valves pre-installed
Optimum tyre width28mm
Max tyre pressure8.6 bar / 125 psi
Claimed set weight1525g (without rim tape and valves, ±5%)
Rider weight limitNo weight limit (Scope)
HubsScope R-Series
Engagement36T Diamond Ratchet SL
BearingsFront 2 x 61803 SKF; rear 3 x 61803 + 1 x 61903 SKF
Axles12 x 100mm front, 12 x 142mm rear (thru-axle)
BrakeDisc, Centerlock
SpokesSapim CX-Ray, 21 front / 24 rear
Freehub optionsShimano HG, SRAM XDR
Decal optionsWhite, Black
SKU ECH-P-SC2025330
Brand Scope
