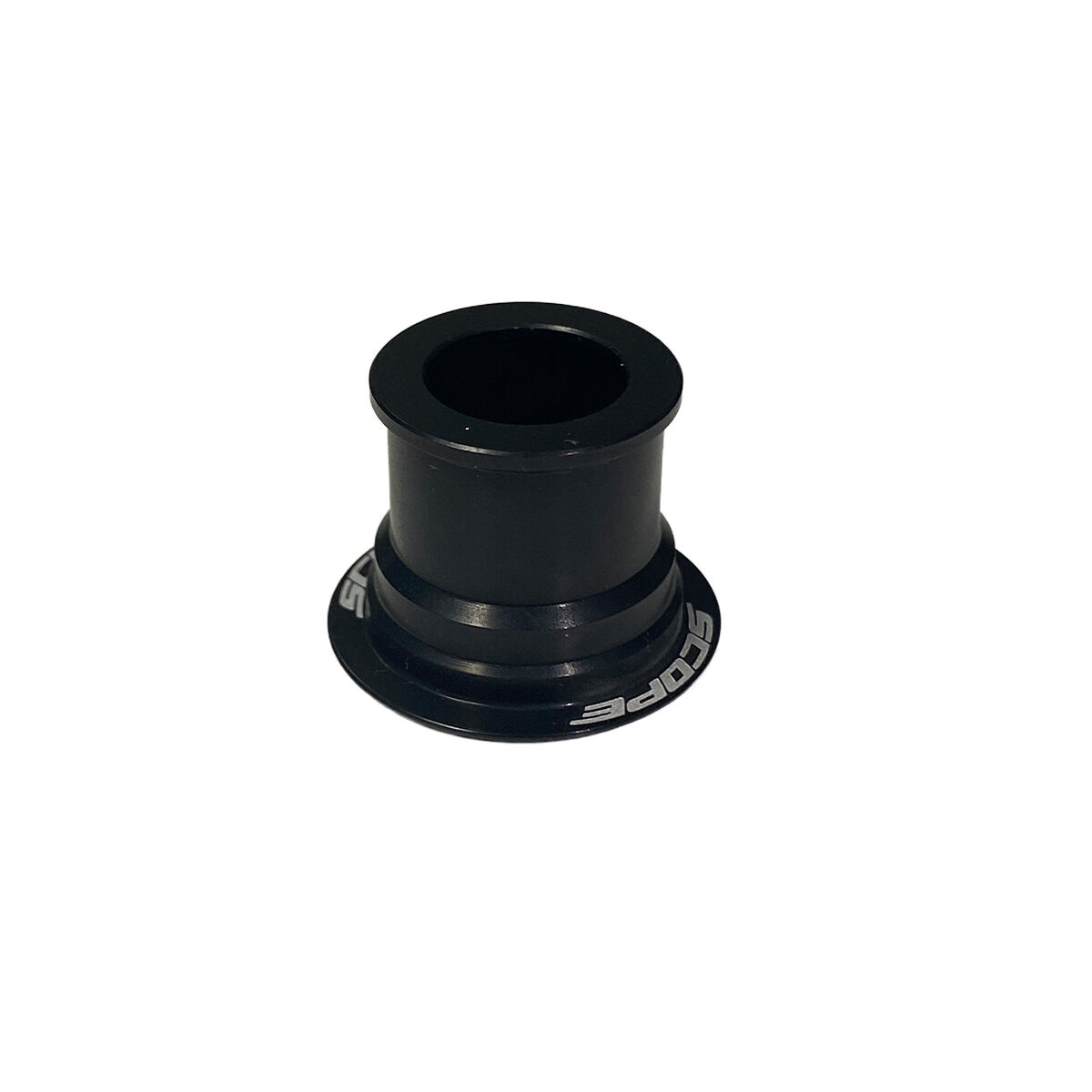

End caps locate the front wheel in the fork and seal the hub's bearings. Replace a lost or damaged Artech front end cap with the genuine Scope part.

Highlights

  • Genuine Scope Artech spare part
  • Non-drive-side end cap for the Artech front disc hub 18H (12x100)
  • Also supplied in Scope's front axle and end cap kit

Where it fits

In Scope's Artech exploded view this end cap (SC2024103) sits on the non-drive side of the front hub, outside the SKF 61803 bearing. Scope also groups it with the front axle and O-ring as the Axle and End Cap kit – Front Hub (SC2024157).

Compatibility & fit

Fits the Scope Artech front disc brake hub, 18 hole, 12x100mm (hub SC2024117), as used on Artech road wheelsets. Not for R-Series or S-Series hubs. Fitting is a separate Tune Cycles workshop service and is not included.

Scope's warranty covers manufacturing and material defects: three years on Sport and Race series products and lifetime on Artech series products, activated by registering the product within 30 working days of purchase. Scope excludes wear-and-tear parts, which it lists as brake pads, rim tape, freehubs, rim braking surfaces, pawls, springs, bearings and decoration. For warranty support, return the product to Tune Cycles and we'll manage the claim with the brand's Australian distributor.
  • Genuine Scope Artech front end cap
  • Non-drive side
  • 12x100mm thru-axle standard
  • For the Artech 18H 3D-printed front disc hub
BrandScope
SeriesArtech
PartFront hub end cap, non-drive side
Part numberSC2024103
Axle standard12x100mm
HubArtech front disc hub 18H (SC2024117)
SKU ECH-SC2024103
Brand Scope
Shipping Weight 0.3000kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
