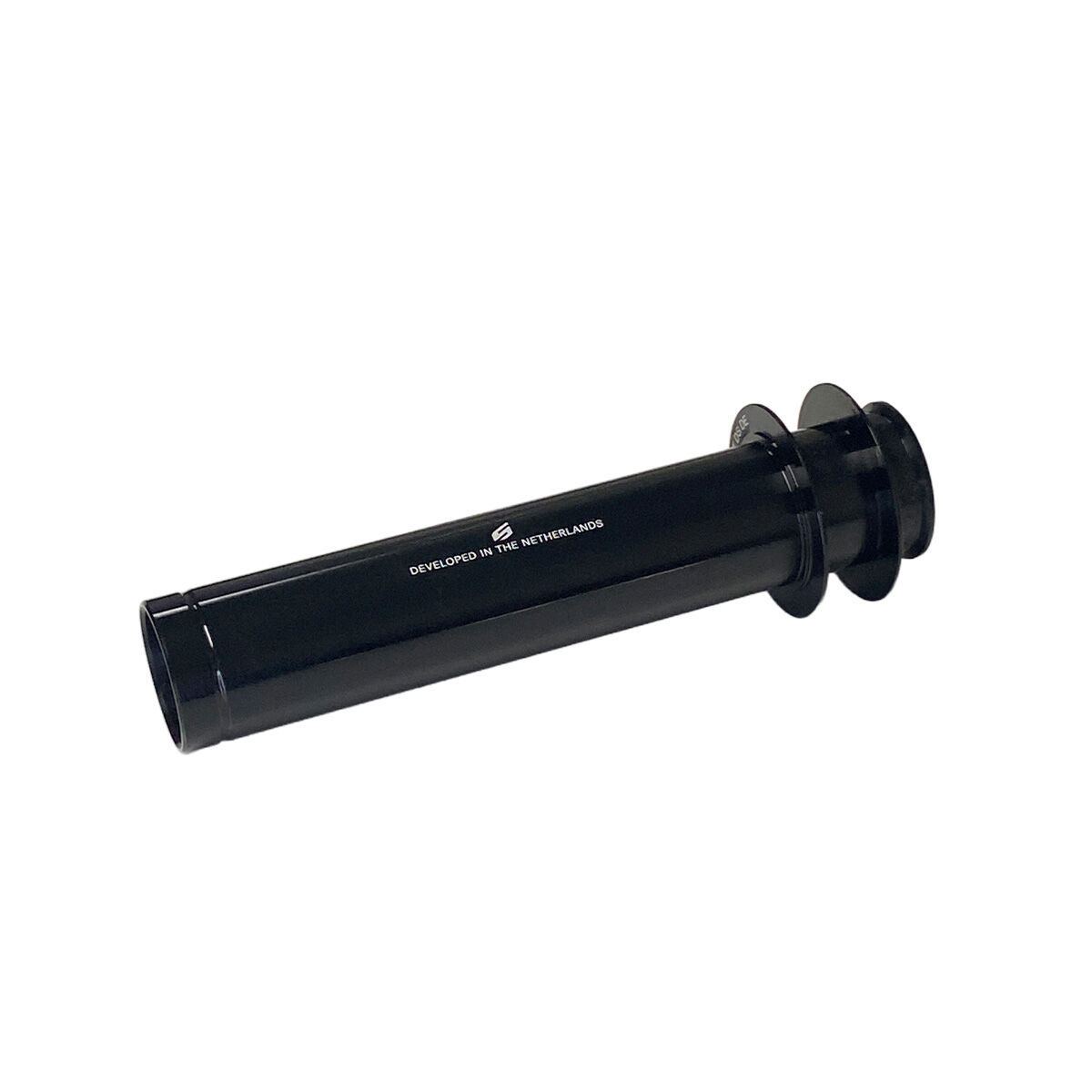

The axle is the backbone of the Artech front hub, carrying both bearings and the end cap. If it's damaged, this genuine Scope part restores the hub to factory specification.

Highlights

  • Genuine Scope Artech spare part
  • Axle for the Artech front disc hub 18H (12x100)
  • Runs on two SKF 61803 bearings
  • Also supplied in Scope's front axle and end cap kit

Where it fits

In Scope's Artech exploded view this axle (SC2024104) runs through the front hub shell on two SKF 61803 bearings, with an O-ring and the non-drive-side end cap (SC2024103). Scope also groups these three parts as the Axle and End Cap kit – Front Hub (SC2024157).

Compatibility & fit

Fits the Scope Artech front disc brake hub, 18 hole, 12x100mm (hub SC2024117), as used on Artech road wheelsets. Not for R-Series or S-Series hubs, which use their own axles. Fitting is a separate Tune Cycles workshop service and is not included.

Scope's warranty covers manufacturing and material defects: three years on Sport and Race series products and lifetime on Artech series products, activated by registering the product within 30 working days of purchase. Scope excludes wear-and-tear parts, which it lists as brake pads, rim tape, freehubs, rim braking surfaces, pawls, springs, bearings and decoration. For warranty support, return the product to Tune Cycles and we'll manage the claim with the brand's Australian distributor.
  • Genuine Scope Artech front hub axle
  • 12x100mm thru-axle standard
  • For the Artech 18H 3D-printed front disc hub
  • Fits SKF 61803 bearings
BrandScope
SeriesArtech
PartFront hub axle
Part numberSC2024104
Axle standard12x100mm
HubArtech front disc hub 18H (SC2024117)
BearingsSKF 61803 x 2 (not included)
SKU ECH-SC2024104
Brand Scope
Shipping Weight 0.3000kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
