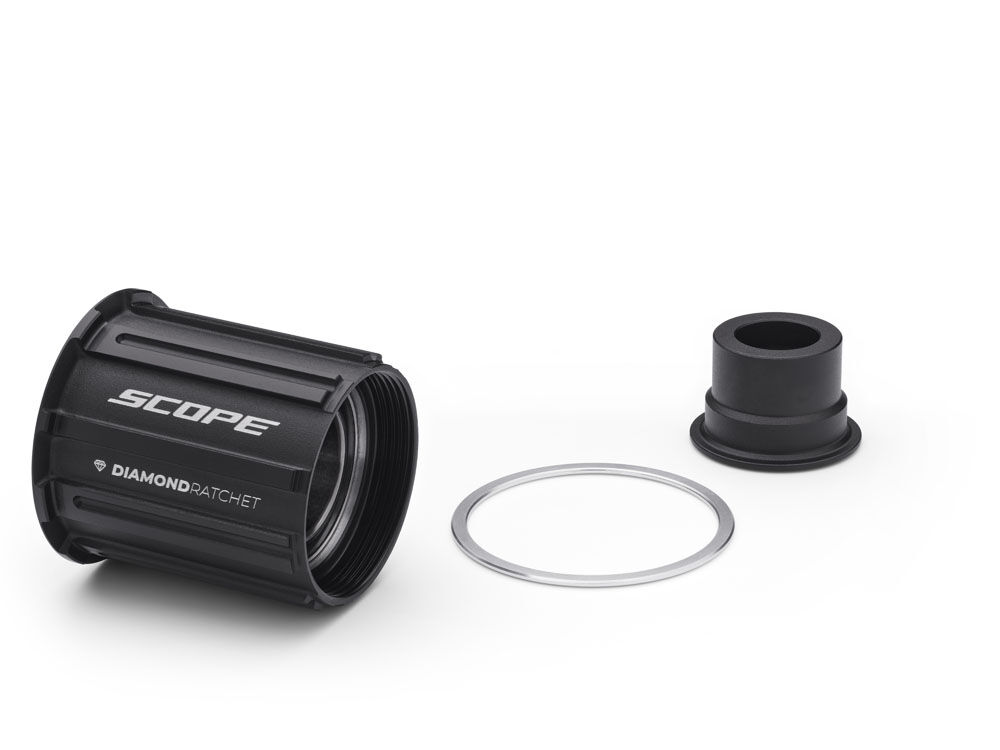

A genuine Scope replacement freehub body for Scope R-Series (Race Series) rear hubs. Swap to a different cassette standard or replace a worn, notched body and keep the hub running the way Scope designed it.

Highlights

  • Reinforced AL7075 aluminium body
  • Scope says it resists cassettes biting into the splines
  • Changes over without special tools, per Scope
  • Freehub-specific drive-side end cap included
  • Five cassette standards: Shimano HG, Campagnolo, SRAM XDR, Shimano Microspline and Campagnolo N3W

Change cassette standards

The R-Series rear hub takes interchangeable freehub bodies, so moving from Shimano HG to SRAM XDR, Campagnolo, Campagnolo N3W or Shimano Micro Spline is a body swap rather than a new wheel. Scope includes the matching drive-side end cap when a freehub body is ordered.

Built to last

Scope machines its freehub bodies from reinforced AL7075 aluminium to keep weight down and stop cassette cogs notching the splines, which keeps cassette removal and gear indexing clean.

Compatibility & fit

Fits Scope R-Series (Race Series) rear hubs. Scope's exploded view lists the same freehub bodies for the disc brake 12x142mm hubs of both the internal-nipple and external-nipple generations, the RTT disc hub and the 130mm QR rim brake rear hub. Not interchangeable with Artech or S-Series bodies. Choose the body that matches your cassette. Fitting is a separate Tune Cycles workshop service and is not included.

Options

FreehubFitsScope part no.
Shimano HGShimano HG-spline cassettesSC2021255
CampagnoloCampagnolo-spline cassettes (not N3W)SC2021256
SRAM XDRSRAM XDR cassettesSC2021257
Shimano MicrosplineShimano Micro Spline cassettesSC2021258
Campagnolo N3WCampagnolo N3W cassettesSC2021386
Scope's warranty covers manufacturing and material defects. Scope lists freehubs, bearings, pawls and springs as wear parts, so normal wear isn't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with the brand's Australian distributor.
  • Genuine Scope R-Series spare part
  • Reinforced AL7075 aluminium
  • Drive-side end cap included
  • Tool-free swap, per Scope
  • Shimano HG, SRAM XDR, Campagnolo, N3W and Micro Spline options
BrandScope
PartFreehub body
FitsScope R-Series (Race Series) rear hubs
MaterialReinforced AL7075 aluminium
IncludedFreehub body and matching drive-side end cap
OptionsShimano HG, Campagnolo, SRAM XDR, Shimano Microspline and Campagnolo N3W
SKU ECH-P-SC2021255
Brand Scope
