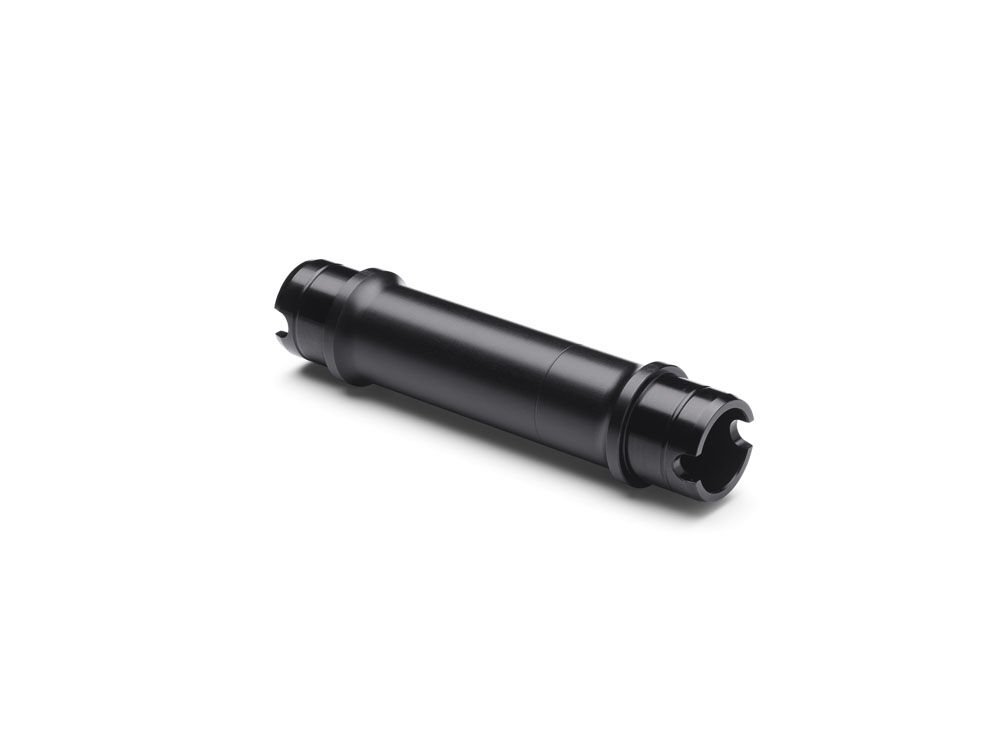

A bent or damaged axle makes a hub bind and wear its bearings early. This genuine Scope axle restores an S-Series disc brake hub to factory spec.

Highlights

  • Genuine Scope S-Series spare part
  • For S-Series disc brake hubs
  • Front and rear axles listed separately
  • Axle only; end caps are separate Scope kits

Axle only

Scope lists S-Series end caps and bearings as separate kits, so this part is the hub axle alone. Check your end caps and bearings while the hub is apart.

Compatibility & fit

Front axle fits the S-Series front disc brake hub (21H, 12x100mm). Rear axle fits the S-Series rear disc brake hub (24H, 12x142mm). Not for rim brake, R-Series or Artech hubs. Fitting is a separate Tune Cycles workshop service and is not included.

Options

FitmentHubScope part no.
Front 21H Disc BrakeS-Series front disc brake hub, 21H, 12x100mm thru-axleSC2021375
Rear 24H Disc BrakeS-Series rear disc brake hub, 24H, 12x142mm thru-axleSC2021376
Covered against manufacturing and material defects under Scope's warranty terms. Damage from crashes, impact or incorrect assembly isn't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with the brand's Australian distributor.
  • Genuine Scope S-Series spare part
  • Replacement hub axle
  • Front and rear options
  • Matches factory S-Series hub parts
BrandScope
PartHub axle (axle only)
FitsS-Series disc brake hubs
Front 21H Disc BrakeS-Series front disc brake hub, 21H, 12x100mm thru-axle (SC2021375)
Rear 24H Disc BrakeS-Series rear disc brake hub, 24H, 12x142mm thru-axle (SC2021376)
SKU ECH-P-SC2021375
Brand Scope
