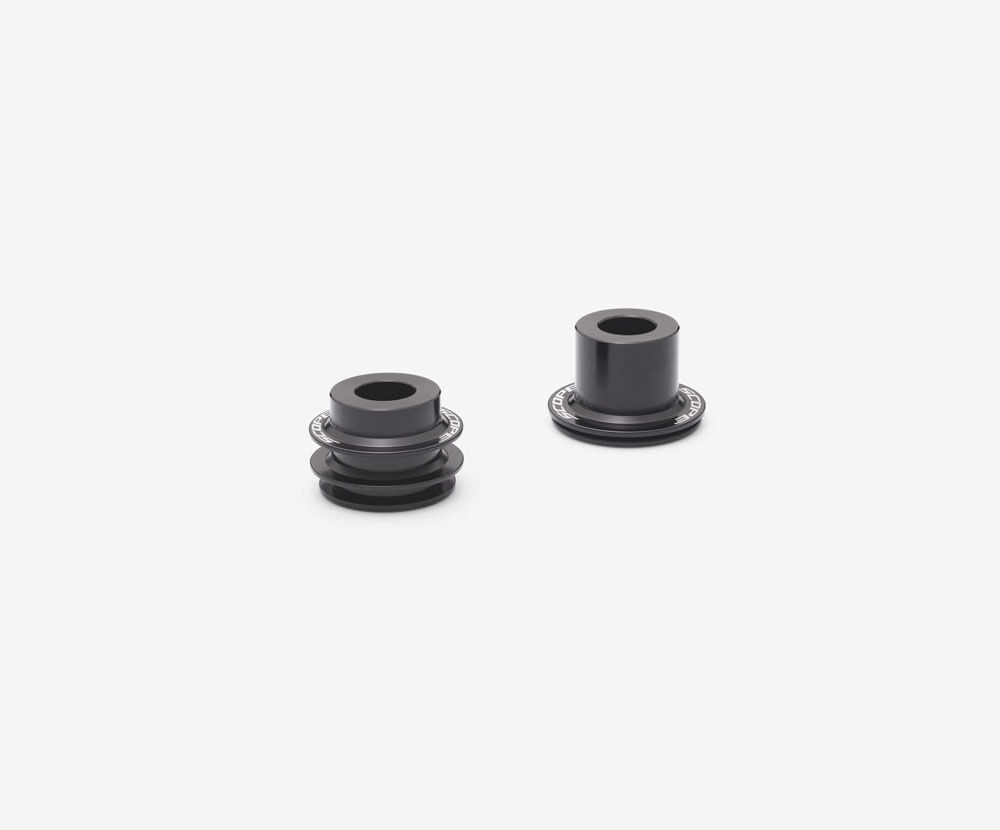

Set your Scope Sport Series disc wheels up for the thru-axle on your frame and fork. These genuine Scope caps define the hub's axle standard, so a new bike needs caps, not wheels.

Highlights

  • Genuine Scope spare part for Sport Series (S-Series) disc hubs
  • Six thru-axle options across front and rear
  • 12 x 100 mm front and 12 x 142 mm rear are the caps Scope fits as standard
  • Hassle-free mounting on the Scope hub axle

Scope part numbers

Scope's S-Series exploded view lists the 12 x 100 mm front caps as SC2021349 and the 12 x 142 mm rear end cap kit as SC2021353. On the rear hub, Scope makes the drive-side cap specific to the freehub body.

Fitting is available as a separate Tune Cycles workshop service; it is not included with the part.

Compatibility & fit

Fits Scope Sport Series (S-Series) disc brake hubs only. Race Series and Artech hubs use different end caps. Choose front or rear caps to match your fork and frame axle, and check the freehub body on your rear wheel.

Options

OptionPositionAxle standard
Front 10x100mmFront10 x 100 mm thru-axle
Front 12x100mmFront12 x 100 mm thru-axle
Front 15x100mmFront15 x 100 mm thru-axle
Rear 10x135mmRear10 x 135 mm thru-axle
Rear 12x135mmRear12 x 135 mm thru-axle
Rear 12x142mmRear12 x 142 mm thru-axle
Covered against manufacturing and material defects under Scope's warranty terms. Damage from crashes, incorrect installation or modification is not covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with the brand's Australian distributor.
  • Genuine Scope Sport Series spare part
  • Six thru-axle standards to choose from
  • Standard caps: 12 x 100 mm front, 12 x 142 mm rear
  • Made for S-Series disc hubs
BrandScope
TypeHub end caps
SeriesSport Series (S-Series)
Brake typeDisc brake
Axle standardThru-axle
OptionsFront 10x100, 12x100, 15x100 mm; Rear 10x135, 12x135, 12x142 mm
Scope part numbersSC2021349 (12x100 front), SC2021353 (12x142 rear kit)
