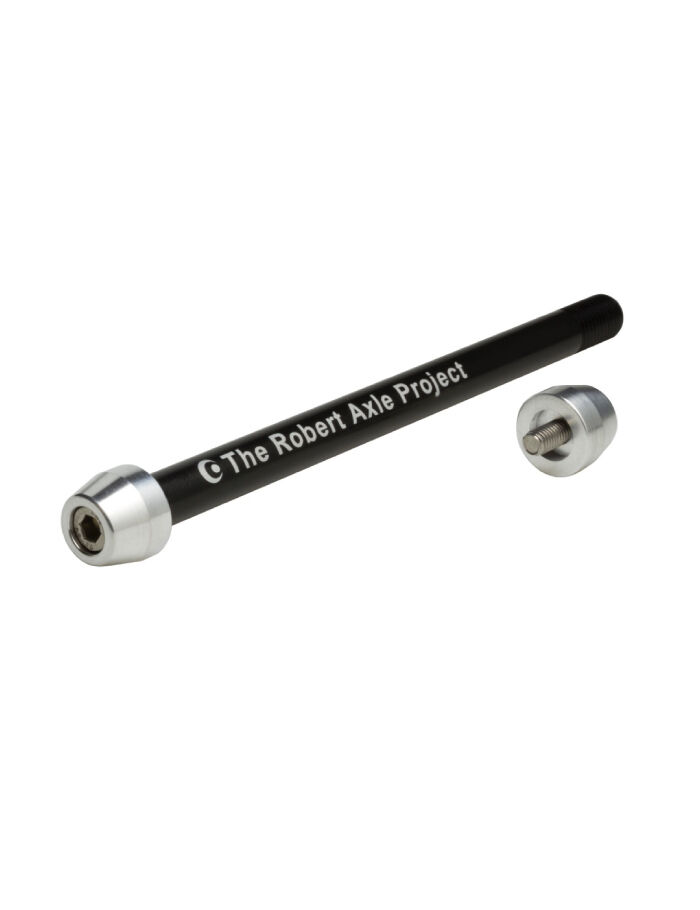

Swaps your bike's thru-axle for a Robert Axle Project trainer axle, so a thru-axle bike can mount on a wheel-on resistance trainer. This M12x1.75 axle is sold as separate fixed-length axles rather than one adjustable shaft - choose the length Robert Axle Project or the Tune workshop has confirmed for your bike.

Highlights

  • M12x1.75 thread
  • True lengths from 159mm to 192mm, no spacers needed
  • 7075 aluminium shaft, hard-anodised
  • Fits with a standard 5mm hex wrench
  • Usable on or off the trainer - remove the drive-side end to ride outside

Compatibility & fit

Fits 12mm thru-axle bikes using an M12x1.75 thread. Thru-axle length is not the same as hub spacing, and axle ends extend roughly 15mm past the frame each side - measure your trainer at its widest setting before ordering. Confirm your bike's exact axle length with Robert Axle Project's online Axle Finder, or bring the bike to the Tune workshop and we'll measure the existing axle and fit the replacement.

Options

LengthWhat differs
159mmTrue shaft length 159mm
167mmTrue shaft length 167mm
170mmTrue shaft length 170mm
174mmTrue shaft length 174mm
180mmTrue shaft length 180mm
192mmTrue shaft length 192mm
Robert Axle Project's lifetime warranty covers defects in material and workmanship to the original purchaser, for the lifetime of ownership - it excludes misuse, improper installation, accidents and normal wear and tear. For warranty support, return the product to Tune Cycles and we'll manage the claim with Robert Axle Project's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • M12x1.75 thread
  • Six true lengths, 159-192mm
  • 7075 aluminium shaft, hard-anodised
  • 5mm hex wrench to install
BrandRobert Axle Project
Axle diameter12mm
ThreadM12x1.75
Material7075 aluminium, hard-anodised
Tool5mm hex wrench
Length159mm, 167mm, 170mm, 174mm, 180mm or 192mm (true length, no spacers)
SKU DTW-RAG-TRA2-PAR
Brand Robert Axle Project
