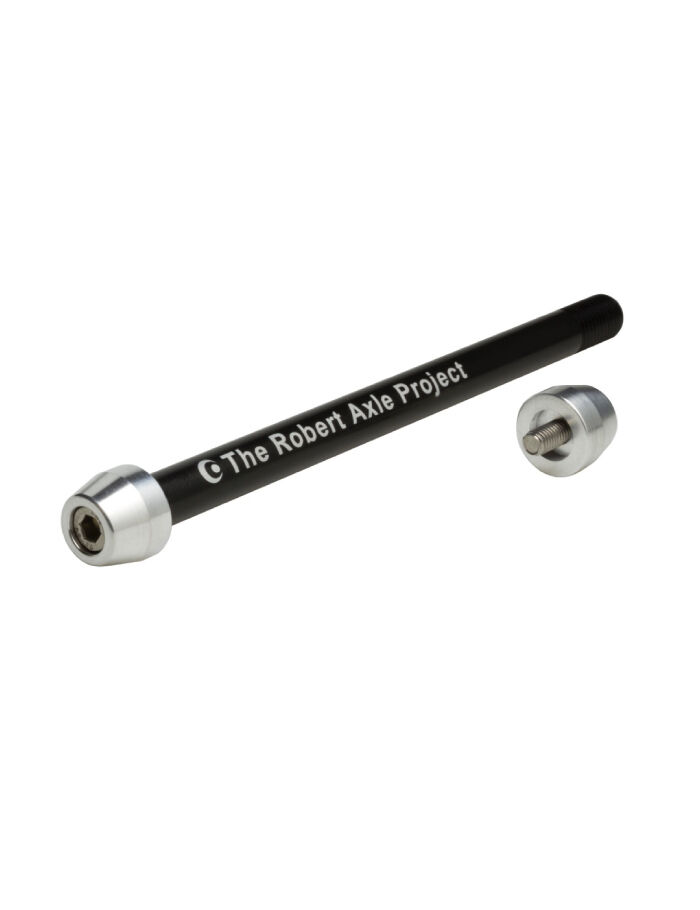

Swaps your bike's thru-axle for a Robert Axle Project trainer axle, so a thru-axle bike can mount on a wheel-on resistance trainer. This one has a true shaft length of 172mm, M12x1.5 thread, and comes with a spacer to shorten it to 169mm.

Highlights

  • 172mm true length, shortens to 169mm with the included spacer
  • M12x1.5 thread
  • 7075 aluminium shaft, hard-anodised
  • Usable on or off the trainer - remove the drive-side end to ride outside

Compatibility & fit

Fits 12mm thru-axle bikes using an M12x1.5 thread. Thru-axle length is not the same as hub spacing, and axle ends extend roughly 15mm past the frame each side - measure your trainer at its widest setting before ordering. Confirm your bike's exact axle spec with Robert Axle Project's online Axle Finder, or bring the bike to the Tune workshop and we'll measure the existing axle and fit the replacement.

Robert Axle Project's lifetime warranty covers defects in material and workmanship to the original purchaser, for the lifetime of ownership - it excludes misuse, improper installation, accidents and normal wear and tear. For warranty support, return the product to Tune Cycles and we'll manage the claim with Robert Axle Project's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • 172mm true length, 169mm with included spacer
  • M12x1.5 thread
  • 7075 aluminium shaft, hard-anodised
  • 5mm hex wrench to install
BrandRobert Axle Project
Axle diameter12mm
ThreadM12x1.5
Length172mm true, 169mm with included spacer
Material7075 aluminium, hard-anodised
Weightapprox 90g
SKU DTW-RAG-TRA204
Barcode # 602150467315
Brand Robert Axle Project
