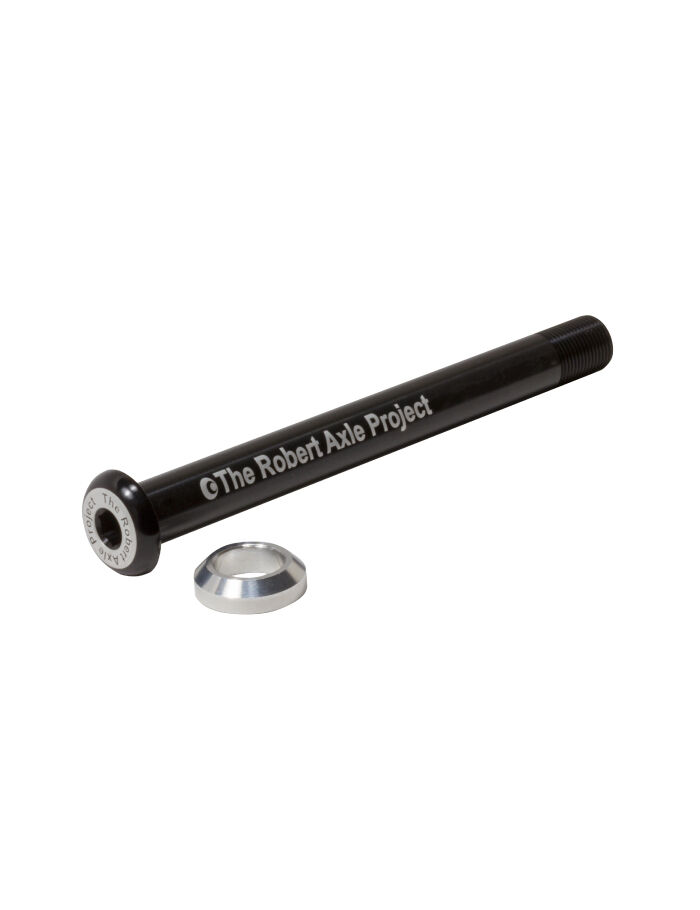

A Robert Axle Project Lightning Bolt-On axle replaces a stock rear thru-axle with a lighter, lower-profile bolt-on one machined from 7075 aluminium — this listing is the 12mm, M12x1.0 axle with a 158mm true length, set to 153mm with the included spacer.

Highlights

  • 12mm diameter, M12x1.0 thread, 158mm true length
  • Included 5mm tapered X-12 spacer sets the length to 153mm
  • 7075 aluminium shaft, hard-anodised, 40g
  • Installs and removes with a standard 6mm hex wrench

Compatibility & fit

This is a generic M12x1.0 rear bolt-on replacement, not tied to one bike brand or hub standard — the frame's thru-axle bore has to be the right length and thread, which varies by bike. Confirm your bike on Robert Axle Project's online Axle Finder (robertaxleproject.com) before ordering, or bring your bike to the Tune Cycles workshop and we'll measure your existing axle and fit the replacement.

Robert Axle Project warrants its axles to be free from defects in material and workmanship for the lifetime of the original purchaser's ownership, covering manufacturing faults only — not misuse, crashes, incorrect installation or normal wear and tear. For warranty support, return the product to Tune Cycles and we'll manage the claim with Robert Axle Project's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • 12mm diameter, M12x1.0 thread, 158mm true length
  • Included 5mm tapered X-12 spacer sets the length to 153mm
  • 7075 aluminium shaft, hard-anodised, 40g
  • Compatible with Hexlox security systems
  • Installs and removes with a standard 6mm hex wrench
Axle diameter12mm
Thread pitchM12x1.0
True length158mm
With spacer153mm
Weight40g
Material7075 aluminium, hard-anodised
FitFrame-specific — confirm with Robert Axle Project's Axle Finder
SKU DTW-RAG-LIG617
Barcode # 602150467445
Brand Robert Axle Project
