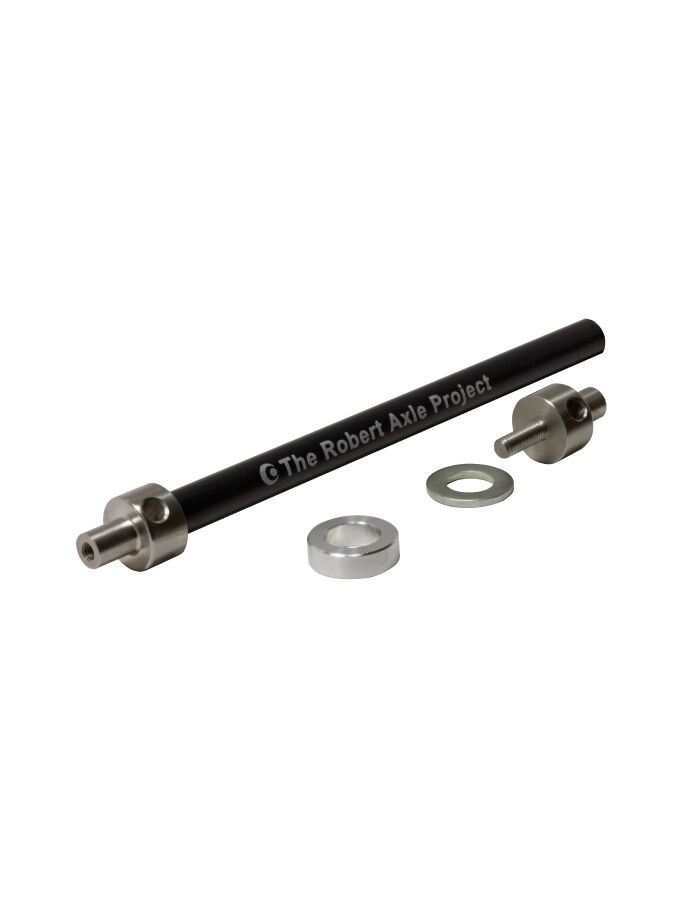

A 12mm thru-axle that replaces your bike's own rear axle and lets you attach a BOB Trailer, so you can tow it with a thru-axle bike instead of the trailer's original quick-release mount.

Highlights

  • M12x1.75 thread pitch
  • 198mm true shaft length, shortens to 192mm with the included spacer
  • 7075 aluminium shaft, hard black anodised; stainless steel axle ends
  • Installs and removes with a standard 5mm hex key, no special tools
  • Designed for BOB Trailer bobbins (sold separately, or reuse your bike's stock BOB quick-release bobbins)

Fit

Thread pitch, shaft length and hub width all have to match your bike exactly, and a thru-axle's length is not the same number as your hub's width spec. Check your bike against Robert Axle Project's online Axle Finder before ordering.

Compatibility & fit

Fits bikes with a 12mm thru-axle and M12x1.75 rear dropout thread – the longer shaft suits wider fat-bike-style hub spacing. The Tune workshop can measure your existing axle and fit the new one.

Robert Axle Project backs this product with its Lifetime Warranty: free from defects in materials and workmanship, to the original purchaser, for as long as you own it. Normal wear and tear, misuse, neglect, improper installation or maintenance, alteration and accident damage aren't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Robert Axle Project's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • M12x1.75 thread, 198mm shaft (shortens to 192mm)
  • 7075 aluminium, hard black anodised, stainless steel ends
  • 5mm hex key install, no special tools
  • Bobbins sold separately or reuse your bike's own BOB QR bobbins
BrandRobert Axle Project
TypeBOB Trailer thru-axle
Thread pitchM12x1.75
Shaft length198mm (shortens to 192mm with the included spacer)
Diameter12mm
Material7075 aluminium shaft, stainless steel ends
Tool5mm hex key
