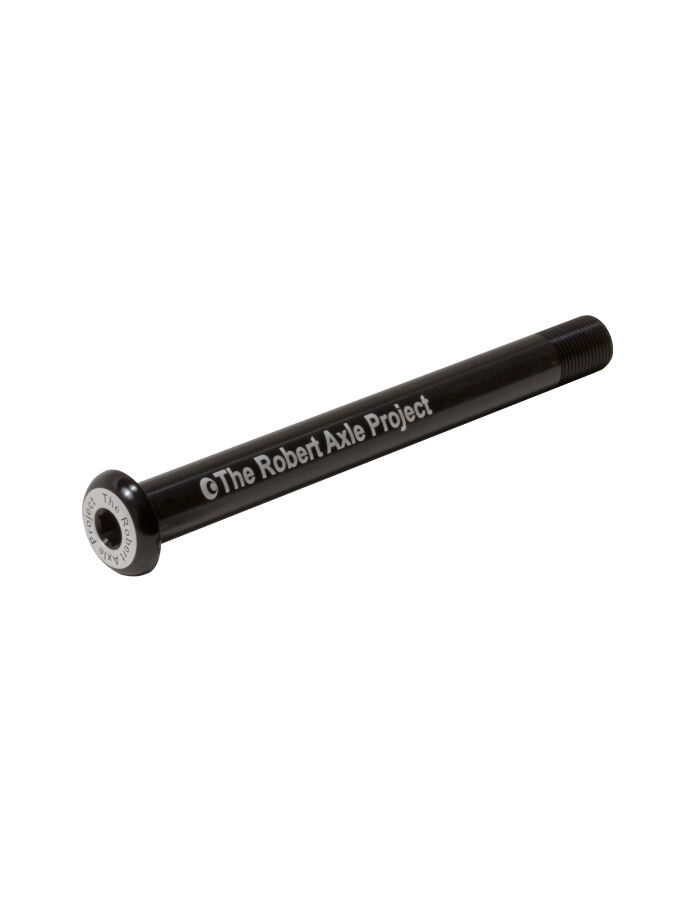

A Robert Axle Project Lightning Bolt-On axle built specifically for bikes using Mavic's Speed Release system, so you can replace the proprietary front axle with a simpler bolt-on design.

Highlights

  • 12mm diameter, 119mm true length, for a 12x100 front hub
  • Proprietary “double lead-in” thread, unique to Mavic Speed Release
  • 7075 aluminium shaft, hard-anodised, 26g
  • Installs and removes with a standard 6mm hex wrench

Mavic Speed Release only

This axle's double lead-in thread works only with Mavic Speed Release dropouts — it is not a standard M12 thread and will not fit any other bike.

Compatibility & fit

This axle fits Mavic Speed Release-equipped bikes only. Bring your bike to the Tune Cycles workshop and we'll check your existing axle before fitting the replacement.

Robert Axle Project warrants its axles to be free from defects in material and workmanship for the lifetime of the original purchaser's ownership, covering manufacturing faults only — not misuse, crashes, incorrect installation or normal wear and tear. For warranty support, return the product to Tune Cycles and we'll manage the claim with Robert Axle Project's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • 12mm diameter, 119mm true length, 12x100 front hub
  • Proprietary double lead-in thread — Mavic Speed Release only
  • 7075 aluminium shaft, hard-anodised, 26g
  • 6mm hex wrench installation, no special tools
Axle diameter12mm
Length119mm
Hub spacing12x100 (front)
ThreadMavic Speed Release double lead-in — not a standard M12 thread
Material7075 aluminium, hard-anodised
Weight26g
FitMavic Speed Release-equipped bikes only
SKU DTW-RAG-LIG518
Brand Robert Axle Project
