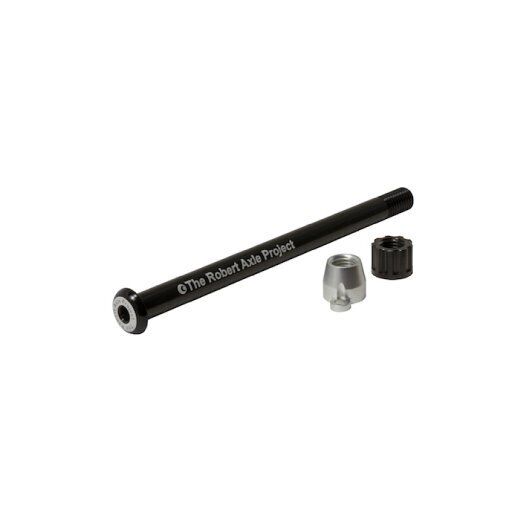

A Robert Axle Project Lightning Bolt-On axle replaces the proprietary front R.A.T. axle on Focus bikes with a simpler bolt-on design and a standard threaded nut, so wheel changes no longer need the R.A.T. tool.

Highlights

  • 12mm diameter, for 12x100 front hubs
  • Replaces the Focus R.A.T. nut with a standard threaded nut
  • 7075 aluminium shaft, hard-anodised, 39g (axle + nut)
  • Installs and removes with a standard 6mm hex wrench

Fits Focus R.A.T. front forks

This axle is built specifically to replace the front R.A.T. axle on Focus bikes with a 12x100 hub — it is not a generic 12mm axle and will not suit other R.A.T. systems (Cervelo uses its own listing).

Compatibility & fit

Confirm your bike on Robert Axle Project's online Axle Finder (robertaxleproject.com) before ordering, or bring your bike to the Tune Cycles workshop and we'll measure your existing axle and fit the replacement.

Robert Axle Project warrants its axles to be free from defects in material and workmanship for the lifetime of the original purchaser's ownership, covering manufacturing faults only — not misuse, crashes, incorrect installation or normal wear and tear. For warranty support, return the product to Tune Cycles and we'll manage the claim with Robert Axle Project's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • 12mm diameter, 12x100 front hub
  • Replacement threaded nut included (R.A.T. tool no longer needed)
  • 7075 aluminium shaft, hard-anodised, 39g with nut
  • 6mm hex wrench installation, no special tools
Axle diameter12mm
Hub spacing12x100 (front)
FitFocus R.A.T.-equipped front forks only
Material7075 aluminium, hard-anodised
Weight39g (axle and replacement nut)
SKU DTW-RAG-LIG510.F
Barcode # 602150472920
Brand Robert Axle Project
