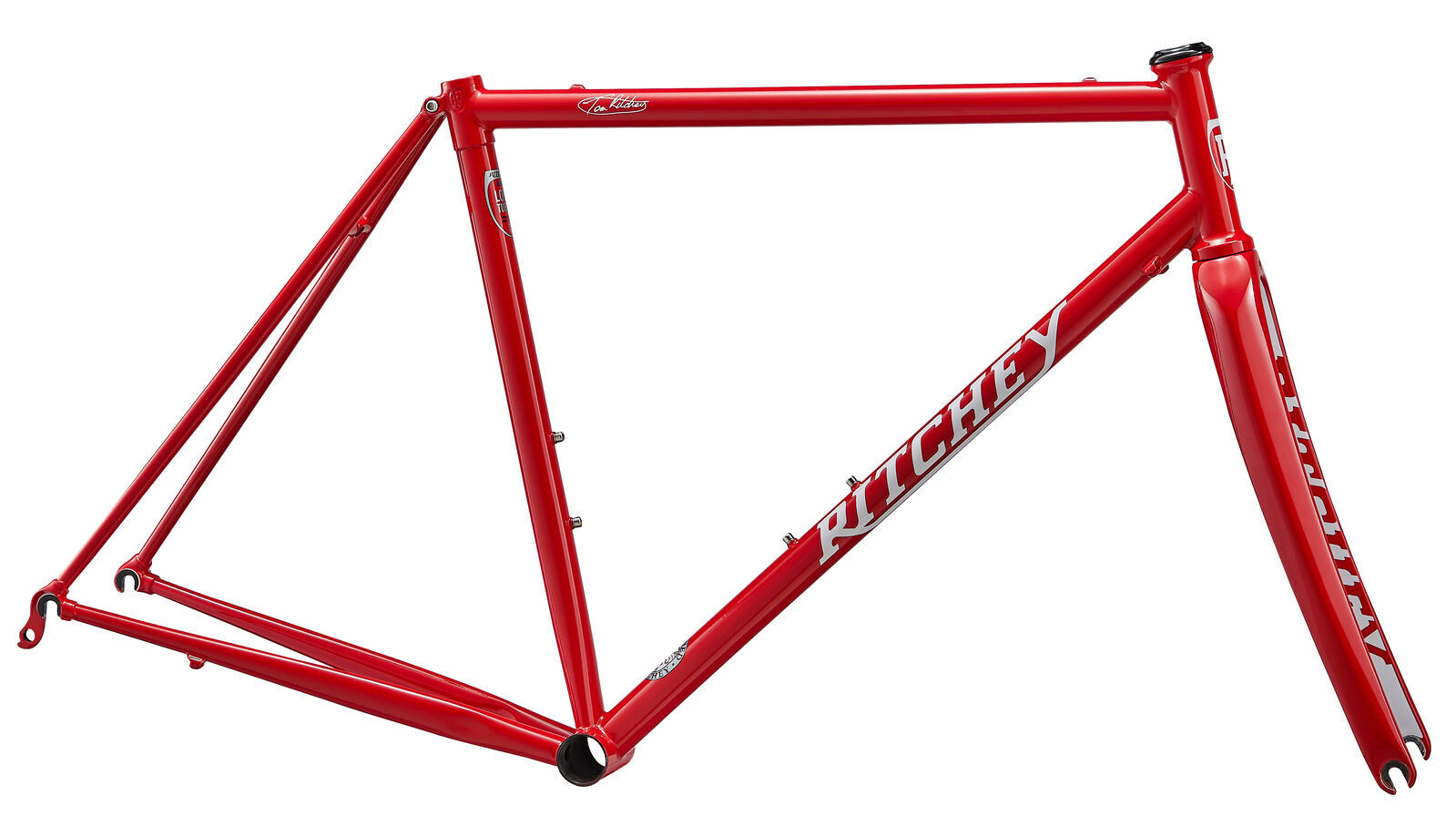

Tom Ritchey's own signature sits on the top tube of this steel road frameset – a direct expression of more than 50 years building frames, wrapped in Ritchey Classic Red paint.

Highlights

  • Heat-treated, triple-butted Ritchey Logic steel tubing, designed by Tom Ritchey, TIG-welded
  • Tom Ritchey's signature on the top tube
  • Ritchey WCS Carbon Road Fork and WCS drop-in headset included
  • 700x30c tyre clearance
  • Ritchey Classic Red

Frame details

The forged-and-machined integrated head tube takes a WCS drop-in headset (IS42/28.6 upper, 16mm stack height | IS42/30 lower), included. The frame runs a 68mm English-threaded bottom bracket, a 27.2mm seatpost with integrated collar (6Nm max torque) and a 28.6mm seat tube clamp (2.5Nm max).

Options

SizeWhat differs
53cmsmaller front-end fit; same frame spec, fork and Classic Red colourway
55cmlarger front-end fit; same frame spec, fork and Classic Red colourway

Compatibility & fit

Fits 700x30c tyres (38mm frame spacing, 40mm fork spacing, depending on tyre/rim) and rim brakes only. Ritchey lists the Road Logic platform in 49–59cm; this family is offered in 53cm and 55cm. Exact reach and stack per size aren't published on ritcheylogic.com's product page – check Ritchey's size chart or ask the Tune workshop for a fit check before ordering.

Ritchey covers this product for two years from the date of purchase against defects in materials and workmanship (the Ritchey International warranty, which covers Australia). Normal wear and tear isn't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Ritchey's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • Heat-treated, triple-butted Ritchey Logic steel tubing
  • Tom Ritchey's signature on the top tube
  • Ritchey WCS Carbon Road Fork and WCS headset included
  • 700x30c tyre clearance
  • Ritchey Classic Red, rim-brake only
BrandRitchey
Frame materialHeat-treated, triple-butted Ritchey Logic steel, TIG-welded
HeadsetWCS drop-in, IS42/28.6 upper | IS42/30 lower (included)
Bottom bracket68mm English threaded
Seatpost27.2mm, integrated collar
Brake mountRim brake only
Tyre clearance700x30c
ForkRitchey WCS Carbon Road Fork (included)
Frame weightapprox 1.77kg (size 55, Ritchey's figure)
ColourRitchey Classic Red
Sizesee Options table
SKU DTW-RIG-FRRDRLC25-PAR
