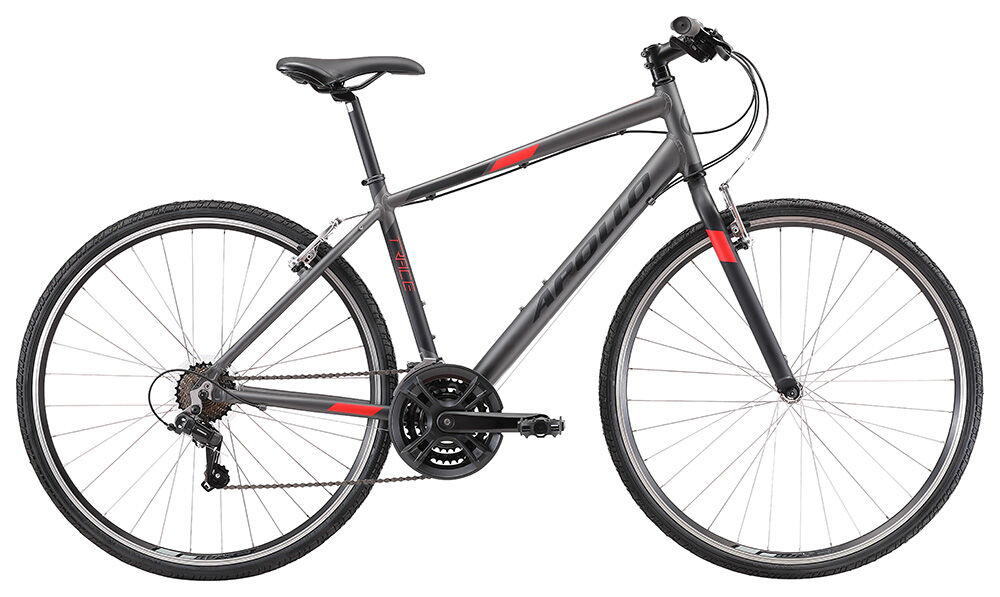

Apollo Trace 10 Flat Bar Hybrid Bike – Matte Charcoal / Black / Red, S
SKU code: APO-22011
The Trace 10 is a light, simple 700c flat-bar bike for getting around town, commuting and fitness rides.
- Butted alloy frame with pannier mounts
- Rigid trekking fork with rack and mudguard mounts
- Shimano 21-speed gearing with EZ Fire shifters
- Alloy linear-pull brakes
The details
Weinmann double-wall rims with sealed quick-release hubs and 700 x 38c Kenda Urban Sport tyres.
Sizes and colours
Available in sizes S to XL, in 2 colours: Matte Charcoal / Black / Red, Matte Silver / Black. Not sure which size suits you? Our team is happy to help you choose.
Apollo bikes are covered by Apollo Bicycle Co.'s limited warranty for the original purchaser, when bought new and assembled by an authorised dealer:
- Aluminium frame: 5 years against failure at any weld point (frame fatigue is not covered)
- Paint finish, parts and accessories: 12 months from the date of purchase
- Tyres and tubes are not covered
The warranty does not cover abuse, neglect, accidents, improper repair or maintenance, or modification. For warranty support, return the bike to Tune Cycles with your proof of purchase and we'll manage the claim with Apollo for you. This warranty is in addition to your rights under the Australian Consumer Law.
- Butted alloy frame with pannier mounts
- Rigid trekking fork with rack and mudguard mounts
- Shimano 21-speed gearing with EZ Fire shifters
- Alloy linear-pull brakes
| Model | Apollo Trace 10 |
|---|---|
| Colours | Matte Charcoal / Black / Red, Matte Silver / Black |
| Frame sizes | S, M, L, XL |
| Frame | 6061 butted alloy frame, pannier mounts and replaceable derailleur hanger |
| Fork | 700c hi-ten rigid integrated trekking fork with rack and fender mounts |
| Headset | A-head semi integrated 1-1/8" with 10mm cone spacer |
| Handlebar | Low riser, bore: 31.8mm, W:600mm, sweep: 6° |
| Grips | Kraton ERGO comfort grip |
| Stem | Alloy, 31.8mm, S=70mm, M/L=90mm, XL=105mm |
| Crankset | Alloy crank with 48 x 38 x 28T L: S/M/L/XL=170mm |
| Bottom bracket | Cartridge bottom bracket |
| Pedals | High impact nylon |
| Front derailleur | Shimano TX-800 top pull for 31.8mm |
| Rear derailleur | Shimano TY-300 7 speed |
| Shifters | Shimano EF-41 Ez Fire 21 speed |
| Cassette / freewheel | Shimano 7 speed 14-28T freewheel |
| Chain | KMC Z-51 |
| Brakes | Alloy linear pull brakes |
| Wheels | 700c Weinmann X-M1 double wall alloy rims. 32 hole A/V, alloy quick release hubs with double seal system. Stainless spokes |
| Tyres | Kenda Urban Sport 700 x 38c wire bead |
| Saddle | Apollo Ergotech dual density saddle |
| Seatpost / clamp | Alloy 27.2mm micro adjust |
| SKU | APO-P-TRACE-10 |
| Brand | Apollo |
| Shipping Weight | 17.0000kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.800m |
| Shipping Length | 1.450m |
