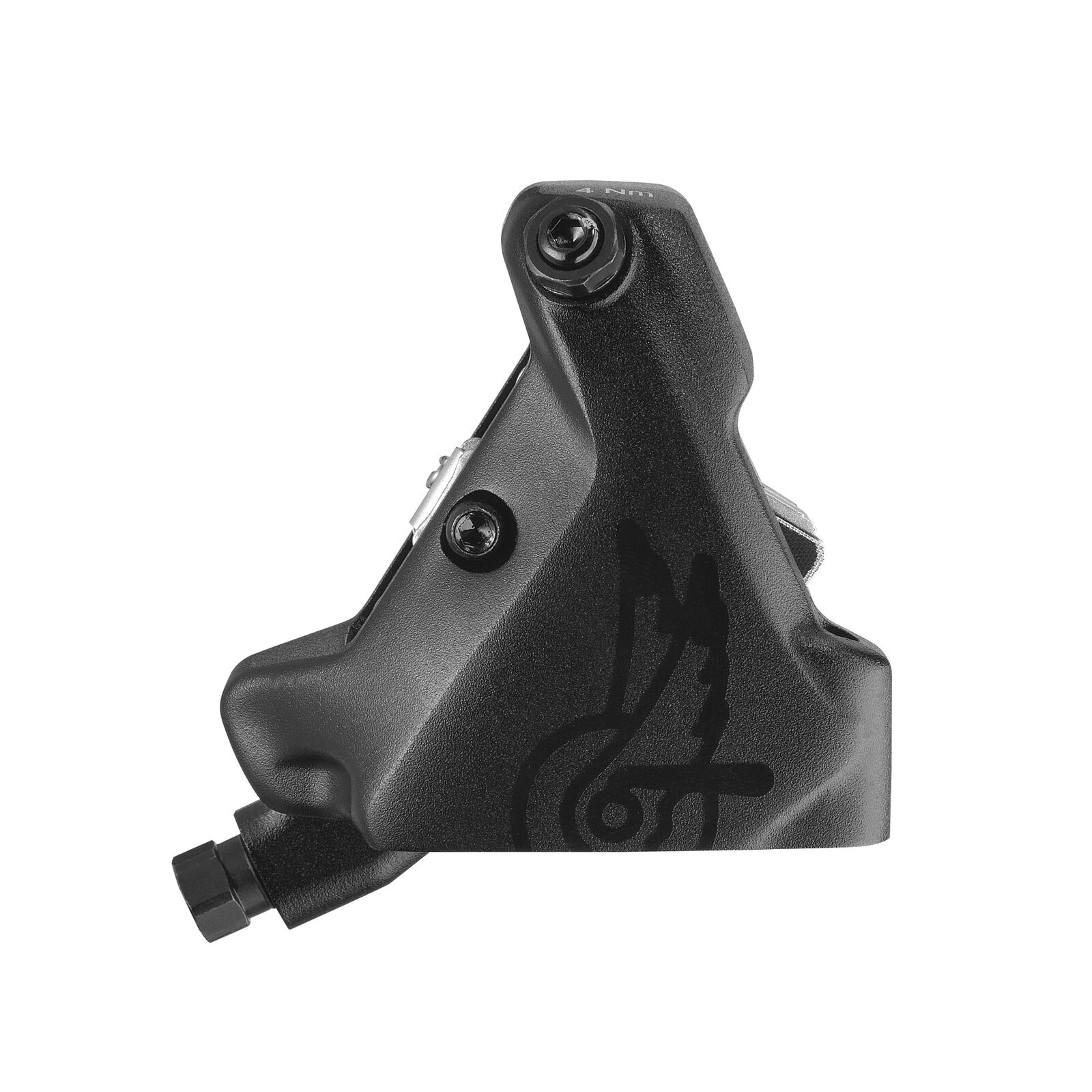

The Record 13 caliper delivers the powerful, progressive and smooth braking of Campagnolo's 13-speed platform, here as a 140mm front kit supplied with hose, mineral oil, front flat-mount adaptor. Record 13 uses the same caliper body as Super Record 13, finished in matte with a tone-on-tone winged-wheel logo.

Highlights

• 22 mm pistons: braking power with thermal insulation
• Forged aluminium body
• Optimised pad return system for drag-free release
• Wide pad friction surface to dissipate heat and reduce glazing
• Supplied with hose, mineral oil, front flat-mount adaptor

Fitting this caliper

A 140 mm caliper for the front, supplied with the front flat-mount adaptor. On a standard 70 mm flat-mount fork the adaptor is fitted in its 140 position for a 140 mm rotor, or its 160 position for a 160 mm rotor.

Pads

Organic pads come standard; Campagnolo's sintered pads are the option for wet weather and low temperatures. Both have sound-absorbing plates and wear indicators.

Compatibility & fit

Part of Campagnolo's Record 13 platform (wireless 13-speed). Flat-mount frames and forks only, 140 or 160 mm rotors (Campagnolo makes no 180 mm rotor). Mineral oil only. Campagnolo's weight limits: 140 mm rotors for riders up to 82 kg (90 kg rider + bike + accessories); 160 mm rotors up to 109 kg (120 kg total).

Fitting, hose cutting and bleeding Campagnolo hydraulic brakes are separate workshop services and are not included in the price. Tune Cycles' workshop can set up and bleed your Campagnolo disc brakes.
