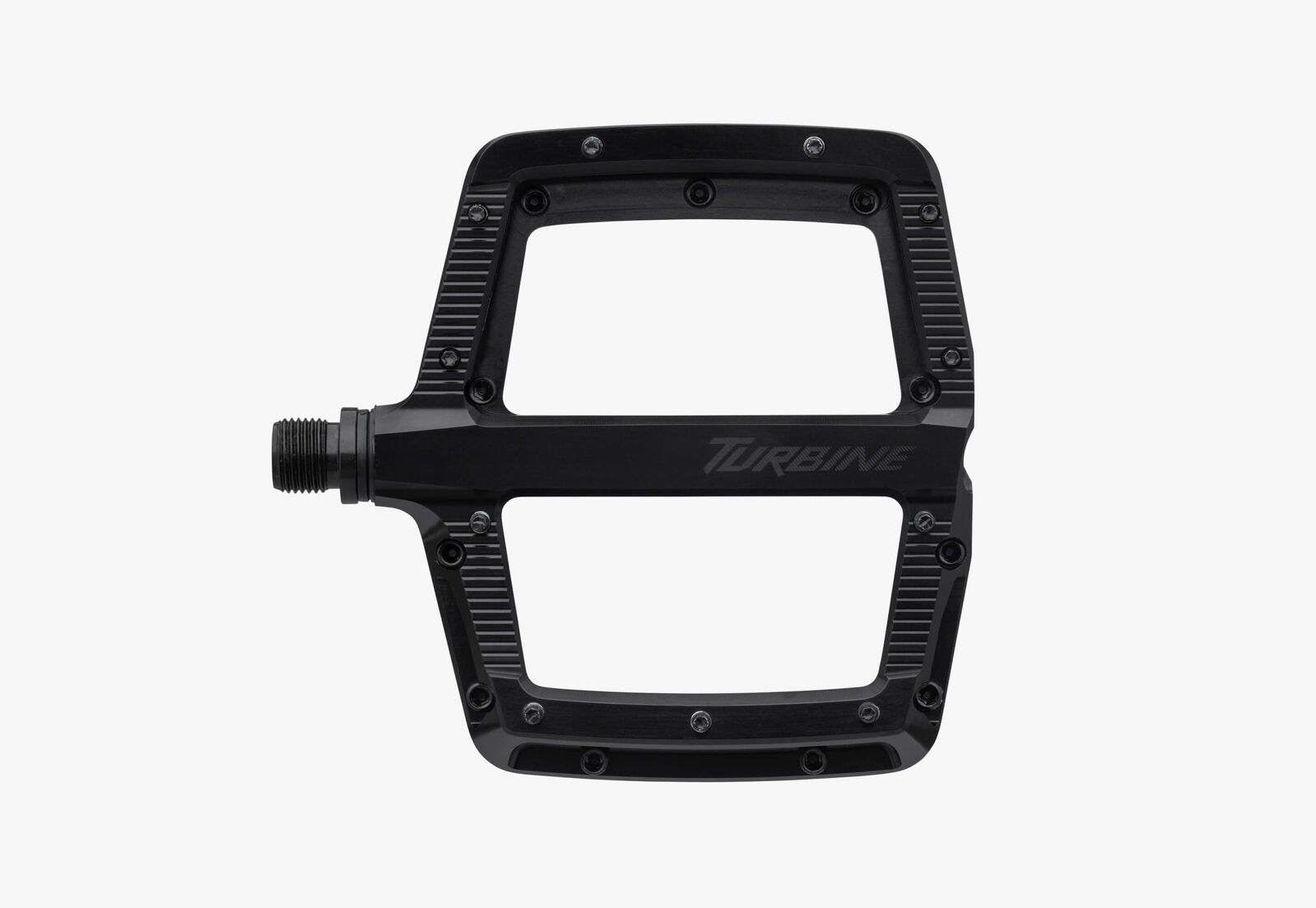

Turbine is the most concave flat pedal Race Face makes. The platform dishes front to back and inboard to outboard, cradling your foot in a pocket so you can climb, descend and tackle demanding terrain with a locked-in feel when grip is everything.

Highlights

• 3mm of concavity in every direction
• Asymmetric platform, wider at the front than the back, following the shape of your foot
• 11 height-adjustable steel pins per side, standing 6mm from the platform
• Bushing inboard, bearing outboard: no bearing bump next to the crank
• 20mm platform thickness at the edge
• 6061 aluminium body, chromoly steel axle, 419g per set
• Includes 4 spare pins and 44 pin washers

Grip in every plane

Turbine's asymmetric platform follows the anatomical shape of a foot, giving maximum support and pin contact. Race Face says the shape also offers slightly better clearance and a better chance of deflecting off ground objects.

A bigger effective platform

Simple, well-proven internals, with a bushing on the inboard side and a bearing on the outboard side, do away with the bearing bump usually found next to the crank threads. You get a larger effective platform and can place your feet closer to the cranks for better pedalling ergonomics. Race Face offers a Turbine pedal rebuild kit for servicing.

Tune your grip

Each set comes with 4 spare pins and 44 pin washers. The washers shorten the pins by 0.8mm, so you can back the grip off if you like to move your feet more.

Compatibility & fit

Turbine is a flat pedal, made to be ridden with flat-pedal shoes. If you'd like us to fit them, pedal fitting is a separate workshop service.

Sizes & options

One size; choose your colour. Every colour shares the same specification.
