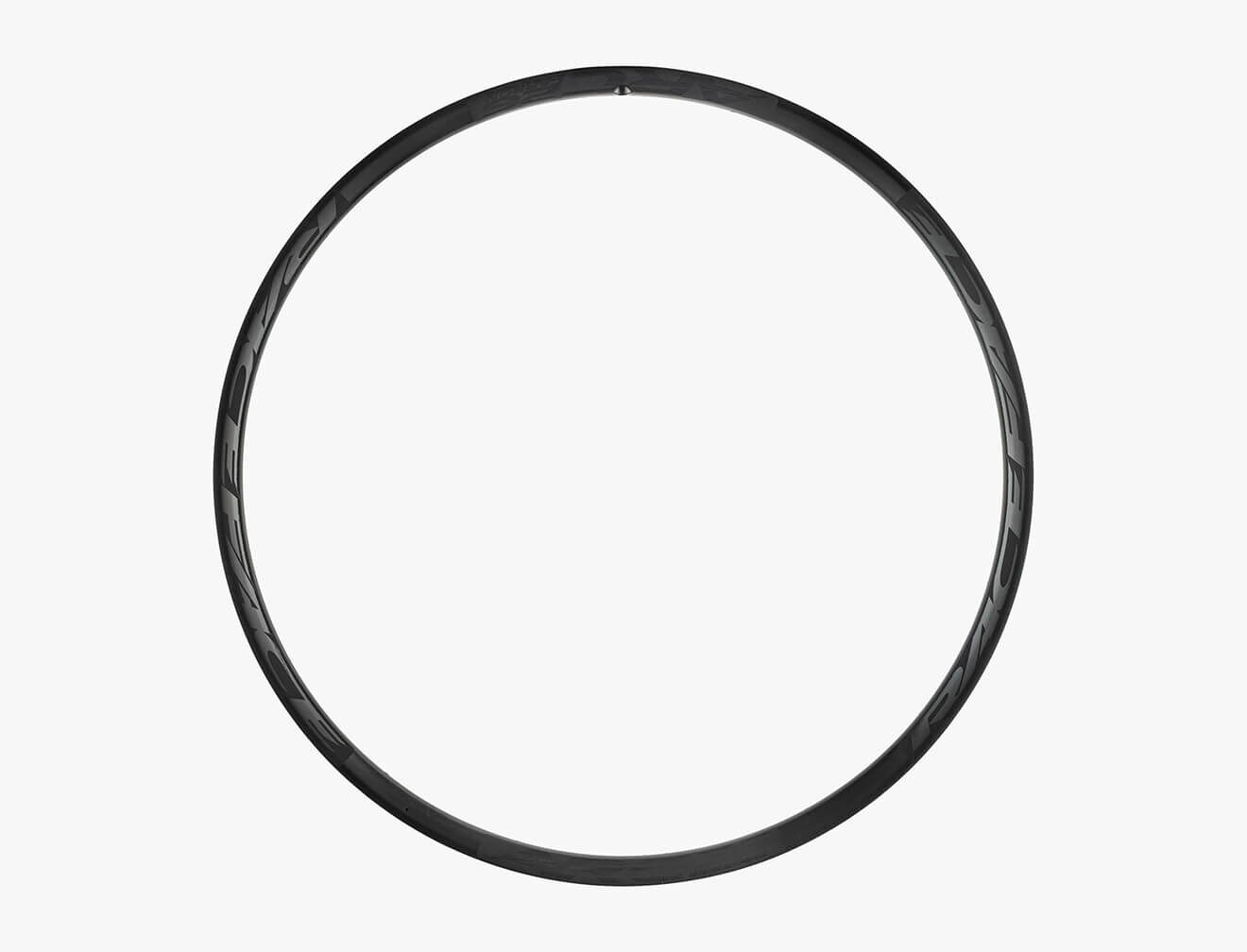

ARC Carbon is Race Face's versatile carbon rim: a unidirectional carbon layup tuned for lightness, stiffness and durability, with width options that cover XC and trail riding through to all-mountain and enduro.

Highlights

• Unidirectional (UD) carbon layup
• Tubeless ready, with a bead design for secure tyre retention
• 26mm, 31mm, 36mm internal widths
• 28 or 32 spoke holes
• 24mm rim height
• 4.5mm offset spoke bed on the 31mm and 36mm widths

The right material for the job

Race Face picked a unidirectional carbon layup for the right balance of weight, stiffness and toughness. The rim is tubeless ready and its bead design holds the tyre securely, whatever you're riding.

Pick your width

Race Face offers ARC Carbon in several internal widths to cover everything from XC to enduro, so pick the width that suits your tyres and riding. On the 31mm and 36mm rims the spoke bed is offset 4.5mm.

Compatibility & fit

For 29in wheels. Match the hole count to your hub: Race Face Vault hubs, for example, need a rim with the same hole count. Our Sydney workshop can build this rim into a custom wheel; wheel building is a separate workshop service and isn't included.

Sizes & options

Choose internal width and hole count. Offset and external width are Race Face's published figures; where Race Face doesn't publish a figure for a width, the table says so.
