The bottom bracket for Praxis's M30 cranks, with a 30mm drive-side bearing and a 28mm non-drive bearing to match the M30 alloy spindle. Praxis makes it for most current shell standards, in steel or ceramic.

Highlights

  • For Praxis M30 cranks, plus the Infocrank, Box BMX and Oval M30 cranks Praxis lists
  • 30mm drive / 28mm non-drive sealed cartridge bearings
  • Drive-side wave washer sets bearing preload
  • BSA, T47 external, internal and asymmetric, BB30/PF30, BB86/90/92, BBright and 386EVO versions
  • Steel bearings, or Grade 5 / ABEC 5 ceramic on most shells
  • Rebuildable with Praxis's M30 bearing kit (except the BB86/90/92 version)

Threaded, collet or press-fit

BSA and T47 versions thread in with a single Praxis M30 tool and are tightened to 40Nm. The BB30/PF30 and BBright versions use Praxis's expanding collet: the cups thread together through the shell and a rubber collet expands inside it, so fitting takes a press and two M30 tools. The 386EVO and BB86/90/92 versions are straight press-fits that need a press to fit and a cup or bearing remover to take out.

Options

ShellBearingsFrameInstall tools
BSA 68/73/83mmSteelBSA threaded: 68mm road, 68/73mm MTB, 83mm DH; black cups; cup spacers for 68mm MTBOne Praxis M30 tool
BSA 68/73/83mmCeramicAs above (black cups), ceramic bearingsOne Praxis M30 tool
T47 External 68/73mmSteelT47 external-bearing: 68mm road or 73mm MTB (not 68mm MTB)One Praxis M30 tool
T47 External 68/73mmCeramicAs above, ceramic bearingsOne Praxis M30 tool
T47 Internal 85.5mmSteelT47 internal-bearing road frames, 85.5mmOne Praxis M30 tool
T47 AsymmetricSteelT47 asymmetric: 76.75mm road/gravel or 81.25mm MTBOne Praxis M30 tool

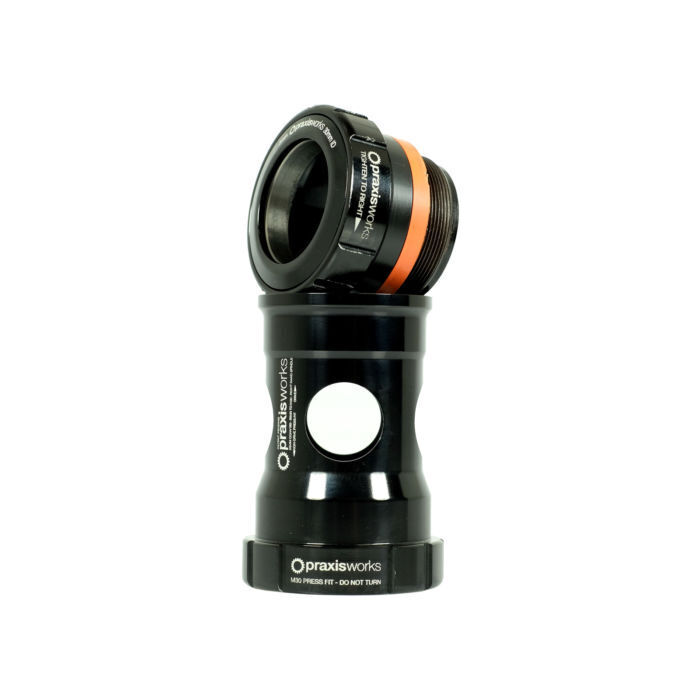

BB30/PF30 68mm RoadSteelBB30 (42mm) or PF30 (46mm) road, 68mm; road cranks only; expanding colletPress, plus two Praxis M30 tools
BB30/PF30 68mm RoadCeramicAs above, ceramic bearingsPress, plus two Praxis M30 tools
BB30/PF30 73mm MTBSteelBB30 (42mm) or PF30 (46mm) MTB, 73mm; MTB cranks only; expanding colletPress, plus two Praxis M30 tools

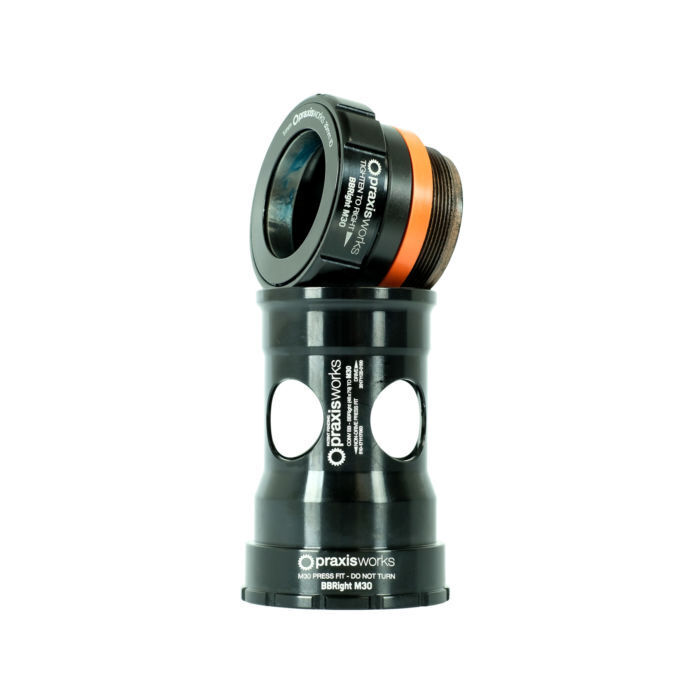

BBrightSteelBBright road frames (79mm wide, 46mm bore); road cranks only; expanding colletPress, plus two Praxis M30 tools
BBrightCeramicAs above, ceramic bearingsPress, plus two Praxis M30 tools
386EVOSteelPF 386EVO road frames (86.5mm wide, 46mm bore); press-fitPress; cup remover
386EVOCeramicAs above, ceramic bearingsPress; cup remover
BB86/90/92Steel41mm press-fit: BB86 road (86.5mm), BB90 (89.5mm) and BB92 (92mm) MTB; Praxis also lists BB104.5 and BB107 DH; inner protective sleeve for BB86/90/92 setupsBearing press; bearing remover
BB86/90/92CeramicAs above, ceramic bearingsBearing press; bearing remover

Compatibility & fit

For M30 spindles only: Praxis M30 cranks such as the Zayante Carbon, Alba, Cadet, Girder, Zane and DH-9, plus Infocrank M30, Box BMX M30 and Oval M30 cranks. Praxis's M30 THRU cranks (Doon, Lyft) take the 30/30mm M30 THRU bottom bracket instead. Praxis notes the Infocrank M30 won't fit the 386EVO version because of its arm shape. The 68mm BB30/PF30, BBright, 386EVO and BB86 versions are for road cranks, and the 73mm BB30/PF30, BB90 and BB92 are for MTB cranks. Collet versions need a shell clear of internal cable guides or screws. Fitting is a separate workshop service: the Tune Cycles workshop can measure your frame and fit the right version.

Praxis warrants its bottom brackets to be free from defects in materials or workmanship for two years from the original purchase date, to the original owner with proof of purchase. Praxis treats bearings as a wear item: its steel sealed cartridge bearings carry no separate bearing warranty, and its ceramic sealed cartridge bearings carry a one-year Enduro warranty against defects. Normal wear (bearings, seals, anodising), damage from incorrect installation or the wrong installation or removal tools, crash, impact, abuse and any modification are not covered. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with Praxis's Australian distributor.
  • For Praxis M30 (30/28mm) crank spindles
  • 15 shell and bearing combinations
  • Steel or Grade 5 ceramic bearings
  • Wave-washer bearing preload
  • Forged and machined alloy cups on threaded and collet versions
  • Bearings rebuildable on most versions
BrandPraxis
SpindlePraxis M30: 30mm drive / 28mm non-drive
Crank fitPraxis M30 cranks; Infocrank M30 (not the 386EVO version); Box BMX M30; Oval M30
BearingsSealed cartridge, steel or ceramic (Grade 5 / ABEC 5)
PreloadDrive-side wave washer
CupsForged and machined heat-treated alloy (BSA, T47, BB30/PF30, BBright); injection-moulded (386EVO); precision-ground steel with integrated bearing (BB86/90/92)
Threaded cup torque40Nm
Average weight100g BSA and T47; 130g BB30/PF30 and BBright; 104g 386EVO; 65g BB86/90/92
OptionsShell: BSA 68/73/83mm, T47 External 68/73mm, T47 Internal 85.5mm, T47 Asymmetric, BB30/PF30 68mm Road, BB30/PF30 73mm MTB, BBright, 386EVO, BB86/90/92. Bearings: Steel, Ceramic
SKU DSG-PXM30BB
