For cranks with a 24mm steel spindle that steps down to 22mm on the non-drive side: Praxis M24, SRAM GXP and Oval M24. Praxis makes it in threaded, press-fit and BB30/PF30 conversion versions.

Highlights

  • 24mm drive / 22mm non-drive sealed steel cartridge bearings
  • Drive-side wave washer sets bearing preload
  • Fits Praxis M24, SRAM GXP and Oval M24 steel-spindle cranks
  • BSA threaded, BB86/90/92 press-fit, and BB30/PF30 68mm road or 73mm MTB versions
  • BB30/PF30 versions use Enduro 2437 drive / 2237ER non-drive bearings and the Praxis expanding collet

Tools by version

The BSA version takes a standard outboard-cup tool with 16 external notches and a 44mm ID (Praxis cites the Park BBT-19.2) and is tightened to 40Nm. The BB30/PF30 versions need a press plus two of those 16-notch tools. The BB86/90/92 version has Delrin cups pressed in with a standard BB press (Praxis cites the Park HHP-3).

Options

ShellFrameInstall toolsAvg. weight (Praxis)
BSA 68/73mmBSA threaded: 68mm road or 68/73mm MTB; cup spacers for 68mm MTBOne outboard-cup tool with 16 external notches, 44mm ID100g
BB86/90/9241mm press-fit, Delrin cups: BB86 road (86.5mm), BB90 (89.5mm) and BB92 (92mm) MTBBearing press100g

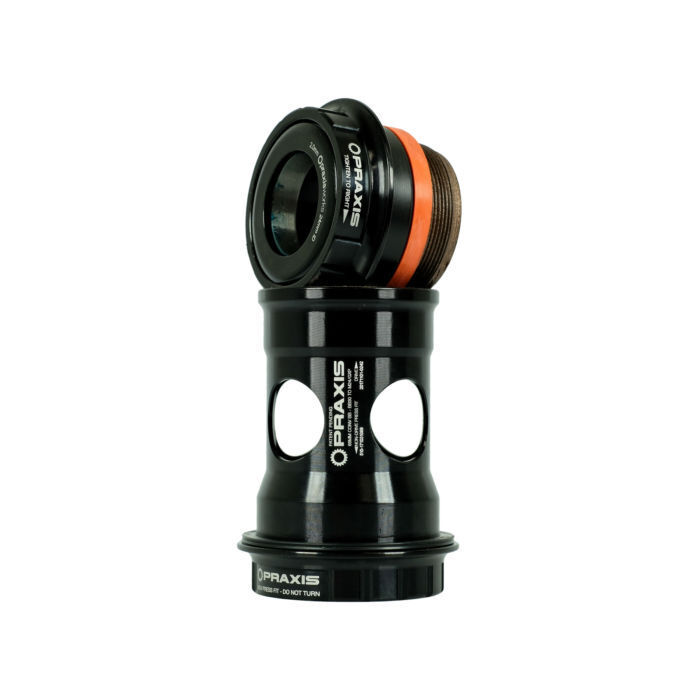

BB30/PF30 68mm RoadBB30 or PF30 road, 68mm; road cranks only; expanding collet; sleeve included for PF30Press, plus two 16-notch, 44mm tools149g with sleeve
BB30/PF30 73mm MTBBB30 or PF30 MTB, 73mm; MTB cranks only; expanding collet; not Cannondale BB30a/PF30aPress, plus two 16-notch, 44mm tools145g

Compatibility & fit

For M24/GXP steel spindles only (24mm drive, 22mm non-drive). They won't take Shimano Hollowtech II, SRAM DUB or 30mm spindles. BB86 and the 68mm BB30/PF30 are for road cranks; BB90/92 and the 73mm BB30/PF30 are for MTB cranks. Praxis notes the 73mm BB30/PF30 version isn't compatible with Cannondale BB30a or PF30a frames, and collet versions need a shell clear of internal cable guides or screws. Fitting is a separate workshop service, and the Tune Cycles workshop has the press and tools for each version.

Praxis warrants its bottom brackets to be free from defects in materials or workmanship for two years from the original purchase date, to the original owner with proof of purchase. Praxis treats bearings as a wear item, and its steel sealed cartridge bearings carry no separate bearing warranty. Normal wear (bearings, seals, anodising), damage from incorrect installation or the wrong installation or removal tools, crash, impact, abuse and any modification are not covered. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with Praxis's Australian distributor.
  • For Praxis M24, SRAM GXP and Oval M24 steel-spindle cranks
  • 24mm drive / 22mm non-drive bearings
  • Wave-washer bearing preload
  • BSA, BB86/90/92 and BB30/PF30 versions
  • Forged and machined alloy cups on BSA and BB30/PF30 versions
BrandPraxis
SpindleM24/GXP: 24mm drive / 22mm non-drive (steel)
Crank fitPraxis M24; SRAM GXP; Oval M24
BearingsSealed cartridge steel; Enduro 2437 drive / 2237ER non-drive on BB30/PF30 versions
PreloadDrive-side wave washer
CupsForged and machined heat-treated alloy (BSA, BB30/PF30; 7075-T6 on the 68mm road BB30/PF30); Delrin (BB86/90/92)
Threaded cup torque40Nm
Average weight100g BSA and BB86/90/92; 149g BB30/PF30 68mm (with sleeve); 145g BB30/PF30 73mm
OptionsShell: BSA 68/73mm, BB86/90/92, BB30/PF30 68mm Road, BB30/PF30 73mm MTB
SKU DSG-PXM24GXPBB
