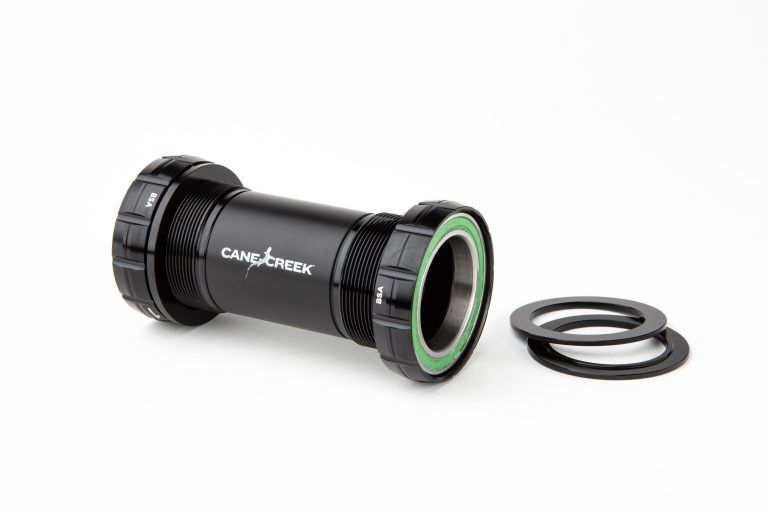

The Hellbender 70 is Cane Creek's workshop-grade bottom bracket, built around a cartridge bearing meant to outlast the frame's own bearing seats. This version threads into a standard BSA shell, the most common bottom bracket standard on road, gravel and mountain bike frames, and comes in a run of anodised colours as well as black.

Highlights

  • 440C stainless steel cartridge bearings
  • Machined aluminium cups, anodised in a choice of colours, with dual-lip seals and marine-grade grease
  • Threads into a standard BSA bottom bracket shell
  • Available for 24mm, 29mm (DUB) and 30mm crank spindles
  • Backed by Cane Creek's 1-year bottom bracket warranty

A colour for the build

Beyond black, Cane Creek anodises the BSA Hellbender 70in blue, gold, red, silver, purple, slate and smoke — cosmetic only, with no change to fit or bearing spec.

Compatibility & fit

Fits a standard BSA threaded bottom bracket shell — check this is what your frame takes, as opposed to a T47 or press-fit shell. Choose the spindle size to match your crankset: 24mm, 29mm (SRAM DUB) or 30mm (including Cane Creek eeWings). The Tune Cycles workshop can confirm your shell and spindle size and fit the bracket.

Options

OptionWhat differs
Spindle: 24mmFits 24mm crank spindles
Spindle: 29mm (DUB)Fits SRAM DUB 29mm crank spindles
Spindle: 30mmFits 30mm crank spindles, including Cane Creek eeWings
Colour: Black, Blue, Gold, Red, Silver, Purple, Slate or SmokeAnodised finish only — no difference in fit or bearing spec
Cane Creek backs the Hellbender 70 bottom bracket with a 1-year warranty against defects in materials and workmanship, covering the cups and bearings under normal use; it excludes wear and tear, incorrect fitting and user modification. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • 440C stainless steel cartridge bearings
  • Anodised aluminium cups in 8 colours
  • Dual-lip seals and marine-grade grease
  • Standard BSA threaded shell
  • Spindle options for 24mm, 29mm (DUB) and 30mm cranks
Shell standardBSA, threaded
Bearing440C stainless steel, dual-lip seal
Cup materialMachined, anodised aluminium
Spindle options24mm / 29mm (DUB) / 30mm
Colour optionsBlack, Blue, Gold, Red, Silver, Purple, Slate, Smoke
SKU DTW-CKG-BB-BAI01-PAR
Brand Cane Creek
Shipping Weight 0.2200kg
