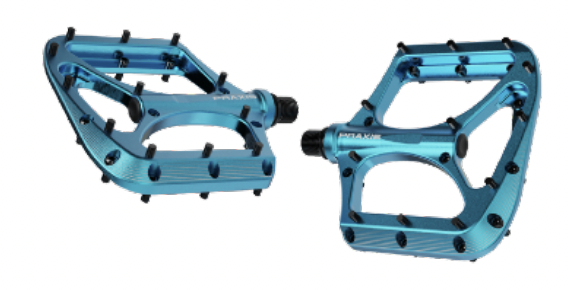

Praxis G1 Brodium MTB Flat Pedals – Aqua
SKU code: DSG-PXPD-1000D
In Stock
Praxis revived the shape of the classic Podium flat pedal, with the blessing of Gamut's founders, and updated it for today's trail riding. The Brodium is thin, concave and pinned for grip, and built to be rebuilt.
Highlights
- Forged and CNC-machined 6061-T6 alloy body, 14 mm thin, 115 × 112 mm platform
- 3 mm concave platform
- 12 stainless steel pins per side, rear-loading with M4 threads, set with pre-applied Loctite
- Forged, heat-treated 4140 chromoly axle; installs with an 8 mm hex key
- 3 sealed cartridge Enduro bearings and an Igus bushing per pedal
- Approx. 400 g a pair with steel pins
Grip you can tune
Each pedal carries 12 black stainless steel pins per side, 48 in total, loaded from the rear and set with a 3 mm hex key. Praxis includes 12 spare M4 pins and 24 spacers so you can raise or lower pin height, and any M4 grub pin also fits.
Built to be rebuilt
Three sealed cartridge Enduro bearings and an Igus bushing per pedal run on a forged, heat-treated 4140 chromoly axle. When the bearings wear, the Praxis G1 Brodium bearing and bushing rebuild kit restores a pair. The Tune workshop can fit your pedals or carry out the rebuild as separate workshop services.
Options
| Colour | What differs |
|---|---|
| Aqua | Body colour only |
| Black | Body colour only |
| Orange | Body colour only |
| Silver | Body colour only |
All four colours share the same body, axle, bearings and pins.
Compatibility & fit
Praxis says the Brodium works with both alloy and carbon cranks. Grease the threads, install with an 8 mm hex key and torque to 35–40 Nm; the left pedal is reverse-threaded and marked by a groove on the axle shoulder. Re-check the torque after about 100 km. Pedal washers aren't needed, but Praxis allows up to 2 mm per side; on carbon cranks, make sure a washer doesn't touch the carbon around the pedal insert. Compatible with most rubber crank boots. Praxis says these pedals aren't made for indoor exercise bikes.
Praxis warrants its components to be free from defects in materials and workmanship for 2 years from the original purchase date, for the original owner with proof of purchase. Normal wear and tear isn't covered, and Praxis treats bearing wear over the life of the pedal as wear. Damage from crashes, impact, incorrect installation (including using the wrong tools) or modification is also excluded.
This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with Praxis's Australian distributor.
- Low-profile 14 mm forged and CNC-machined 6061-T6 alloy body
- 3 mm concave platform, 115 × 112 mm
- 12 replaceable M4 pins per side, with spare pins and height spacers
- Heat-treated 4140 chromoly axle, 8 mm hex install
- 3 Enduro cartridge bearings and an Igus bushing per pedal
- Rebuildable with the G1 Brodium rebuild kit
| Type | MTB flat pedal |
|---|---|
| Body | Forged and CNC-machined 6061-T6 aluminium |
| Platform | 115 mm long × 112 mm wide |
| Height | 14 mm |
| Concave | 3 mm |
| Axle | Forged, heat-treated 4140 chromoly; 8 mm hex install |
| Bearings | 3 sealed cartridge Enduro bearings + 1 Igus bushing per pedal |
| Pins | 12 per side (48 total), stainless steel, rear-loading, M4 thread, 3 mm hex |
| Included extras | 12 M4 pins, 24 pin spacers |
| Install torque | 35–40 Nm |
| Weight | Approx. 400 g a pair with steel pins |
| Rebuild kit | Praxis G1 Brodium bearing/bushing kit (sold separately) |
| Options | Aqua, Black, Orange, Silver |
| SKU | DSG-PXPDIUM |
| Brand | Praxis |
