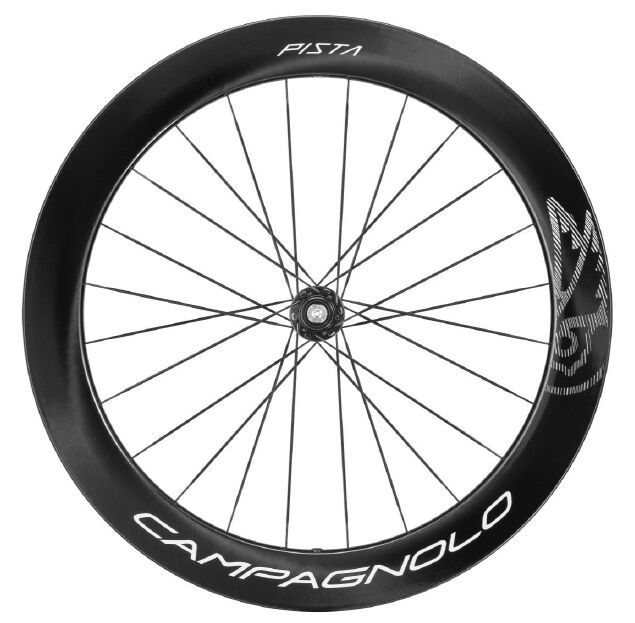

Campagnolo's Pista range brings carbon stiffness and aero efficiency to the velodrome. This rear wheel pairs a 65 mm unidirectional carbon tubular rim with a low-frontal-area hub, internal nipples and CULT ceramic bearings, with 100 mm hub spacing.

Highlights

  • 65 mm unidirectional carbon rim
  • Tubular rim, 27.4 mm wide
  • 24 aero-section spokes (12 + 12 J-bend)
  • Spoke heads and nipples hidden for aero
  • CULT ceramic bearings

Rim and spokes

The 65 mm carbon rim balances responsiveness and aerodynamics. The rim is designed for track tubular tyres, with a 27.4 mm external width as a solid base for gluing. Aero-section spokes seat inside the hub flange so the heads don't protrude, and the nipples sit inside the rim. Each wheel is hand-assembled and checked by a Campagnolo technician.

CULT bearings

CULT (Ceramic Ultimate Level Technology) bearings use high-precision ceramic balls in polymer cages on stainless steel races. By Campagnolo's figures they have a 40% lower friction coefficient than standard sealed bearings and roll five and a half times longer in tests. They don't deform or corrode and need only periodic cleaning and light lubrication with synthetic oil.

Compatibility & fit

Track rear wheel with 100 mm hub spacing. Campagnolo makes Pista wheels in two spacing pairs, 65 mm front / 100 mm rear or 100 mm front / 120 mm rear; check your frame and fork before ordering. Axle: bolt-on. Fixed-gear track use only; no brake surface or rotor mount.

Campagnolo guarantees its products for three years from the date of purchase against defects in materials and workmanship; proof of purchase is required. The warranty doesn't cover crash damage, normal wear and tear, incorrect installation, use with non-compatible parts, or consumables such as tyres and rim tape. For warranty support, return the product to Tune Cycles and we'll manage the claim with Campagnolo's Australian distributor.
  • 65 mm carbon rim, profile radius 9.5 mm
  • Tubular rim
  • 24 aero-section spokes (12 + 12 J-bend)
  • Internal nipples, recessed spoke heads
  • CULT ceramic bearings
  • 100 mm hub spacing
BrandCampagnolo
ModelPista Tubular, rear wheel
RimUnidirectional carbon, 65 mm deep, C-LUX finish, water-transfer graphics
Rim profile radius9.5 mm
TyresTubular
External width27.4 mm
Spokes24 aero-section spokes (12 + 12 J-bend), 2 mm
NipplesInternal
BearingsCULT ceramic
Hub spacing100 mm
Axlebolt-on
SKU FES-WC4535TR0A040
Brand Campagnolo
Shipping Weight 1.4000kg
Shipping Width 0.700m
Shipping Height 0.120m
Shipping Length 0.700m
