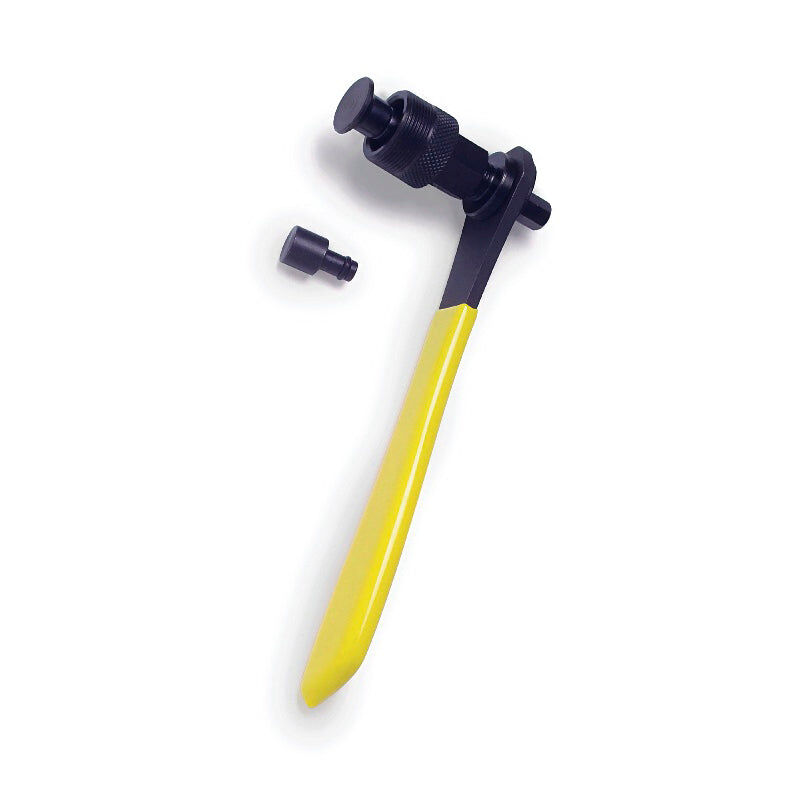

A complete crank removal kit in one package, covering square taper and splined cranks without needing separate pullers.

Highlights

  • Puller with integrated ergonomic handle
  • Inserts for both splined and square taper cranks
  • 8 mm hex for crank bolt removal (also fits 8 mm broach pedals)
  • Precision tolerances with a floating tip design for easy removal

Built for the workshop

One tool covers both crank spindle types in common use, so it replaces two separate pullers on the bench.

Compatibility & fit

Fits cranks using 22 mm x 1 threads on square taper spindles and splined Shimano Octalink and ISIS Drive spindles, excluding self-extracting systems. The 8 mm hex also suits pedals with an 8 mm broach; pair with a standard 15 mm pedal wrench for pedal removal.

Pedro's Lifetime Warranty covers this tool against breakage, malfunction or defect (normal wear excluded). For warranty support, return the product to Tune Cycles and we'll manage the claim with Pedro's Australian distributor.
  • Fits square taper and splined (Octalink/ISIS) cranks
  • Integrated handle
  • 8 mm hex for crank bolts
  • Floating tip for easy removal
Thread22 mm x 1
Spindle typesSquare taper, Octalink, ISIS Drive (non-self-extracting)
Hex size8 mm
SKU SCV-PDTL6451210
Brand Pedro's
Shipping Weight 0.4000kg
Shipping Width 0.250m
Shipping Height 0.100m
Shipping Length 0.400m
