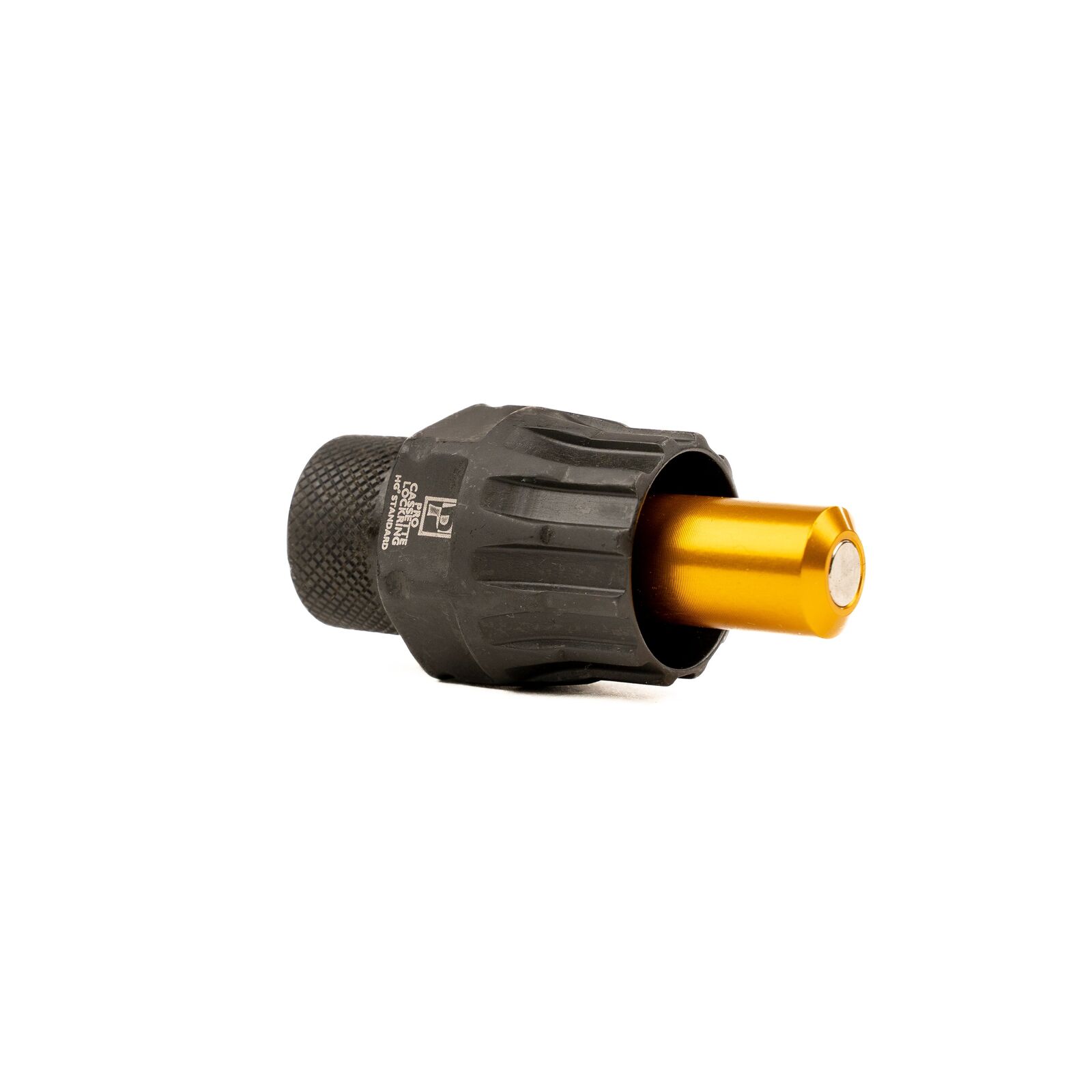

The pinned version of Pedro's Pro Cassette Lockring Socket, adding a magnetic 12 mm pin for lockrings that need a centring guide.

Highlights

  • Dual-function design: 5 mm guide pin plus a removable magnetic 12 mm pin
  • Extra-long splines for superior engagement plus quick-spin knurling
  • 3/8 in square drive for use with a torque wrench; 24 mm external drive for Pro Socket Handle and pedal wrenches
  • 19.8 mm internal diameter, 21.5 mm depth
  • Fully machined alloy tool steel, precisely heat treated

Built for the workshop

The magnetically-retained 12 mm pin pops out cleanly when not needed, so the socket still works on lockrings without a centre pin bore.

Compatibility & fit

Fits Shimano, SRAM, SunRace, SunTour, Chris King and other HG standard cassette lockrings and disc brake lockrings with 12 splines and 23.5 mm outside diameter.

Pedro's Lifetime Warranty covers this tool against breakage, malfunction or defect (normal wear excluded). For warranty support, return the product to Tune Cycles and we'll manage the claim with Pedro's Australian distributor.
  • Fits HG standard 12-spline, 23.5 mm OD lockrings
  • Dual 5mm/12mm pin design
  • 3/8 in torque wrench drive
  • 24 mm external drive
Spline count12
Outside diameter fit23.5 mm
Pins5 mm fixed, 12 mm removable magnetic
Drives3/8 in square, 24 mm external
SKU SCV-PDTL6460001
Brand Pedro's
Shipping Weight 0.5000kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.200m
