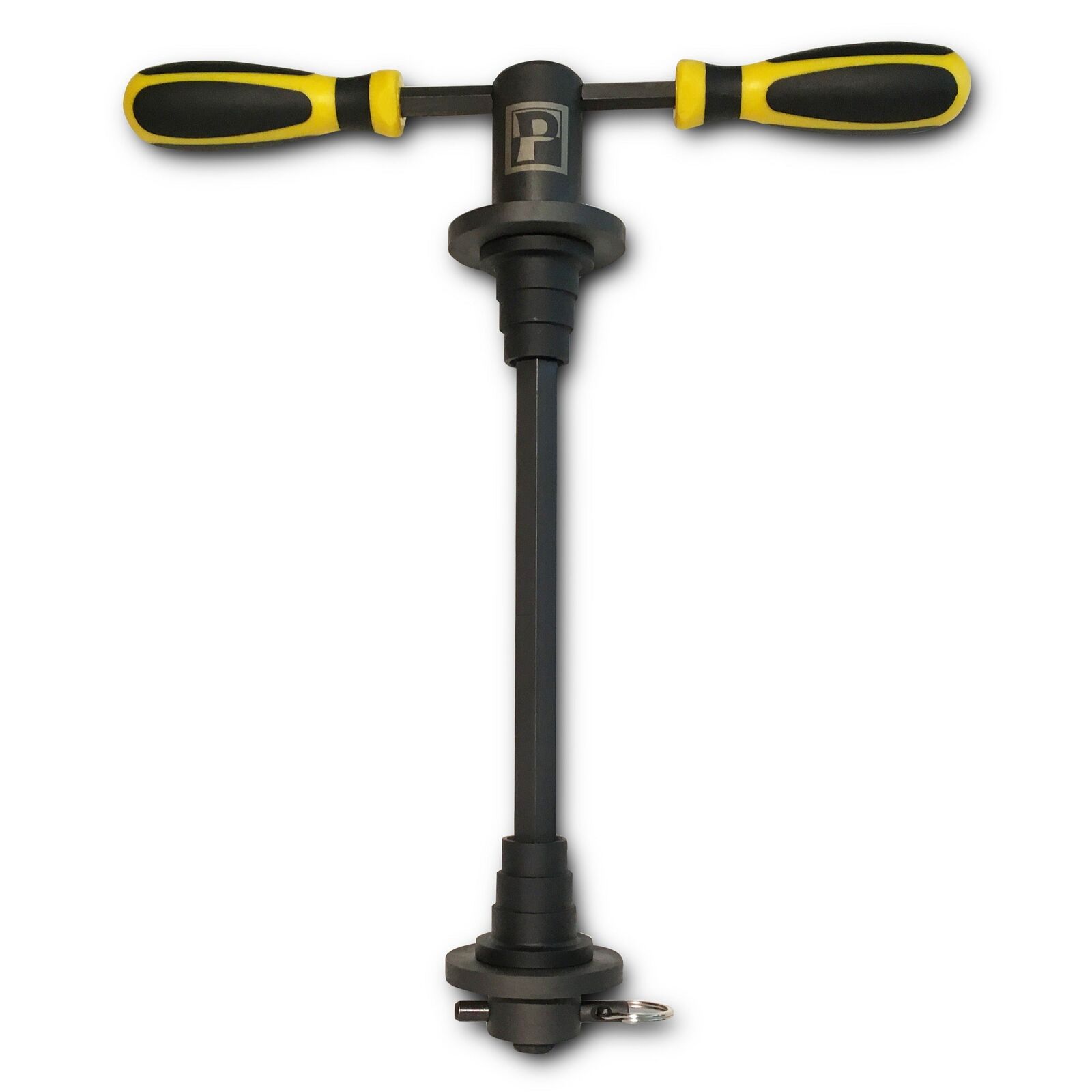

A professional-quality press for accurately installing headsets and most press-fit bottom brackets, built for shop-level precision at home.

Highlights

  • Precisely installs 1 in, 1-1/8 in, 1-1/4 in and 1.5 in headsets and most press-fit bottom brackets
  • Removable, 33cm ergonomic handles
  • Precision roller thrust bearing for smooth, low-effort pressing
  • Quick-release lower press module for fast tool positioning and removal
  • 60mm to 320mm working range
  • Two sets of adapters included: stepped cup bushings and 22mm ID shim adapters

Compatibility & fit

Designed to press 1 in, 1-1/8 in, 1-1/4 in and 1.5 in headsets, and most press-fit bottom brackets. Two Stepped Cup Bushings are sized to fit most 1 in and 1-1/8 in standard headset cups. Two 22mm ID Shim Adapters suit brand-specific cup bushings with a 22mm inside diameter. A compatible set of press-fit bottom bracket bushings is available separately.

Pedro's backs this tool with its Lifetime Warranty against breakage, malfunction or defect (normal wear excluded). For warranty support, return the product to Tune Cycles and we'll manage the claim with Pedro's Australian distributor.
  • Presses 1, 1-1/8, 1-1/4 and 1.5 in headsets
  • Also presses most press-fit bottom brackets
  • 60-320mm working range
  • Includes stepped cup bushings and 22mm ID shim adapters
Working range60-320 mm
Headset sizes1 in, 1-1/8 in, 1-1/4 in, 1.5 in
Handle length33 cm
Adapters includedstepped cup bushings, 22mm ID shim adapters
SKU SCV-PDTL6450920
Brand Pedro's
Shipping Weight 0.0500kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.300m
