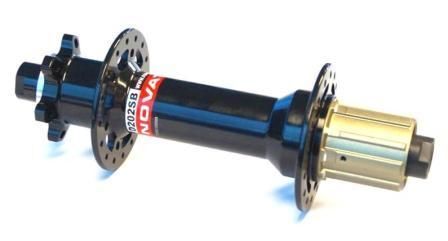

A sealed-bearing Novatec rear hub for fat bike wheel builds: QR / 10 / 12mm 4-in-1, 32 spoke holes, set up for a 6-bolt disc rotor. The freehub takes Shimano HG cassettes.

Highlights

  • QR / 10 / 12mm 4-in-1, 190mm or 195mm over-locknut
  • 6-Bolt Disc
  • 32 spoke holes
  • 4-in-1 convertible: QR x 190mm, 10 x 190mm, 12 x 190mm or 12 x 195mm
  • Steel 8 to 10-speed Shimano HG freehub body
  • Drilled for 14g J-bend spokes
  • QR skewer not included

Fit and compatibility

Check your frame or fork's axle standard and spacing, your brake rotor mount and your cassette before you order. If you're not sure, send us your bike's make, model and year and we'll confirm the fit.

Built into a wheel

Tune Cycles builds wheels by hand in Marrickville, Sydney. Buy the hub on its own, or tell us your rim and riding and we'll lace and true a complete wheel around it.

Novatec hubs are covered by Novatec's warranty against defects in materials and workmanship.

For warranty support, return the item to Tune Cycles and we'll manage the claim for you. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.

  • QR / 10 / 12mm 4-in-1, 190mm or 195mm over-locknut
  • 6-Bolt Disc
  • 32 spoke holes
  • 4-in-1 convertible: QR x 190mm, 10 x 190mm, 12 x 190mm or 12 x 195mm
  • Steel 8 to 10-speed Shimano HG freehub body
  • Drilled for 14g J-bend spokes
  • QR skewer not included
BrandNovatec
ModelD202SB-197 Fat Bike
PositionRear
AxleQR / 10 / 12mm 4-in-1
Over-locknut dimension (OLD)190mm or 195mm
Brake mount6-bolt disc
Spoke holes32H
Freehub / driverShimano HG
BearingsSealed cartridge
ShellAlloy
ColourBlack
SKU BPW-95884
Model # 95884
Brand Novatec
Shipping Weight 0.0300kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
