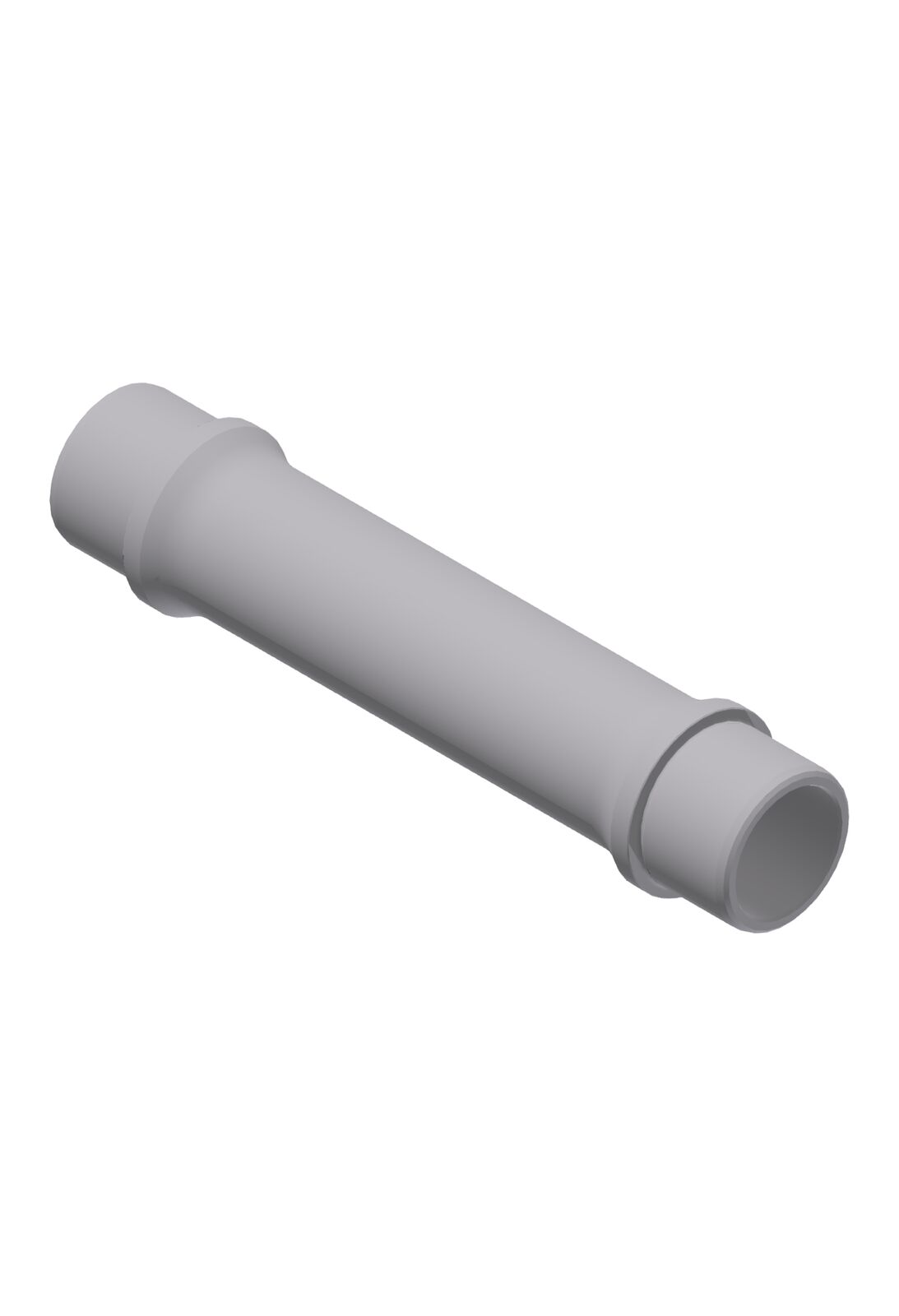

Genuine DT Swiss Axle aluminium 100mm, Ø15/58.3mm, DT part number HRCXXX00N3382S.

Front or rear: Front Wheel; Length (L): 78.3 mm; Diameter 1 (D1): 12.01 mm; Diameter 2 (D2): 15 mm; Width 1 (B1): 58.3 mm.

The DT Swiss hubs this part fits are listed under Specifications, taken from DT Swiss's spare-parts list for each hub.

DT Swiss product support for this part: HRCXXX00N3382S.

  • Genuine DT Swiss spare part — DT part no. HRCXXX00N3382S
  • Front or rear: Front Wheel
  • Length (L): 78.3 mm
  • Diameter 1 (D1): 12.01 mm
  • Diameter 2 (D2): 15 mm
  • Width 1 (B1): 58.3 mm
  • See Specifications for the DT Swiss hubs it fits
DT Swiss part no.HRCXXX00N3382S
Front or rearFront Wheel
Length (L)78.3 mm
Diameter 1 (D1)12.01 mm
Diameter 2 (D2)15 mm
Width 1 (B1)58.3 mm
Fits these DT Swiss hubs
DT Swiss 180 Front Hub 28H Straight Pull
DT Swiss DT180 DBCL 12/100 24H SP Centrelock Hub, 12mm Thru Axle, 142mm Width, Road & eBike Approved.

Per DT Swiss's spare-parts list for each hub.
