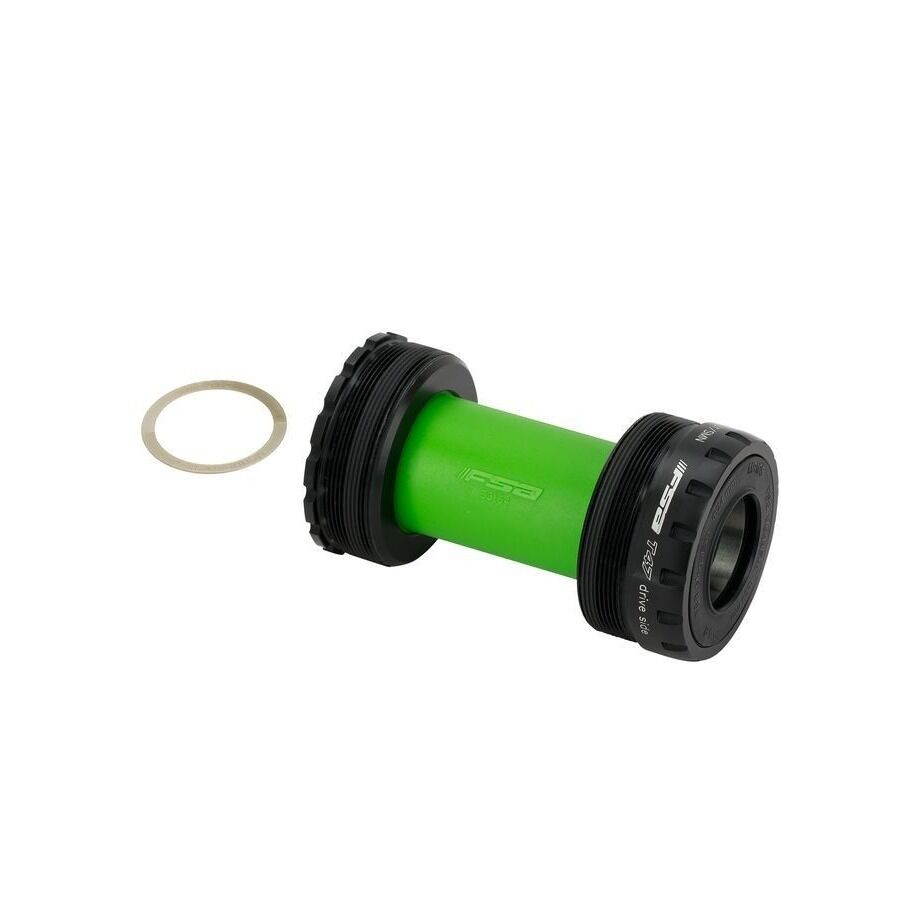

An FSA bottom bracket for a T47 asymmetric frame shell, taking a Shimano 24mm crank spindle.

Highlights

  • Frame shell: T47 asymmetric
  • Crank spindle: Shimano 24mm
  • Shell width: 76.75mm
  • Weight: 152g

Details

T47 is a large-diameter threaded shell standard. The threads make it easier to service than a press-fit, and the large shell leaves room for internal cable routing.

Fit and compatibility

It suits a T47 asymmetric frame shell and a Shimano 24mm crank spindle. Measure the shell width and check whether it's threaded or press-fit before you order. If you're changing crank standards at the same time, check that the new crank's spindle length and chainline suit the frame as well.

Fitting

Bottom brackets need the right tools and a clean, properly prepared shell, and press-fit cups must go in square. Our workshop can fit it and check the crank's preload and play at the same time.

Not sure what shell your frame has? Send us the frame model or a photo of the bottom bracket area and we'll confirm the fit before you order.

FSA warrants its products against defects in materials and workmanship for two years from the original purchase, for the original purchaser. Bearings, seals and wave washers are wear parts, so they're covered for manufacturing defects only, not wear.

For a warranty claim, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. FSA products come with guarantees that can't be excluded under the Australian Consumer Law, and this cover is in addition to those rights.

  • Frame shell: T47 asymmetric
  • Crank spindle: Shimano 24mm
  • Shell width: 76.75mm
  • Weight: 152g
Frame shellT47 asymmetric
Crank spindleShimano 24mm
Shell width76.75mm
Weight152g
SKU BPW-FSA-0316
Model # FSA-0316
Barcode # 4710243908860
Brand FSA
Shipping Weight 0.3000kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
